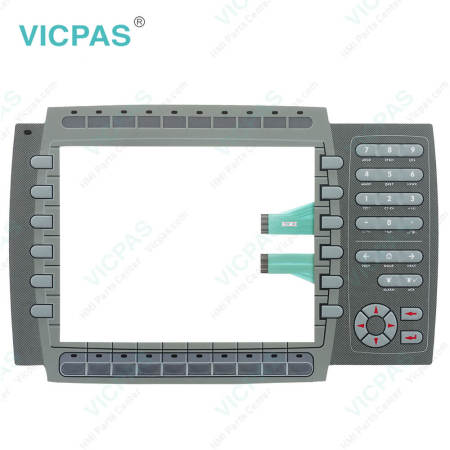

Membrane Keyboard for Beijer E1100 603221003 HMI

Membrane Keyboard for Beijer E1100 603221003 HMI

Membrane Keyboard for Beijer E1100 603221003 HMI
Membrane Keyboard for Beijer E1100 603221003 HMIMembrane Keyboard for Beijer E1100 603221003 HMI
CategoriesE1000 operator panels
BrandVICPAS
ModelBeijer E1100
BrandBeijer
Warranty180 days
Product LineE1000 Operator Panel
Size diagonal800 x 600 pixel
SupplyBeijer E1100 Membrane Keyboard
Part Number603221003
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download
Update TimeJun 13,2024
Detail Information

E1100 603221003 Beijer E1000 Series Operator Panel Membrane Keyboard Repair Replacement


E1100 603221003 Beijer E1000 Series Operator Panel Membrane Keyboard Repair Replacement

Beijer E1100 603221003 800 x 600 pixel monochrome keypad HMI Repair kit


The E1100 603221003 features:
800 x 600 pixels
TFT display
10" TFT-LCD screen
Project storage 12 MB
Operating temperature 0 to +50 °C
Ethernet and serial
22 keys / 20 LEDs

The E1000 operator panel is developed to satisfy the demands ofhuman-machine communication. Built-in functions such as displaying and controllingtext, dynamic indication, time channels, alarm and recipe handling are included.The operator panel work, for the most part, in an object-oriented way, making it easyto understand and use. The configuration operation of the panel is made in a personalcomputer, using the configuration tool E-Designer. The project is then transferredand stored in the operator panel.

VICPAS supply Beijer Exter E1100 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 603221003 Beijer E1100 HMI Parts.

Brand: Beijer
Numerical keypad: YES
Input fuse:Internal DC fuse
Warranty: 6-Months Warranty
Product Line:Beijer E1100
Size diagonal:800 x 600 pixels
Part Number: 603221003
Housing material:Powder-coated aluminium, grey
Input voltage:20 - 30 V DC
Display type: Monochrome FSTN


Beijer E1100 Operator Panel HMI Manuals PDF Download:

  • Beijer Series Maintenance Manuals
  • Beijer E1100 Operator Panel manual pdf


  • FAQ:

    Question: How to install the Beijer E1100 Operator Panel?

    Answer:1. Unpack and check the delivery. If damage is found, notify the supplier.
    2.Place the panel cut out where the operator panel is to be situated, draw along theouter sides of the holes and cut according to the markings.
    3.Secure the operator panel in position, using all the fastening holes and theprovided brackets and screws:
    4.Connect the cables in the specified order.
    5.Carefully remove the laminated film over the operator panel display, to avoidstatic electricity that could damage the panel.


    Question: Why are Beijer 603221003 membrnae keypad with the chemical resisitace?

    Answer:Beacuse Autotex F157 covers the membrane keyboard.


    Question: What is E1100 603221003 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    63221003
    60221003
    60321003
    60321003
