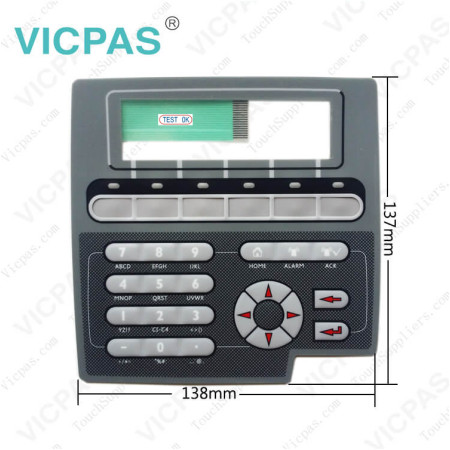

Beijer EXTER K20m 601110202 Monochrome Membrane Keypad

Beijer EXTER K20m 601110202 Monochrome Membrane Keypad

Beijer EXTER K20m 601110202 Monochrome Membrane Keypad
CategoriesEXTER Terminals HMI
ModelEXTER K20m
Warranty180 days
Product LineEXTER operator panels
Size diagonal240 x 64 pixels
SupplyBeijer EXTER K20m Membrane Switch
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Download DOCpdf icon
Update TimeJanuary 31,2023
Detail Information

Beijer EXTER K20 m 601110202 Beijer EXTER Series Membrane Keyboard Repair Replacement

EXTER K20 m 603111202 Beijer E1000 Series Operator Panel Membrane Keyboard Repair Replacement

EXTER K20 m monochrome keypad HMI membrane switch replacement

The EXTER K20 m 603111202 features:
•240 x 64 pixels
•FSTN display
•240 x 64 pixels
•Project storage 512KB
•Operating temperature 0 to +50 °C
•Serial, Enet w/Exp module
•6 keys / 6 LEDs

The EXTER panels comply with the toughest industry standards such as CE, UL and DNV. The robust and reliable panels have shallow mounting-depths to enable full control with space saving efficiency. The panels are 100% dimmable and easy to clean, with a high-pressure water-resistant IP66 front, making them perfect for installation everywhere from onboard ships and oil rigs to sterile rooms and chemically challeng- ing environments.

VICPAS supply Beijer Exter EXTER K20 m membrane switch with 6 months warranty and support Urgent Worldwide Shipping.

  Contact Best Price


The table below describes the parameters of the 603111202 Beijer EXTER K20 m HMI Parts.

Brand: Beijer
Numerical keypad: YES
Input fuse:Internal DC fuse
Warranty: 6-Months Warranty
Product Line:Beijer EXTER K20 m
Size diagonal:240 x 64 pixels
Part Number: 601110202
Housing material:Powder-coated aluminium, grey
Input voltage:20 - 30 V DC
Display type: Monochrome FSTN

Beijer EXTER K20 m Operator Panel HMI Manuals PDF Download:

  • Beijer Series Maintenance Manuals
  • Beijer EXTER K20 m Operator Panel manual pdf

  • FAQ:

    Question: How to ground the Beijer EXTER K20 m Operator Panel?

    Answer:1. The operator panel’s mounting clamps do not provide a secure grounding connectionbetween the panel and the device cabinet.
    2. Connect a 2.5 mm2 wire between the operator panel’s quick-connect plinth andthe panel chassis.
    3. Connect a 6 or 4 mm2 wire or grounding braid between the panel’s chassis andthe closest grounding point on the door.
    4. Connect a strong but short grounding braid between the door and the devicecabinet.
    5. Twist the cables onto the 24 V DC feed.
    6. A ferrite core suppresses disturbances to the 24 V feed.

    Question: Why are Beijer 603111202 membrnae keypad with the chemical resisitace?

    Answer:Beacuse Autotex F157 covers the membrane keyboard.

    Question: What is EXTER K20 m 603111202 Beijer E1000 Series Operator Panel mebrane keyboard HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
