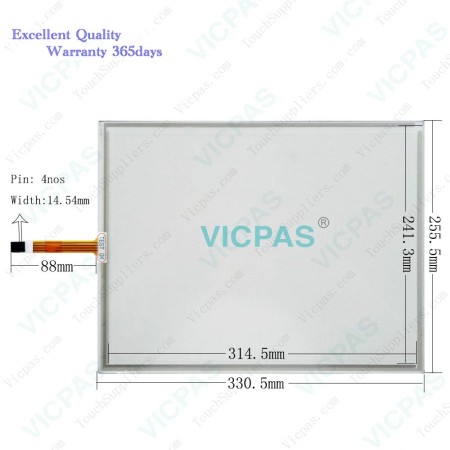

Beijer Graphic Touch HMI EXTER T150 bl 602220035 Touch Screen

Beijer Graphic Touch HMI EXTER T150 bl 602220035 Touch Screen

Beijer Graphic Touch HMI EXTER T150 bl 602220035 Touch Screen
CategoriesEXTER Terminals HMI
BrandVICPAS
ModelEXTER T150 bl
BrandBeijer
Size15 inch
Warranty365 Days
Product LineEXTER Operator Panel
Size diagonal1024 x 768 pixels
SupplyBeijer T150 Touch Screen and Overlay
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download DOCpdf icon
Update TimeJanuary 31,2023
Detail Information

Beijer HMI EXTER T150-bl 602220035 Touch Panel Repair Replacement


Beijer HMI EXTER T150-bl Touch Panel Repair Replacement

Beijer EXTER T150-bl 602220035 800 x 600 pixels pixels monochrome Touch HMI Repair kit

The features of Beijer EXTER T150-bl:
•1024 x 768 pixels
•TFT display
•15.0" TFT-LCD touch screen
•Project storage 12 MB
•Operating temperature 0 to +50 °C
•Ethernet and serial
•Black frame

The EXTER T150-bl comes in a TFT-LCD display version. All EXTER operator panels are configured with the software tool Information Designer.

VICPAS supply Beijer Exter T150-bl Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the Beijer T150-bl HMI Parts.

Brand: Beijer
Size: 10.4 INCH
Input fuse:Internal DC fuse
Warranty: 365 Days Warranty
Product Line:Beijer T150-bl
Resolution:1024 x 768 pixels
Backlight: CCFL with dimming
Part Number:602220035
Input voltage:20 - 30 V DC
Display type: TFT CCFL


Beijer T150-bl Operator Panel HMI Manuals PDF Download:

  • Beijer Series Maintenance Manuals
  • Beijer T150-bl Operator Panel manual pdf


  • FAQ:

    Question: How to ground the Beijer EXTER T150-bl Operator Panel?

    Answer:1. The operator panel’s mounting clamps do not provide a secure grounding connectionbetween the panel and the device cabinet.
    2. Connect a 2.5 mm2 wire between the operator panel’s quick-connect plinth andthe panel chassis.
    3. Connect a 6 or 4 mm2 wire or grounding braid between the panel’s chassis andthe closest grounding point on the door.
    4. Connect a strong but short grounding braid between the door and the devicecabinet.
    5. Twist the cables onto the 24 V DC feed.
    6. A ferrite core suppresses disturbances to the 24 V feed.


    Question: Why are Beijer Touch Panel with the chemical resisitace?

    Answer:Beacuse Autotex F157 covers the Touch Screen.


    Question: What is EXTER T150-bl Beijer EXTER Series Operator Panel mebrane keyboard HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
