6ES7272-0AA20-0YA0 Membrane Keypad Switch Repair
| Share | |
|---|---|
| Categories | SIMATIC TD Series |
| Trademark/Brand | VICPAS |
| Model | 6ES7272-0AA20-0YA0 |
| Warranty | 180 Days |
| Shipping | DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX |
| Related Part No. | 6ES7272-0AA20-0YA0 Membrane Keypad Switch Repair |
| Brand | Siemens Simatic |
| Line | TD200 Text Display |
| Parts | Membrane Keypad Switch Plastic Case Cover |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Download |  |
| Update Time | Dec 5,2025 |
Detail Information

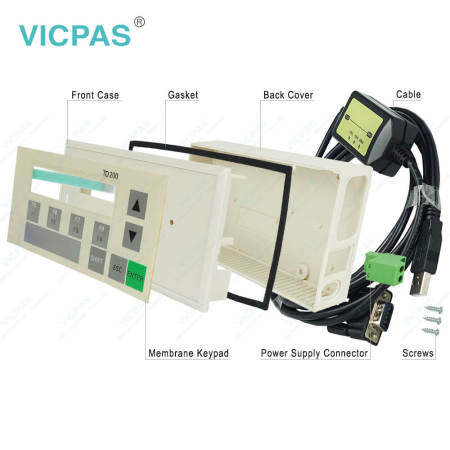

6ES7272-0AA20-0YA0 Membrane Keypad Switch, Screws, Power Supply Connector, Plastic Case Housing, Gasket, Cable Repair
Order each part separately is available
6ES7272-0AA20-0YA0 Membrane Keyboard Material: Polyester or Polycarbonate. 6ES7272-0AA20-0YA0 Keypad Membrane Artwork Format: CorelDraw, Adobe Illustrator AI or EPS, AutoCAD Dwg or DXF. 6ES7272-0AA20-0YA0 Membrane Keypad Actuation Force: Depend on customer's requirement. Normally between 30-600 grams. 6ES7272-0AA20-0YA0 Operator Panel Keypad Conductive Trace: Silver or Copper. 6ES7272-0AA20-0YA0 Touch Screen Keypad Travel: Depend on customer's requirement. Normally between 0.010" - 0.020". 6ES7272-0AA20-0YA0 Membrane Switch Life Cycle: 5 Million Cycles(up to).
Product Specification:
Size : inch;
Shipping : 2~3 Workdays
Warranty : 180 Days
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Shipping : 2~3 Workdays
Warranty : 180 Days
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Technology:
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
