6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts

6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts

6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts
6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts6AG1272-0AA30-2YA1 TD200 6ES7272-2AA00-8YA0 Parts
CategoriesSIMATIC TD Series
BrandVICPAS
Model6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0
BrandSiemens
Warranty6 Months
Product LineSiemens TD 200C
width137.5mm
height65.5mm
SupplySiemens TD200C membrane keyboard
model6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022/6/28
Detail Information

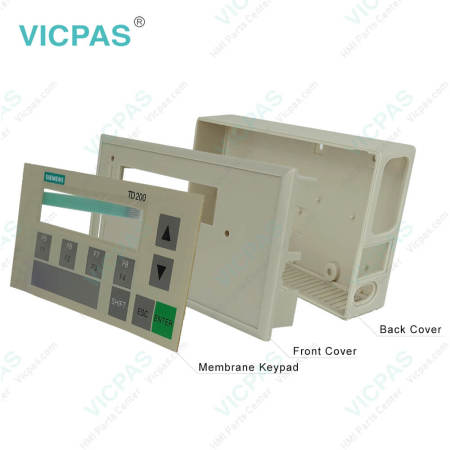

6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard Plastic Case Shell Repair Replacement


6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard Plastic Case Shell Repair Replacement
6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard Plastic Case Shell Repair Replacement

SIMATIC 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 S7, TD 200 text display for S7-200, 2-line, with cable (2.5m) and installation accessories, Configuration: with STEP 7-Micro/WIN without ATEX approval, BLANK FOR PRODUCING CUSTOMIZED FRONT LAYOUTS AMOUNT: SEE TECHNICAL DATA


The Text Display TD 200 is the optimum solution for all operating and monitoring tasks of the S7-200. The TD 200 permits interventions into the control program (e.g. to change target values) or to set inputs and outputs .

The following is a list of TD 200 features:
• 2 line LCD display (20 chars/line ASCII)
• 8 programmable keys
• 1 PPI interface (RS 485).
• Displays messages read from the S7-200 CPU.
• Allows adjustment of designated program variables.
• Provides ability to force/unforce I/O points.
• Provides ability to set the time and date for CPUs that have real-time clock
The TD 200 receives its power either from the S7-200 CPU through the TD/CPUcable or from a separate power supply.


VICPAS supply 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens TD200C membrane switch with 6 months warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens TD200 Text Display Parts.

Part Number : 6AG1272-0AA30-2YA1 / 6ES7272-2AA00-8YA0
Number of lines: 2
Character size:5 mm
Warranty: 6-Months Warranty
Product Line:Siemens TD200
Rated value (DC):24 V
Number of digital outputs: 16
System keys:YES
Keyboard fonts:US English
Number of analog outputs 2


Related Siemens Simatic TD200C Part No. :

Siemens TD200C Description Inventory status
6AG1272-1AA10-2YA1 SIPLUS S7-200 TD200C In Stock
6AG1272-0AA30-2YA0 SIPLUS S7-200 TD200 In Stock
6ES7272-1AA10-0YA1 TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES Available Now
6ES7272-1AF00-7AA0 TD200C FRONT FILM, BLANK Available Now
6ES7272-1AA10-0YA0 TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES Available Now
SIMATIC TD200C Description Inventory status

Siemens TD200C series HMI Manuals PDF Download:

  • 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 SIMATIC HMI TD200C datasheet pdf
  • Siemens Simatic TD200C series HMI operator panel keypad manual


  • FAQ:

    Question: What is the dimension of 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens TD200C membrane switch?

    Answer:It is 137.5 millimeter long and 65.5 millimeters wide.


    Question: Which software Support for Configuring a TD 200 ?

    Answer:Some programming packages include a configuration utility for entering theparameter block and messages for the TD 200. For example, version 1.2.1 ofSTEP 7-Micro/DOS uses Utility 24 for configuring the TD 200. STEP 7-Micro/WINprovides a “wizard” that makes it easy to configure the parameter block and themessages in the data memory area of the S7-200 CPU (see Chapter 2). Refer toyour programming software and its documentation to determine whether itsupports a TD 200 configuration utility.


    Question: What is the 6AG1272-0AA30-2YA1 6ES7272-2AA00-8YA0 Siemens TD200C mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
