KAWAKASI Robot 50817-0069 50817-0072 Controller Parts

KAWAKASI Robot 50817-0069 50817-0072 Controller Parts

KAWAKASI Robot 50817-0069 50817-0072 Controller Parts
KAWAKASI Robot 50817-0069 50817-0072 Controller PartsKAWAKASI Robot 50817-0069 50817-0072 Controller PartsKAWAKASI Robot 50817-0069 50817-0072 Controller PartsKAWAKASI Robot 50817-0069 50817-0072 Controller PartsKAWAKASI Robot 50817-0069 50817-0072 Controller Parts
CategoriesKawasaki Teach Pendant
BrandVICPAS
Model50817-0069 50817-0072
Warranty365 Days
Shipping2-4 workdays
BrandKawasaki Robotics
Model50817-0069 50817-0072
Supply PartsTeach Pendant Touch Screen Plastic Case Shell
Buy AccessoriesLCD Display Membrane Keypad Switch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Download DOC
Update Time2022/6/28
Detail Information

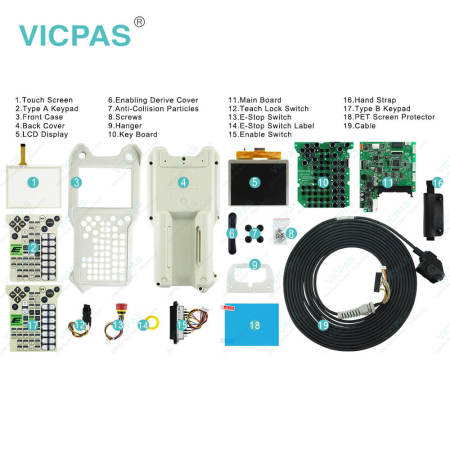

Kawasaki Robotics 50817-0069 50817-0072 membrane keypad, LCD display, touch screen and protective case shell for repair replacement

Order each part separately is available

Kawasaki Robotics 50817-0069 50817-0072 plastic enclosure repair replacement

To safeguard the user, Kawasaki 50817-0069 50817-0072 Terminal Keypad HMI Panel Glass LCD Screen Plastic Shell robot systems are equipped with many safety features, including the following:
1. All emergency stops are hard-wired.
2. All 50817-0069 50817-0072 Keypad Touch LCD Housing robot controllers are equipped with a redundant dual channel safety circuit. Both channels of the safety circuit must be closed to allow for robot operation in teach and repeat modes.
3. Safety circuits of the controllers satisfy requirements of PLe in category 4 defined by ISO 13849-1:2015. Category and Performance level (PL) are determined by the whole system and conditions.
4. (For the robot arms with servo lamp) When the servo ON lamp (located on the mechanical unit) is illuminated, servo motor power is available to the robot and motion is possible.
Kawasaki Robotics Teach Pendant 50817-0069 50817-0072 membrane keyboard keypad repair replacement
5. 50817-0069 50817-0072 Keyboard Membrane Touch Panel LCD Display Plastic Case Cover Teach pendant and operation panel are equipped with red mushroom-type E-stop switches. And all 50817-0069 50817-0072 Membrane Keypad Switch Touchscreen LCD Display Panel Plastic Cover Body robot controllers have external E-stop inputs.
6. 50817-0069 50817-0072 Operator Keypad Touch Glass LCD Panel Housing Teach pendant is equipped with three-position, enabling devices. Enabling devices must be pressed to enable motor power in teach and check modes.
7. Teach and check mode velocities are limited to a maximum of 250 mm/s (10.0 in/s).
Kawasaki Robotics 50817-0069 50817-0072 Touch Panel and LCD Display Screen repair replacement
8. Velocities are not limited to 250 mm/s (10.0 in/s) in the Fast Check Mode that satisfy requirements for ISO 10218-1:2011. 9. Optional over travel limit switches are available on JT1, JT2 and JT3 of the arm.
10. Mechanical units have over travel mechanical stop person the JT1, JT2 and JT3 (optional for JT2 and JT3) axes. Mechanical stoppers are capable of stopping the robot at full speed and with maximum payload. See the specifications of the product for details of the mechanical stoppers.
11. All robot axes are equipped with 24 VDC electromechanical brakes that engage when power is removed. If the robot loses power unexpectedly, the mechanical unit arm is held in position by the brakes.




Specifications:

The table below describes the parameters of the 50817-0069 50817-0072 teach pendant.

Part Number : 50817-0069 50817-0072
Product Line: Kawasaki Robotics
Humidity: 35-85% RH
Warranty: 1-Year Warranty
Touchscreen: colour LCD Display
Operating system: Windows CE
Language: Worldwide
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times


Related Kawasaki Robotics Teach Pendant Part No. :

KAWASAKI Parts Description Inventory status
50817-0065 Kawasaki Robotics Touch Screen Membrane Keyboard LCD Housing In Stock
50817-0066 Kawasaki Robot Touch Panel Membrane Keypad LCD Case Available Now
50817-0069 Kawasaki Teach Pendant Touch Membrane Switch LCD Shell In Stock
50817-0072 Kawasaki Robot Touch Glass Operator Keypad LCD Cover Available Now
50817-0072R00 Kawasaki Robot Touch Screen Operator Keyboard LCD Encolsure In Stock
50817-0091 Kawasaki Robot Keyboard Membrane Touch LCD Display Case In Stock
50817-0092 Kawasaki Robot Controller Touch Glass Keypad Membrane LCD Shell In Stock
50817-0094 Kawasaki Robot Pendant Touch Switch Membrane LCD Housing Available Now
50817-0096 Kawasaki Robot Panel Glass Membrane Keyboard LCD Cover Available Now
Kawasaki Teach Pendant Description Inventory status

Kawasaki Robot Controller Teach Pendant Manuals PDF Download:

  • Kawasaki Robot Controller E Series Operation Manual
  • Kawasaki E Series Controller Installation and Connection Manual

  • Common misspellings:

    50817-069 50817-0072

    50817-0069 508170072

    05817-0069 50817-0072

    50817-0069 508l7-0072

    50817-00069 50817-0072
