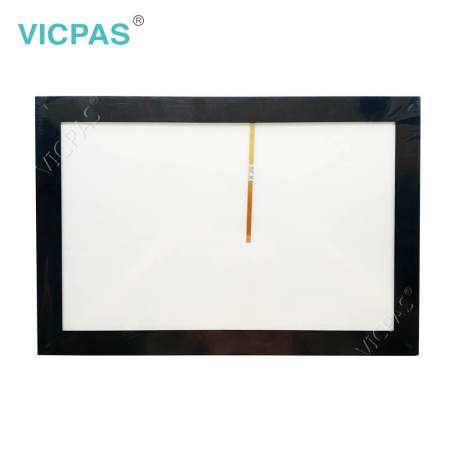

Beijer HMI iX T15B-SC 640002401 Touch Panel Replacement

Beijer HMI iX T15B-SC 640002401 Touch Panel Replacement

Beijer HMI iX T15B-SC 640002401 Touch Panel Replacement
Beijer HMI iX T15B-SC 640002401 Touch Panel ReplacementBeijer HMI iX T15B-SC 640002401 Touch Panel Replacement
CategoriesiX TxX Operator Panels
BrandVICPAS
ModeliX T15B-SC
BrandBeijer
Warranty365 Days
Product LineiX TxX
Resolution1280 × 800
SupplyBeijer iX iX T15B-SC Touchscreen
Part Number640002401
Size15.4 INCH
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022/7/7
Detail Information

Beijer HMI iX T15B-SC 640002401 Touchscreen Repair Replacement


 Beijer HMI iX T15B-SC 640002401 Touchscreen Repair Replacement

Beijer iX T15B-SC 640002401 15 INCH graphic touch HMI with iX runtime Repair kit


• 15.4" TFT-LCD touch screen
• 1280 × 800 (16:10)
• Application storage 1.4 GB
• Operating temperature -10 to +50 °C
• CE and UL508 approvals

iX TxX operator panelsRanging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high performance CPUs and the latest screen technology.

VICPAS supply Beijer iX T15B-SC Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 640002401 Beijer iX T15B-SC HMI Parts.

Brand: Beijer
Part number: 640002401
Size: 15.4 INCH
Warranty: 365 Days Warranty
Product Line: iX T15B-SC
Size diagonal: 1280 × 800 pixel
Display type: TFT-LCD
Touch type: Resistive
Input voltage: 20 - 30 V DC
Power: 12W


Beijer iX T15B-SC Touch Panel HMI Manuals PDF Download:

  • Beijer iX TxX Series Maintenance Manuals
  • Beijer iX T15B-SC HMI manual pdf

  • FAQ:

    Question: How to ground the iX TxX Series Operator Panel?

    Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
    2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
    3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
    4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.


    Question: Why the Beijer iX T15B-SC HMI have the chemical resistance?

    Answer:Autoflex EBA180L covers the overlay surrounding the screen.


    Question: What is Beijer iX T15B-SC Touchscreen and Overlay HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    64002401
    640020401
    6400024O1
    b40002401
    6400024401
