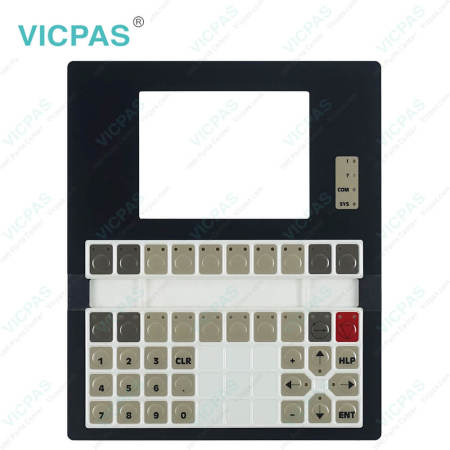

PCS 950 WIN Lauer Membrane Keypad Switch Replacement

PCS 950 WIN Lauer Membrane Keypad Switch Replacement

PCS 950 WIN Lauer Membrane Keypad Switch Replacement
PCS 950 WIN Lauer Membrane Keypad Switch ReplacementPCS 950 WIN Lauer Membrane Keypad Switch Replacement
CategoriesLauer
BrandVICPAS
ModelPCS-950 PCS-950.M PCS 950S PCS 950C PCS 950g WIN
BrandLauer
Warranty365 Days
Product LineLauer Operator Panels Series
SupplyOperator Panels PCS 950 WIN Operator Panel Keypad
Shipping2-4 workdays
Part NumberPCS 950.s WIN
Part NumberPCS 950.m WIN
Part NumberPCS 950.p WIN
Part NumberPCS 950.c WIN
Part NumberPCS 950.i WIN
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update TimeOct 9,2024
Detail Information

Systeme Lauer PCS 950.s WIN PCS 950.m WIN PCS 950.p WIN PCS 950.c WIN PCS 950.i WIN Membrane Switch


Lauer Operator Panels PCS-950 PCS-950.M PCS 950S PCS 950C PCS 950g WIN Membrane Keyboard Keypad Repair Replacement

PCS 950 WIN Operator Keyboard Machine operation using 20 freely assignable keys; these F01 to F20 labeled keys can be applied specifically inscribed and are provided to the controller as status bits. In addition, situation-related soft-key actions can be assigned to these keys.
40 freely usable LEDs: These can be assigned the indicating states »ON«, »DARK«, »FLASHING«, »INVERS FLASHING«. A green and a yellow LED is allocated to each function key.
PCS-950 PCS-950.M PCS 950S PCS 950C PCS 950g WIN Keyboard Membrane Display of background bitmaps separately for the area's status, working and soft-key.
Representation of any freely programmable characters on the PCS 950.s WIN PCS 950.m WIN PCS 950.p WIN PCS 950.c WIN PCS 950.i WIN Keypad Membrane display.
PCS 950.s WIN PCS 950.m WIN PCS 950.p WIN PCS 950.c WIN PCS 950.i WIN Switch Membrane Display of fixed texts with integrated variable values; 9 variable formats are available for representation.
Setting up of several priority levels which can be changed related to situations; This working-condition-related management significantly offloads the programmable controller program.
Representation of the contents of a maximum of 214 programmable controller words as variables; In addition, 55 internal (predefined) variables are available.
Modification of the contents of any word within the transfer area; separate editors are available for every variable format.
Monitoring of rising or falling edges of a maximum of 1024 consecutive bits; The assignment of texts, the management of 3 priority levels (information, warnings and faults) keeping the timely sequence as much as possible, organization of the FIRST MESSAGE, LAST MESSAGE, the individually settable clearing behavior are tasks which are managed by the PCS 950 by itself.
Logging of messages with the CAME, WENT and ACKNOWLEDGED times is made by the PCS 950 WIN Membrane Keyboard PCS 950 itself. A logging memory is available for displayable (HISTORY) as well as for printable (MESSAGE PRINTER) texts.
Printing of shift-related or order-related pages with any integrated internal or external variables.
Communication monitoring (wire-break, short circuit); A very efficient data transfer is secured by the integrated priority management in connection with the intelligent package length optimization, the high thruput rate and the fault tolerance.
8 timers with 8 daily repeating on-the-second ON/OFF switching points which can be freely edited as internal variables.
9 password levels enable differentiated access to operating texts and recipes. A 4-digit code number can be set up for each password level in this way, your PCS 950 WIN Terminal Keypad equipment can be protected against unauthorized operation.
 Using the Recipe Manager 255 recipe blocks can be created with 255 forms each Recipe management is possible via PCS-950 PCS-950.M PCS 950S PCS 950C PCS 950g WIN PCS dialogs or under programmable controller control. Thus, the PCS relieves the programmable controller of product-related storage of equipment parameters




Specifications:

The table below describes the parameters of the Lauer Operator Panels PCS 950 WIN Keypad Membrane HMI Parts.

Brand: LAUER
Front Material: Aluminium black anodized
Product Line: Operator Panels
Resolution: 320 x 240 pixels
Warranty: 12 Months Warranty
Ambient Temperature: 10 to 90% RH
Backlight: CFL
Operation Temperature: 0 … 50° C
Power Supply: 24 V DC
Storage Temperature: -20 to 60 °C (-4 to 140 °F)


Related Lauer Operator Panels Series HMI Part No. :

LAUER Operator Panels Description Inventory status
PCS-100 LAUER Operator Panels Membrane Keypad Switch In Stock
PCS-100-FZ Lauer Operator Panels Series Membrane Keyboard Keypad Repair In Stock
PCS-10TVD-000 Lauer Operator Panel Series Switch Membrane Repair Available Now
PCS-10TVD-100 LAUER Operator Panels Membrane Keyboard Keypad Available Now
PCS-110,FZ LAUER Operator Panels Series Operator Panel Keypad In Stock
PCS-200,FZ Lauer Operator Panel Series Terminal Keypad Replacement In Stock
PCS-300 Lauer Operator Panel Series HMI Membrane Keyboard Available Now
PCS-595.M LAUER Operator Panels Series Keypad Membrane Repair In Stock
PCS-595.P LAUER Operator Panels Series HMI Membrane Keypad Available Now
PCS-600 Lauer Operator Panel Series Keyboard Membrane Repair In Stock
Systeme Lauer Repair Description Inventory status


Systeme Lauer Text displays & Operator Panels Manuals PDF Download:

  • Lauer PCS 9000 PCS 9100 Manual & Practice
  • PCS 009, PCS 090, PCS 095, PCS 095.1, PCS
  • PCS 009 Manual
  • PCS 091 Manual
  • PCS 091 Manual
  • PCS 95x Manual
  • PCS 590 Manual
  • PCS 950 Manual
  • PCS095 Manual
  • PCS095.P-PCS-OPERATOR-PANEL-LAUER-MANUAL
  • PCS891-KEYPAD-PANEL-LAUER-MANUAL
  • PCS900-OPERATOR-PANEL-WALDNER-WP900-LAUER-MANUAL
  • Product Catalog 2006

  • FAQ:

    Question: What is Lauer Operator Panels PCS-950 PCS-950.M PCS 950S PCS 950C PCS 950g WIN Membrane Keypad HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    PS 950 WIN
    PCS 950 IN
    PSC 950 WIN
    PCS 95o WIN
    PCS 950 WWIN
