6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad

6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad

6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad
6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad6AV6641-0CA01-0AX0 OP77B Membrane keyboard keypad
CategoriesSimatic OP7 OP77A/B OP 73
BrandVICPAS
Model6AV6 641-0CA01-0AX0
Warranty180 Days VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS
BrandSiemens OP77b
Models6AV6 641-0CA01-0AX0
Product LineSiemens Operator Panel
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update TimeMar 29,2024
Detail Information

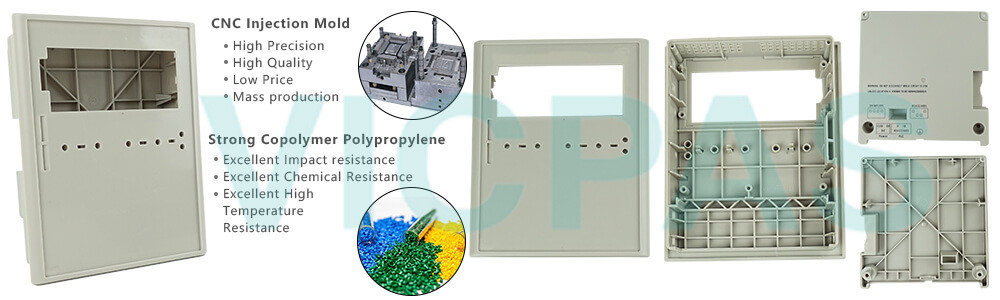

6AV6641-0CA01-0AX0 OP77B Siemens Operator Panel Membrane Keyboard, Mounting Clips, Screws, Power Supply Connector, Gasket and Plastic Shell Case Replacement

Order each part separately is available

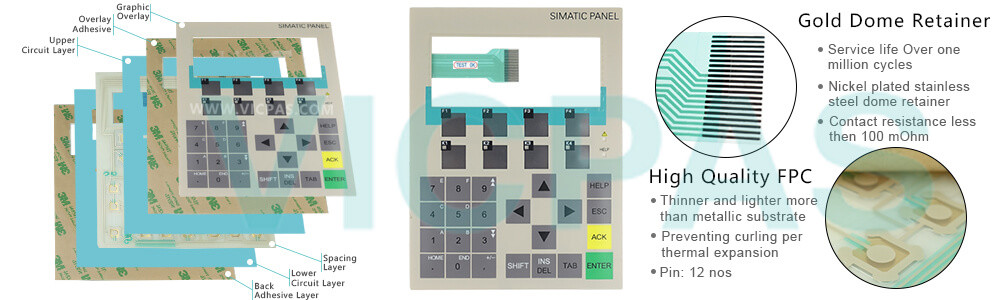

6AV6641-0CA01-0AX0 OP77B Siemens Operator Panel Keyboard, Screws, Power Supply Connector, Mounting Clips, Gasket and Plastic Shell Case membrane keypad switch Replacement

The 6AV6 641-0CA01-0AX0 operator panel is belong the Siemens OP77b operator panel series, it is small and smart. VICPAS provides the new keypad switch and case to replace the Simatic OP77b keypad, Gasket, Power Supply Connector, Screws, Mounting Clips and cover, which is supported 180 days VICPAS warranty.


The Siemens OP77B 6AV6641-0CA01-0AX0 was designed as a low-cost operator control with rugged keys for small-scale HMI tasks. 4.5" monochrome STN liquid crystal display (LCD) with membrane keypad & MPI/Profibus-DP interface (12MB). The front of op7 is resistant to various oils, greases and standard detergents. Plug-type terminals for connection of a 24 V DC power supply. RS 485 interface for process links (MPI, PROFIBUS DP up to 1.5 Mbit/s) and for downloading the configuration.




Specifications:

The table below describes the parameters of the Siemens OP77B 6AV6641-0CA01-0AX0 Operator Panel  keypad and case.

Part Number : 6AV6641-0CA01-0AX0
Product Line: Siemens Simatic OP77B
Product's Size: 4.5 inches
Warranty: 180 Days Warranty
Material: Polyester or Polycarbonate
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
Conductive Trace: Silver or Copper
Life Cycle: 5 Million Cycles(up to)

Related Siemens Simatic OP77 Part No. :

Siemens OP77a OP77b HMI Description Inventory status
6AV6641-0CA01-0AX0 SIMATIC OPERATOR PANEL OP77B Keypad and Case Shell In Stock
6AV6641-0CA01-0AX1 OPERATOR PANEL OP77B (2C) Keyboard and Plastic Case Shell In Stock
6AV6641-0BA11-0AX1 SIMATIC OPERATOR PANEL OP77A Keypad and Case Shell Cover In Stock
6AV6641-0BA11-0AX0 Siemens OP77a Membrane Keypad and Front Case Shell Available Now
6AG1641-0CA01-4AX1 SIPLUS HMI OP77B Membrane Keyboard and Case Shell In Stock
6AG1641-0CA01-4AX0 SIPLUS OP77B Siemens Keypad and Case Shell Cover In Stock
6AV6651-1CA01-0AA0 Starter Package OP77A OP 77A Panel Keypad and Case In Stock
6AV6651-1BA01-0AA0 Starter Package OP77A OP 77B Panel Keyboard and Plastic Case Shell Available Now
Simatic OP77 Operator Panel Description Inventory status

Complete view of all series Siemens HMI Parts


Siemens OP77B 6AV6641-0CA01-0AX0 Manual PDF Download:

  • 6AV6641-0CA01-0AX0 Siemens OP77B date sheet
  • SIMATIC HMI OP 77B OP77A Operating Instructions
  • Siemens Simaitc OP77A OP77B software WinCC flexible Operating Instructions
  • Siemens HMI Panel OP77A OP77B Manual/Handbuch
  • HMI device OP 73, OP 77A, OP 77B Operating Instructions manual

  • FAQ:

    Question: How to Backup and restore a program on Siemens OP77B 6AV6641-0CA01-0AX0 Operator panel?

    Answer: This feature allow to upload only the compiled file. Let's call an image file downloaded to the Panel. Image file executed only on the panel and you can restoreit using Prosave software to the same panel again or another panel with the same MLFB. You will not be able to modify any thing in this file. And also you do not need to buy a licenced software (WinCC flexible), you can backup and restore using Prosave software and it is a free ware and can be downloaded from siemens Website.
    Then follow the instructions of Siemens technical support: Siemens Simatic OP77A OP77B Backup


    Question: What software does Siemens OP77B 6AV6641-0CA01-0AX0 operator panels use?

    Answer: It is SIMATIC WinCC Flexible software, that is an integrated family of tools for configuring theSiemens OP77B 6AV6641-0CA01-0AX0 operator panels operator units. The uniformity of configuration software reduces training, maintenance and updating requirements . More details download the PDF Siemens Software WinCC-flexible 2008


    Question: How do you back transfer the projects of Siemens OP77B 6AV6641-0CA01-0AX0 HMI Panel?

    Answer:Back transfer of the project: This feature allow to have a copy of the WinCC project from Simatic Panel. In this case, you can open this project from WinCC flexible and modify if you want.
    Then follow the instructions of Siemens technical support: How do you back transfer the projects of an operator panel and what should you watch out for?


    Question: What is the difference between OP77A vs OP77B?

    Answer: The functions of these two products are the same, but his internal configuration is partially different. The Siemens OP77A version has 256 KB memory and the Simatic OP77b version 1MB + optional MMC. The A-version definitely has an RS485 interface. Aad The B version also has USB, RS232 and RS422


    Question: What is the Siemens OP77B 6AV6641-0CA01-0AX0 Operator Panel price of membrane keypad and case?

    Answer: Submit a fast quote, send VICPAS an email for best price.
