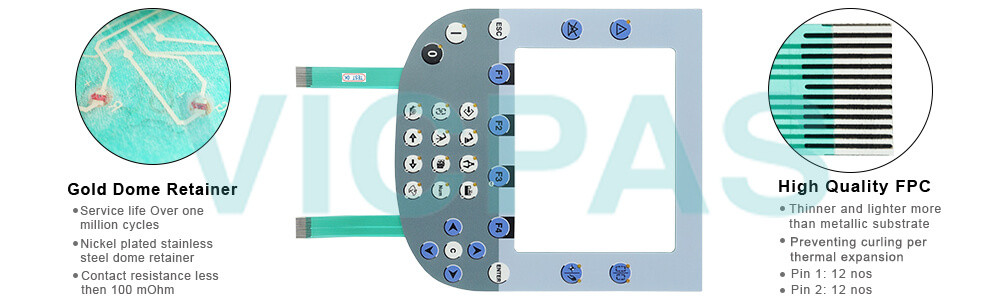

B&R 4MP251.0571-12 Mobile Panel 200 Membrane Keypad

B&R 4MP251.0571-12 Mobile Panel 200 Membrane Keypad

B&R 4MP251.0571-12 Mobile Panel 200 Membrane Keypad
B&R 4MP251.0571-12 Mobile Panel 200 Membrane KeypadB&R 4MP251.0571-12 Mobile Panel 200 Membrane Keypad
CategoriesMobile Panel
BrandVICPAS
Model4MP251.0571-12
BrandB&R
Size5.7 inch
ModelB&R Mobile Panel 200 4MP251.0571-12
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Warranty1 Year VICPAS Warranty
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Update Time2022/6/28
Detail Information

B&R Mobile Panel 200 4MP251.0571-12 Membrane Keypad Repair

Mobile Panel 200 4MP251.0571-12 Membrane Keypad Switch

Depending on the model, Mobile Panel devices can have a 5.7" QVGA color display with or without touch screen or an 8.4" VGA color display with touch screen. In addition, Mobile Panel devices have a foil keypad (numeric and alphanumeric keys). Integrated safety functions consist of a three-step enable switch (2-channel) and an E-stop button (2-channel). They are operated using a foil keypad and a touch screen (with a touch screen pen).


For Mobile Panel 100/200 devices, in addition to the cables with circular plugs (5CAMPH.xxxx- 10), there are also cables with square industrial plugs available (5CAMPH.xxxx-00). If these are selected, the only option is a direct connection to the switching cabinet (5CAMPC.0020-00 oder 5CAMPC.0020-01). If the circular connectors are used, there are two variants to choose from:
• Direct cable to switching cabinet (5CAMPC.0020-10 or 5CAMPC.0020-11) with an optional small connection box (4MPCBX.0001-00).
• Alternatively, a large connection box (4MPCBX.0000-00) and the corresponding box cable (5CAMPB.0100-10) can be used.



  Contact Best Price


Specifications:

The table below describes the parameters of the 4MP251.0571-12 Mobile Panel 200 Membrane Keypad Switch.

Part Number : 4MP251.0571-12
Product Line:Mobile Panel 200
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Keypad
Serial interface Type:RS232
Storage -20 to 70°C


Related B&R Series Part No. :

B&R Mobile Panel 200 Description Inventory status
4MP251.0571-12 B&R Mobile Panel 200 Operator Keyboard Repair In Stock
4MP251.0571-K02 Mobile Panel 200 Keyboard Membrane Replacement Available Now
4MP281.0571-12 B&R Mobile Panel 200 Touch Screen Panel Switch Membrane Repair In Stock
4MP281.0571-K01 B and R Mobile Panel 200 Touch Digitizer Replacement Available Now
4MP281.0843-13 Mobile Panel 200 HMI Touch Screen Organizer Switch Membrane Available Now
4MP281.0843-K03 Mobile Panel 200 Touch Panel Keyboard Membrane Repair In Stock
4MP281.0843-K04 B&R Mobile Panel 200 Touch Screen Membrane Keypad Keyboard In Stock
B and R MP200 Description Inventory status

B&R Mobile Panel 200 Manuals PDF Download:

  • B&R Mobile Panel 100/200 User's Manual

  • FAQ:

    Question:What is Image Persistence of Mobile Panel 200 4MP251.0571-12?

    Answer: Image persistence refers to the "burning in" of a static image on a display after being displayed for a long time. It does not only occur with static images, however. Image persistence is also referred to in the technical literature as screen burn-in, image retention, memory effect, memory sticking or ghost image.
    There are 2 different types:
    • Area type: This type can be seen in a dark gray image. The effect disappears if the display is switched off for a long time.
    • Line type: This can result in permanent damage.


    Question:How can Mobile Panel 200 4MP251.0571-12 image persistence be reduced?

    Answer:
    • Switch continuously between static and dynamic images.
    • Prevent excessive differences in brightness between foreground and background elements.
    • Use colors with similar brightness.
    • Use complementary colors for subsequent images.
    • Use screensavers.


    Common misspellings:

    4MP25.0571-12

    4MP251.571-12

    4MP251.057l-12

    4MP251.O571-12

    4MP251.0571--12
