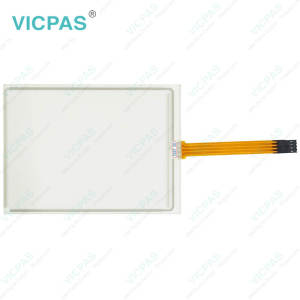

New!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repair

New!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repair

New!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repair
New!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repairNew!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repairNew!Touch screen panel for GUNZE USA 100-0760 touch panel membrane touch sensor glass replacement repair
Categories4-Wire Resistive Touch Panels
BrandVICPAS
ModelGUNZE USA 100-0760
Touch screen panel typeResistance touch screen
Size5.7 inch
Product LineAnalog Resistive 4-Wire
Supply PartsGUNZE USA 100-0760 Touch screen
Shipping2-4 workdays
Warranty365 Days
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeApr 22,2024
Detail Information

Gunze 100-0760/RES-57-PL4 Touch Screen Panel Repair Replacement


Gunze 100-0760 HMI Panel Glass repair replacement

Durable materials create a vast array of durable designs. An ideal choice for applications operating in harsh environments or where durability is important:
• Mobile Computing
• Medical Equipment
• Military Equipment
• Aerospace Equipment


Answering the demand for lightweight, plastic materials suitable for use in PDAs, Gunze 100-0760/RES-57-PL4 Touch Digitizer combines a Film-Film (F-F) touch panel with a plastic substrate. The electrodes are comprised of 0.1 - 0.2mm thick ITO-coated film. These adhere to a 1 - 2 mm thick plastic substrate. Gunze 100-0760 Touch Panel adjusts the heat expansion coefficients of the polycarbonate material used in its touch panels, overcoming warping problems that can result when plastic is used instead of glass. In addition to being lightweight and fracture-resistant, polycarbonate can be shaped in any way imaginable, enabling design possibilities other than traditional rectangles or squares.


Benefits of Gunze 100-0760/RES-57-PL4 Touch Panels
• Highly durable
• Overlay choices from 2H-9H
• Polycarbonate substrates offer lightweight durability
• Chemically strengthened glass substrates increase impact resistance




Specifications:

The table below describes the parameters of the GUNZE 100-0760/RES-57-PL4 Touch Panel Spare Part.

Number of Touches: Single
Product Line: GUNZE
Interface: USB / RS232 / COMBO
Warranty: 1-Year Warranty
Touch Activation Force: Stylus ≦ 50g
Display Size: 5.7 inch
Linearity: X ≦ 1.5%, Y ≦ 1.5%
Tail Options: FFC/ FPC tail
Resolution: 320 X 240
Response time: ≦ 20ms


Related GUNZE Touch Screen HMI Part No. :

GUNZE Touch Screen Description Inventory status
100-0760 Gunze 4-Wire resistive Touch Screen Glass Replacement In Stock
100-1120 GUNZE 4-Wire resistive Touchscreen Panel Replacement Available Now
100-1130 Gunze Analog Resistive 4-Wire HMI Panel Glass Repair Part Available Now
100-1131 Gunze Analog Resistive 4-Wire HMI Touchscreen Repair Part In Stock
100-1180 GUNZE 4-Wire resistive HMI Touch Screen Glass Repair Available Now
100-1190 GUNZE 4-Wire resistive Touch Screen Panel Replacement In Stock
100-1200 Gunze Analog Resistive 4-Wire Touch Membrane Replacement In Stock
100-1220 GUNZE Analog Resistive 4-Wire HMI Touch Glass Replacement In Stock
100-1361 Gunze 4-Wire resistive HMI Panel Glass Replacement Available Now
100-1380 Gunze Analog Resistive 4-Wire Touch Digitizer Glass Repair Available Now
100-1420 Gunze Analog Resistive 4-Wire Touch Screen Monitor Repair In Stock
100-1430 GUNZE 4-Wire resistive HMI Touch Panel Replacement Available Now
Gunze Touch Panel Description Inventory status

GUNZE Touch Screen Panel HMI Manuals PDF Download:

  • 100-0760-Rev.-B-5.7D_4wire Drawing
  • 100-1130 Drawing
  • 100-1131-Rev.-0-8.4D_4wire-1 Drawing
  • 100-1180-Rev.-0-5.7_-4wire Drawing
  • 100-1190_(G104-01_Gunze_10.4D_4w_-FG) Drawing
  • 100-1200-Rev.-0-12.1D_4wire Drawing
  • 100-1220-Rev.-0-15.0D_4wire Drawing
  • 100-1361-Rev.-0-6.7D_-4wire Drawing
  • 100-1380-Rev.-0-3.8D_-4wire Drawing
  • 100-1420-Rev.-0-5.7D_4wire Drawing
  • Tough Touch Data Sheet
  • Low Reflective Data Sheet
  • High Transmissive Data Sheet
  • Film Glass Data Sheet

  • FAQ:

    Question: How many surface treatments finish is available for a resistive 100-0760/RES-57-PL4 touch screens?

    Answer:Film surface treatments range from Clear (3H), anti-glare (3H), anti-smudge (3H), anti-reflective (3H) and 4H (size restricted < 5.0” Diagonal)


    Question: Are there any advantages between 4-8 wire vs 5 wire resistive touch panel?

    Answer:
    4-8 wire resistive touch panel is the most cost-effective, touch technology to incorporate in your application.
    5-wire touch panels are more durable making them ideal for POS, kiosks, or industrial applications.


    Common misspellings:

    100-0760/RES-57-P4

    10-0760/RES-57-PL4

    100-0760/ERS-57-PL4

    100-0760/RES-5T-PL4

    100-076O/RES-57-PL4

    100-00760/RES-57-PL4

    100-0760/RES--57-PL4
