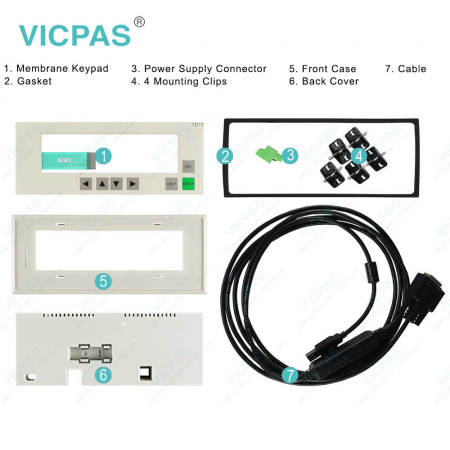

6AV3017-1NE30 Siemens SIMATIC TD17 Membrane Keyboard

6AV3017-1NE30 Siemens SIMATIC TD17 Membrane Keyboard

6AV3017-1NE30 Siemens SIMATIC TD17 Membrane Keyboard
CategoriesSIMATIC TD Series
AlbumView larger image
BrandVICPAS
Model6AV3017-1NE30
BrandSiemens
Product LineSiemens TD17
Warranty180 Days
width229.8mm
height88mm
SupplySiemens TD series membrane keyboard
model6AV3017-1NE30
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time2019-10-21
Detail Information

6AV3017-1NE30 Siemens SIMATIC HMI TD17 Membrane Keyboard Switch Repair Replacement


6AV3017-1NE30 Siemens SIMATIC HMI TD17 Membrane Keyboard Switch Repair Replacement

6AV3017-1NE30 Siemens Text display TD17 LC display, LED backlit 4x 20/8x 40 lines x characters for SIMATIC S5, 505, S7, M7 Native drivers, PROFIBUS -DP12


With text display TD17, you can visualize the operating states, malfunctionsand current process values of a connected PLC.The Text Display features a number of standard functions. The displays andoperation of the device can be optimized by the configurer to meet the requirementsof the process.The TD17 is suitable for installation in cabinets and consoles.

Before the TD17 can be commissioned, it has to be prepared for its job ofvisualizing data from the PLC; in other words, it has to be configured. Thismeans that you have to create data areas in the PLC memory in your configurationwhich can be used by the TD to communicate with the PLC.


VICPAS supply 6AV3017-1NE30 Siemens TD17 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 6AV3017-1NE30 Siemens TD17 HMI Parts.

Part Number : 6AV3017-1NE30
Programming:STEP 7 V5.2 + SP1
Firmware version: V2.0.12
Warranty: 180 Days Warranty
Product Line:Siemens TD17
Rated value (DC):24 V
Number of digital outputs: 16
Design as touch screen:No
Keyboard fonts:US English
Number of analog outputs 2


Related Siemens Simatic TD17 Part No. :

Siemens TD17 Description Inventory status
6AV3017-1NE30-0AX1 TD17 TEXT DISPLAY In Stock
6AV3017-1NE30-0AX0 TD17 TEXT DISPLAY In Stock
6AV3017-1NE30 TD17 TEXT DISPLAY Available Now
SIMATIC TD17 Description Inventory status

Siemens TD17 series HMI Manuals PDF Download:

  • 6AV3017-1NE30 SIMATIC HMI TD17 datasheet pdf
  • Siemens Simatic TD17 series HMI operator panel keypad manual


  • FAQ:

    Question: What is the dimension of 6AV3017-1NE30 Siemens TD17 membrane switch??

    Answer:It is 229.8 millimeter long and 88 millimeters wide.


    Question: How to configure 6AV3017-1NE30 Simatic TD17 with Protool ?

    Answer:The configuration for your TD17 is created on a computer (PC or PU) usingthe ProTool configuration software under Microsoft Windows. Once theconfiguration is ready, it is downloaded to the TD. For this you have to connectyour computer to the TD. After the configuration has been downloaded,you have to connect the TD to the PLC..


    Question: What is the 6AV3017-1NE30 Siemens TD17 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.



    Common misspellings:

    6A3017-1NE30
    6AV017-1NE30
    6AV317-1NE30
    6AV307-1NE30
    6AV301-1NE30
    6AV30171NE30
