6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170B Touchscreen
6AV6545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell and LCD Display Repair Replacement
6AV6545-0BC15-2AX0 LCD Display and Touch Panel:
6AV6545-0BC15-2AX0 SIMATIC Touch Panel TP170B Color STN-Color-Display MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2
The SIMATIC Touch Panel TP 170B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 170B color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.
6AV6545-0BC15-2AX0 HMI Case and Bracket:
TP 170b Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight

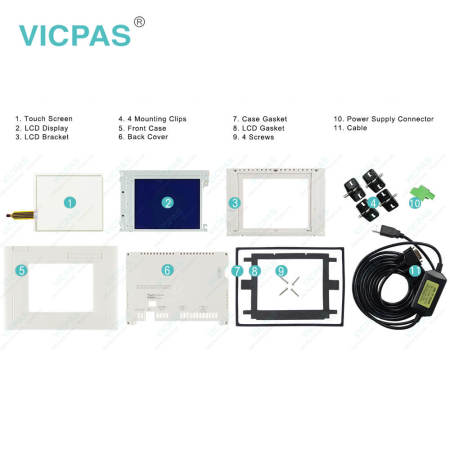

VICPAS supply 6AV6545-0BC15-2AX0 Siemens TP170 touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
The table below describes the parameters of the 6AV6545-0BC15-2AX0 Siemens TP170 HMI Parts.
|Part Number :||6AV6545-0BC15-2AX0|
|Display||STN Display (LCD)|
|Warranty:||365 days Warranty|
|Product Line:||Siemens TP170|
|Resolution:||320 x 240;|
|Color Depth:||4 Blue Levels|
|MTBF of Backlight:||approx. 50,000 h|
|PLC Connection:||SIMATIC S7-200|
Related Simatic TP170 Part No. :
|Siemens TP170||Description||Inventory status|
|6AV6640-0CA01-0AX0||TP170 MICRO||In Stock|
|6AG1545-0BC15-2AX0||SIPLUS HMI TP170B COLOR||In Stock|
|6AV6545-0BA15-2AX0||TP170A TOUCH PANEL BLUE MODE STN-DISPLAY||In Stock|
|6AV6545-0BB15-2AX0||TP170 TOUCH PANEL||In Stock|
|6AV6545-0BC15-2AX0||TP170 TOUCH PANEL||In Stock|
|SIMATIC HMI TP170||Description||Inventory status|
Siemens TP170 HMI Manuals PDF Download:
Question:How to install the TP170 HMI device?
Answer:To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.
Question: Which software options are available for the Siemens TP170?
Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.
Question: What is the 6AV6545-0BC15-2AX0 Siemens TP170 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
