6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen

6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen

6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen
6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen6AG1643-0AA01-4AX0 Siemens Touch Panel TP277 Touchscreen
CategoriesTouch Panel
BrandVICPAS
Model6AG1643-0AA01-4AX0
Warranty365 Days
BrandSiemens
Product LineTP277
SupplySiemens TP277 HMI Touch Panel and Protecitve film
Size5.7 inch
model6AG1643-0AA01-4AX0
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information

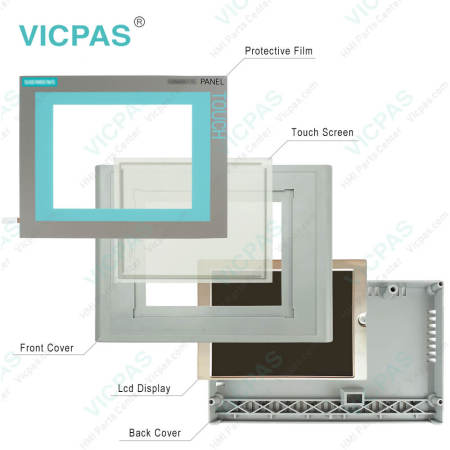

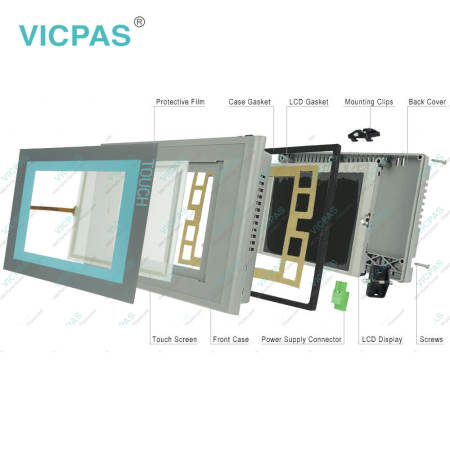

6AG1643-0AA01-4AX0 Siemens SIMATIC HMI TP277 6 Touch Screen Panel, Overlay, Case Gasket, LCD Gasket, Power Supply Connector, Plastic Cover Body, Mounting Clips, Screws and LCD Display Repair Replacement

Order each part separately is available


6AG1643-0AA01-4AX0 Siemens SIMATIC HMI TP277 Touch Screen Panel, Overlay, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Plastic Cover, Screws and LCD Display Repair Replacement


6AG1643-0AA01-4AX0 SIPLUS HMI TP 277 6"Touch for medial exposure based on 6AV6643-0AA01-1AX0



The HMI devices TP 277 and OP 277 represent a further stage of development of the HMI devices TP 270-6 and OP 270-6.


The HMI devices are based on the standard operating system Microsoft Windows CE.Compared with the Multi Panel MP 277, the TP 277 and the OP 277 offer an inexpensive scale option. The mounting options and the functional scope of the TP 277 and OP 277 are compatible with the HMI devices in the 270 series.
The TP 277 and OP 277 also have the following features:
• The HMI devices can be operated on PROFINET via the Ethernet port.
• The HMI devices feature a TFT screen with 256 colors.
• The use of projects with scripts and logs is supported.


VICPAS supply 6AG1643-0AA01-4AX0 Siemens TP277 touch panel, Overlay, Plastic Shell, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, Screws and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AG1643-0AA01-4AX0 Siemens TP277 HMI Parts.

Part Number : 6AG1643-0AA01-4AX0
Size 5.7 inch;
Display TFT
Warranty: 365 days Warranty
Product Line: Siemens TP277
Resolution: 320 x 240;
Number of colors: 256
Control elements: Touch screen
MTBF: 60 000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP277 Part No. :

Siemens TP277 Description Inventory status
6AV6643-0AA01-1AX1 TP277 6 In Stock
6AG1643-0AA01-4AX0 SIPLUS TP277 6 TOUCH In Stock
6AV6643-0AA01-1AX0 SIMATIC TP 277 6" In Stock
SIMATIC TP277 Description Inventory status

Siemens TP277 HMI Manuals PDF Download:

  • 6AG1643-0AA01-4AX0 Siemens TP277 datasheet pdf
  • Siemens Simatic TP277 Panel manual


  • FAQ:

    Question: What is the dimension of the Siemens TP277 Touchscrenn?

    Answer:The touchscreen of 6AG1643-0AA01-4AX0 SIMATIC TP277 is 5.7 inch,with 138.1 millimeter long and 109.4 millimeter wide


    Question: How to backup and restore the Siemens SIMATIC TP277?

    Answer:You can back up and restore the following data found in the internal flash memory of the HMIdevice with a PC:br/>• Project and HMI device image
    • Password listbr/>• Recipe databr/>Use one of the following tools for backup and restore:br/>• WinCC flexiblebr/>• ProSave


    Question: What is the 6AG1643-0AA01-4AX0 Siemens TP277 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    6G1643-0AA01-4AX0
    6A1643-0AA01-4AX0
    6AG643-0AA01-4AX0
    6AG143-0AA01-4AX0
    6AG163-0AA01-4AX0
