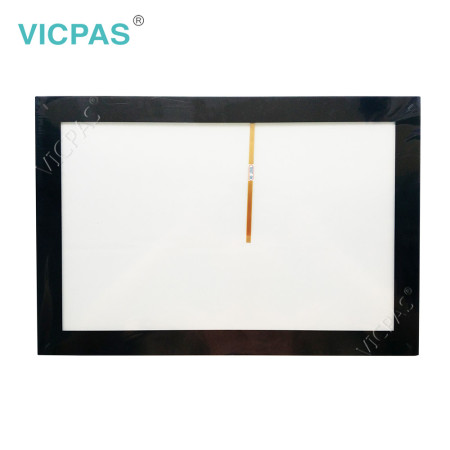

Beijer HMI iX T12C-C21 100-0584 Touch Panel Replacement

Beijer HMI iX T12C-C21 100-0584 Touch Panel Replacement

Beijer HMI iX T12C-C21 100-0584 Touch Panel Replacement
Beijer HMI iX T12C-C21 100-0584 Touch Panel ReplacementBeijer HMI iX T12C-C21 100-0584 Touch Panel ReplacementBeijer HMI iX T12C-C21 100-0584 Touch Panel ReplacementBeijer HMI iX T12C-C21 100-0584 Touch Panel ReplacementBeijer HMI iX T12C-C21 100-0584 Touch Panel Replacement
CategoriesiX TxX Operator Panels
BrandVICPAS
ModeliX T12C-C21
BrandBeijer
Warranty365 Days
Product LineiX TxX
Resolution1280 × 800
SupplyBeijer iX T12C-C20 Touchscreen
Part Number640000202
Size12 INCH
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information

Beijer HMI iX T12C-C21 100-0583 Touchscreen Repair Replacement


 Beijer HMI iX T12C-C21 100-0583 Touchscreen Repair Replacement

Beijer iX T12C-C21 100-0583 12 INCH HMI with iX runtime HMI Repair kit


• 12.1" TFT-LCD touch screen
• 1280 × 800 (16:10)
• Application storage 1.4 GB
• Operating temperature -10 to +50 °C
• CE and UL508 approvals

iX TxX operator panelsRanging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high performance CPUs and the latest screen technology.

VICPAS supply Beijer iX T12C-C21 Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 100-0583 Beijer iX T12C-C21 HMI Parts.

Brand: Beijer
Part number: 100-0583
Size:12 INCH
Warranty: 365 Days Warranty
Product Line:iX T12C-C21
Size diagonal:1280 × 800 pixel
Display type: TFT-LCD
Touch type:Resistive
Input voltage:20 - 30 V DC
Power: 12W


Beijer iX T12C-C21 Touch Panel HMI Manuals PDF Download:

  • Beijer iX TxX Series Maintenance Manuals
  • Beijer iX T12C-C21 HMI manual pdf

  • FAQ:

    Question: How to ground the iX TxX Series Operator Panel?

    Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
    2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
    3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
    4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.


    Question: Why the Beijer iX T12C-C21 HMI have the chemical resistance?

    Answer:Autoflex EBA180L covers the overlay surrounding the screen.


    Question: What is Beijer iX T12C-C21 Touchscreen and Overlay HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    00-0584
    10-0584
    10-0584
    1000584
    100-584
