2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel

2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel

2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel
2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel2711PC-T10C4D8 PanelView Plus 6 Compact Touch Panel
CategoriesPanelView Plus 6 Compact
BrandVICPAS
Model2711PC-T10C4D8
BrandAllen Bradley
Warranty365 Days
Product LinePanelView Plus 6 Compact
Size10.4 Inch
SupplyPanelView Plus 6 Compact Touch Screen Panel Repair
Parts2711PC-T10C4D8 Touch Screen Overlay Housing
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeApr 22,2024
Detail Information

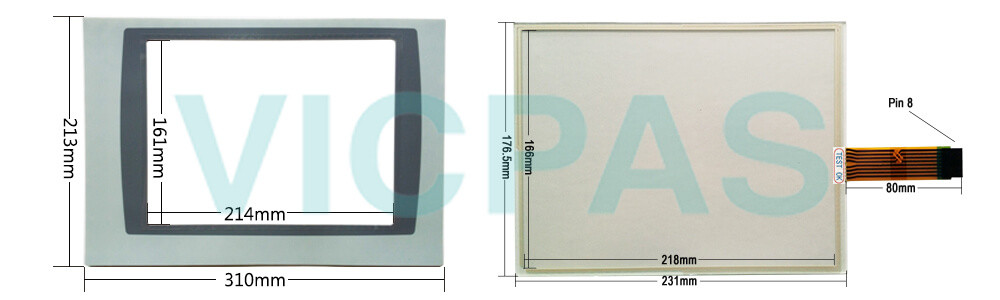

2711PC-T10C4D8 PanelView Plus 6 Compact Touch Screen Glass Front Overlay Plastic Shell LCD Display

Order each part separately is available

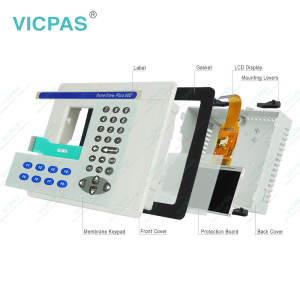

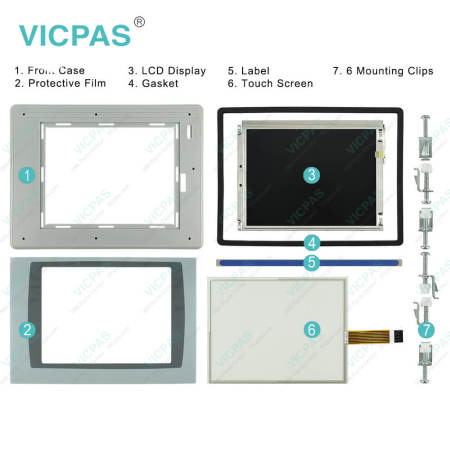

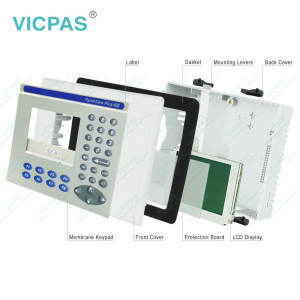

2711PC-T10C4D8 PanelView Plus 6 Compact Touch Screen Panel Glass Protective Film LCD Screen Plastic Shell Gasket Label and Mounting Clips Repair Replacement

VICPAS supply Panelview Plus 6 Compact 2711PC-T10C4D8 protective film, Touch Screen, Label, HMI Case, LCD Display Screen, Gasket and Mounting Clips for repair replacement, make the HMI running. We provide a 365-day VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.


The PanelView Plus 6 Compact 400, 600, and 1000 terminals provide a solution for mid-size applications that require fewer displays and alarms in a FactoryTalk View ME application. These terminals are a subset of the PanelView Plus 6 family with selective hardware and software functionality. 2711PC-T10C4D8 are the preferred HMI solution for many of the CompactLogix controllers.


These features are the major features of the PanelView Plus 6 Compact 2711PC-T10C4D8 terminals:
• Preferred HMI for CompactLogix controllers
• RS-232 serial port, Ethernet port, USB port, DC power input, and Secure Digital (SD) card slot
• Serial and Ethernet communication only
• Connection to a single controller by using either RSLinx Enterprise software, version 5.51 or later, or KEPServer software
• 25 displays and 200 alarm messages that are supported in the FactoryTalk View Compact Machine Edition application and runtime software
• Fixed hardware configurations without the addition or replacement of modular components





Specifications:

The table below describes the parameters of the 2711PC-T10C4D8 PanelView Plus 6 Compact Touchscreen Panel Glass.

Part Number: 2711PC-T10C4D8
Product Line: PanelView Plus 6 Compact
Screen Diagonal: 10.4 in
Warranty: 365 Days Warranty
Input Power: 24 VDC
Software: Panelbuilder 32
Mounting Position: vertical
Input Type: Touchscreen
Communication: Remote I/O and RS-232 Printer Port
Firmware: 4.00-4.48


Related PanelView Plus 6 Compact Series Part No. :

PanelView Plus 6 Compact Description Inventory status
2711PC-B4C20D PanelView Plus 6 Compact Membrane Keypad Touch Screen LCD Display Housing In Stock
2711PC-B4C20D8 AB PanelView Plus 6 Compact Membrane Keyboard Touch Glass LCD Screen Case Available Now
2711PC-B4C20D8-LR Allen Bradley Panel Plus 6 Compact Keypad Touch Panel LCD Display Enclosure In Stock
2711PC-K4M20D Allen Bradley Panel View Plus 6 Compact Membrane Keyboard LCD Screen Housing In Stock
2711PC-K4M20D8 PanelView Plus 6 Compact Keyboard Membrane LCD Display Plastic Shell In Stock
2711PC-T6C20D PanelView Plus 6 Compact Touch Panel LCD Display Plastic Case In Stock
2711PC-T6C20D8 PanelView Plus 6 Compact HMI Touch Screen LCD Display Plastic Shell Available Now
2711PC-T6M20D Allen Bradley PanelView Plus 6 Compact Front Overlay Touch Screen Housing In Stock
2711PC-T6M20D8 PanelView Plus 6 Compact Touch Panel LCD Screen Plastic Case Available Now
2711PC-T10C4D1 PanelView Plus 6 Compact HMI Panel Glass Protective Film Housing In Stock
2711PC-T10C4D8 PanelView Plus 6 Compact Touch Screen Front Overlay Plastic Shell In Stock
PanelView Plus 6 Compact Description Inventory status

AB Panelview Plus 6 Compact Manuals PDF Download:

  • PanelView Plus to PanelView Plus 6 Catalog Number Conversions
  • Allen Bradley PanelView Plus Compact Terminals
  • Allen Bradley PanelView Plus 6 Compact 2711PC-T10C4D8 Terminals Mauals
  • PanelView Plus 6 Compact 2711PC-T10C4D8 Terminals Technical Data
  • PanelView Plus 6 Compact 2711PC-T10C4D8 Terminals User Manual
  • Allen Bradley PanelView Plus 6 Compact Terminals


  • FAQ:

    Question: How to connect the PanelView Plus 6 Compact terminal to DC power?

    Answer:
    1. Verify that the terminal is not connected to a power source.
    2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.
    How to connect the PanelView Plus 6 Compact terminal to DC power?
    3. Secure the DC power wires to the marked terminals (+ and –) on the power terminal block.
    4. Secure the earth/ground wire:
    • On 400 and 600 terminals, secure the earth/ground wire to the functional earth/ground terminal on the power terminal block.
    How to connect the PanelView Plus 6 Compact terminal to DC power?
    • On 1000 terminals, secure the earth/ground wire to the functional earth screw on the back of the display.
    5. Apply power to the terminal.


    Question: What type of display does the Allen Bradley Panelview Plus 6 Compact 2711PC-T10C4D8 have?

    Answer: The 2711PC-T10C4D8 touchscreen has a multicolor LCD as its display type.


    Question: What is the input type of PanelView Plus 6 Compact 2711PC-T10C4D8?

    Answer: The input type of 2711PC-T10C4D8 is a touchscreen. The touchscreen of PanelView Plus 6 Compact is a color display that offers an analog resistive touch screen for touch input.


    Question: How to restart the 2711PC-T10C4D8 system from the Windows desktop?

    Answer:
    1. From the Start menu, choose Programs>Restart System.
    You are asked to confirm the restart.
    2. Click Yes to restart or No to cancel.


    Question: What is the 2711PC-T10C4D8 PanelView Plus 6 Compact touch screen panel price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    2711PC-T10C4DB

    271lPC-T10C4D8

    271PC-T10C4D8

    711PC-T10C4D8
