B&R 5D2200.17 Provit 2000 Touch Screen Replacement

B&R 5D2200.17 Provit 2000 Touch Screen Replacement

B&R 5D2200.17 Provit 2000 Touch Screen Replacement
B&R 5D2200.17 Provit 2000 Touch Screen ReplacementB&R 5D2200.17 Provit 2000 Touch Screen ReplacementB&R 5D2200.17 Provit 2000 Touch Screen ReplacementB&R 5D2200.17 Provit 2000 Touch Screen ReplacementB&R 5D2200.17 Provit 2000 Touch Screen Replacement
CategoriesProvit 2000/5000
BrandVICPAS
Model5D2200.17
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Provit 2000 5D2200.17
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeMar 29,2024
Detail Information

B&R Provit 2000 5D2200.17 Touch Panel Repair Replacement

Order each part separately is available

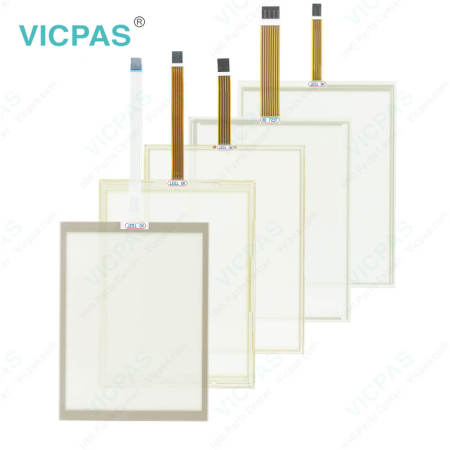

Provit 2000 Touchscreen Glass

All Provit 2000 5D2200.17 controllers up to the 5C2000.01 are equipped either with a PC card interface (5C2000.02) or with two type II PC card interfaces. The Provit 2000 5D2200-17 slot is compatible with JEIDA version 4.1 and PCMCIA Standard Release 2.0. Memory cards, network cards, etc., can be inserted in the PC card interface. Complete compatibility to the IPC2000 controller was given high priority when developing the new IPC2001. The mechanical dimensions, electrical properties and software (BIOS) make 5D2200.17 possible to run existing application software without having to make additional changes.


A successful Provit 2000 5D2200.17 boot procedure from a hard disk is shown below for a 5C2000.07 controller:
• the controller provides a disk drive, a PC card controller (one slot) and a hard disk
• the controller is booted from the hard disk
• the controller provides 8 MBytes extended memory



  Contact Best Price


Specifications:

The table below describes the parameters of the 5D2200.17 Provit 2000 Touchscreen Panel.

Part Number : 5D2200.17
Product Line:Provit 2000
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232


Related Provit Series Part No. :

B&R Provit Description Inventory status
5A2500.08 B&R Provit 2500 Operator Keyboard Repair In Stock
5A2500.09 Provit B and R 2500 Keyboard Membrane Available Now
5C2002.02 B&R Provit 2000 Touch Screen Hmi Repair In Stock
5D2000.02 Provit 2000 B and R HMI Terminal Keypad Available Now
5D2200.01 B&R Provit 2200 Touch Screen Glass Repair In Stock
5D2200.02 B&R Provit 2200 Touch Screen Panel In Stock
5D2200.04 B&R Provit 2200 HMI Touch Glass Repair In Stock
5D2200.07 B and R Provit 2200 Touch Screen Monitor Available Now
5D2200.10 B&R Provit 2200 MMI Touch Screen Repair Available Now
5D2200.17 Provit 2200 B&R Touchscreen Replacement In Stock
5D2210.01 B and R Provit 2200 Touch Panel Front Overlay In Stock
5D2219.01 Provit 2200 B and R Touch Digitizer Glass Available Now
5D2219.02 B&R Provit 2200 Touch Screen Hmi Repair In Stock
5D2219.03 Provit 2200 B and R Touch Screen Monitor In Stock
5D2300.01 B&R Provit 2000 Touch Screen Panel Repair In Stock
B and R Provit Description Inventory status

B&R Provit Manuals PDF Download:

  • B&R Provit 2000 User's Manual
  • B&R PROVIT 2000 User's Manual Display Kits
  • B&R PROVIT 2000 User's Manual 10.4-in Display Kit

  • FAQ:

    Question: How can the B&R Provit 2000 5D2200.17 lifespan of backlights be extended?

    Answer:
    • Set the display brightness to the lowest value that is still comfortable for the eyes
    • Use dark images
    • Reducing the brightness by 50% can result in an approximate 50% increase of the half-brightness time.


    Question: How to change the B and R Provit 2000 5D2200.17 power supply?

    Answer:
    1. Disconnect the power supply.
    2. Unlock fuse holders by turning the slotted bolt in the direction of arrow
    How to change the B and R Provit 2000 5D2200.17 power supply?
    3. Remove the fuse holder.
    4. Remove the old fuse from the fuse holder.
    5. Insert the new fuse.
    6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.
    7. Reconnect the power supply.


    Question: What measures can be taken against preventing after-image effect in Provit 2000 5D2200.17 LCD/TFT monitors?

    Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
    • Avoid static pictures or screen content
    • Use screen savers (moving) when the display is not in use
    • Frequent picture change
    • Shut off the display when not in use
    Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.

    Common misspellings:

    5D200.17

    5D2200.7

    5D2200.l7

    5D2200.1T

    55D2200.17
