6AV6644-5AA10-0BJ0 Siemens MP377 12 Touch Panel Overlay
6AV6644-5AA10-0BJ0 Siemens SIMATIC HMI Multi Panel MP377 12 Touchscreen Panel Glass and Overlay LCD Display Plastic CaseRepair Replacement
6AV6644-5AA10-0BJ0 STARTER PACKAGE MP377 12" TOUCH COMPRISING: MP 377 12" TOUCH WINCC FLEXIBLE STANDARD 2008, SIMATIC HMI MANUAL COLLECTION, MPI-KABEL 5M
The 6AV6644-5AA10-0BJ0 Multi Panel MP 377 is an innovative further development of the 370 series. Alongside the familiar 12" and 15" display sizes, a Multi Panel with a 19" touch screen has also been added to the range. The distinguishing feature of the HMI devices is that they satisfy the ever-increasing demands for technical innovations – especially as far as the display,
The new Multi Panel MP 377 has a TFT display with 64k colors and enhanced performancelevels over the previous devices. The new Multi Panel MP 377 is based on MicrosoftWindows CE 5.0. Compared with previous devices, its multimedia functionality has been greatly extended. Integration of the Microsoft Media Player allows the MP 377 to play videos. Internet Explorer 6.0 for pocket PCs is pre-installed on the HMI devices and extends the ways in which web pages can be displayed. Word documents, Excel spreadsheets and PDF documents can be displayed with Microsoft Viewer.
The user memory has been extended and a remanent maintenance-free message bufferintegrated. A remanent memory area for PLC data is provided to support WinAC MP 2007. Thanks to the wide range of devices, you get to use the device that is suited to you. The 6AV6644-5AA10-0BJ0 MP 377 offers a variety of application uses, high performance and a favorable cost/performance ratio.

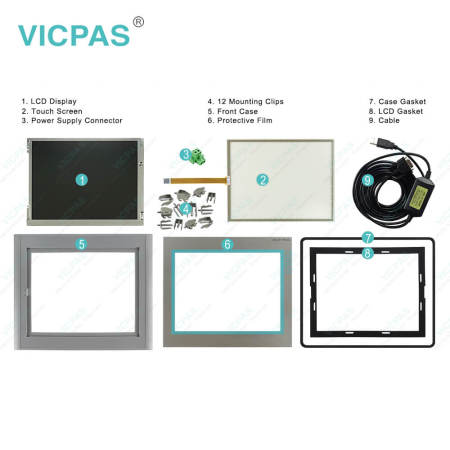

VICPAS supply 6AV6644-5AA10-0BJ0 Siemens MP377 12 touch panel, Mounting Clips, LCD Gasket, Enclosure, LCD Display Panel, Power Supply Connector, Case Gasket and overlay. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.
The table below describes the parameters of the 6AV6644-5AA10-0BJ0 Siemens MP377 HMI Parts.
|Part Number :||6AV6644-5AA10-0BJ0|
|Screen diagonal:||12.1 in|
|Design of display:||TFT|
|Warranty:||365 days Warranty|
|Product Line:||Siemens MP377 12|
|Active power input, typ.:||36 W|
|MTBF backlighting (at 25 °C):||50 000 h|
|Number of colors:||65 536|
|Type of supply voltage||DC|
Related Simatic MP377 12 Part No. :
|Siemens Mutil Panel 377-12||Description||Inventory status|
|6AV6644-0AA01-2AX0||SIPLUS MP377_12"_Touch||In Stock|
|6AV6644-5AA10-0HW0||Siemens MP377_12"_Touch||In Stock|
|6AV6644-5AA10-0BJ0||Simatic MP377 12" Touch||In Stock|
|6AV6644-5AA10-0CG0||Siemens MP377-12 Touch||In Stock|
|SIMATIC Mutil Panel 377-12||Description||Inventory status|
Siemens MP377 HMI Manuals PDF Download:
Question: How to update the Siemens MP377 operating system?
Answer:A compatibility conflict may occur when transferring a project to the HMI device. This iscaused by different versions of the configuration software used and the HMI device imageavailable on the HMI device. If there are different versions, the transfer is aborted. Amessage indicating a compatibility conflict is displayed on the configuring PC.
There are two ways to match the versions:
Question: What is the dimension of Siemens MP377 12 touch panel??
Answer:The Siemens MP377 TouchScreen is 12.1-inch.It is 267.5 millimeter long and 204.5 millimeters wide.
Question: What is the 6AV6644-5AA10-0BJ0 Siemens MP377 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
