Beijer HMI iX T5F-2 630005101 Touch Screen Overlay

Beijer HMI iX T5F-2 630005101 Touch Screen Overlay

Beijer HMI iX T5F-2 630005101 Touch Screen Overlay
Beijer HMI iX T5F-2 630005101 Touch Screen OverlayBeijer HMI iX T5F-2 630005101 Touch Screen OverlayBeijer HMI iX T5F-2 630005101 Touch Screen Overlay
CategoriesiX TxX Operator Panels
BrandVICPAS
ModeliX T5F-2
BrandBeijer
Warranty365 Days
Product LineiX TxX
Resolution800 × 480 pixel
SupplyBeijer iX T5F-2 Touchscreen Protective Film
Part Number630000102
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download
Update TimeJun 17,2024
Detail Information

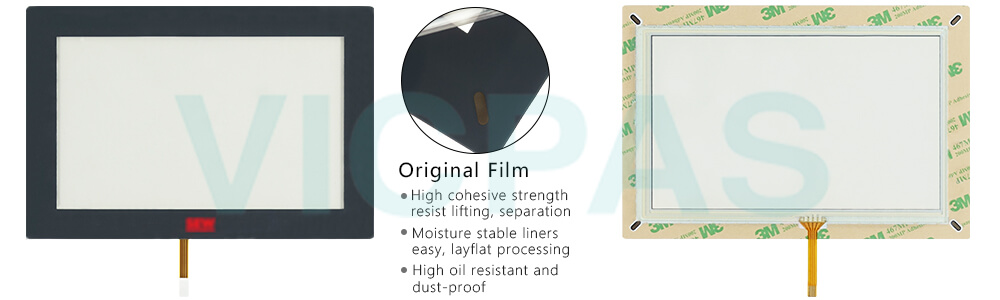

Beijer HMI iX T5F-2 630000102 Touchscreen Protective Film Replacement


 Beijer HMI iX T5F-2 630005101 Touchscreen Front Overlay Repair Replacement

The iX T5F-2 Protective Film Touch Digitizer Glass HMI is a 5-inch industrial operator panel with high-resolution touch screen and modern design. The iX T5F-2 Touch screen panel glass Front Overlay model combines IP65 plastic housing with the full version of the iX HMI software, making it a cost-effective yet advanced HMI. The T5F-2 HMI panel offers Ethernet, serial and USB ports as standard.


▪ 5”, 800 × 480 pixel (16:9), TFT-LCD touch screen
▪ Application storage 200 MB
▪ 1 × Ethernet, 4 × serial, 1 × USB as standard
▪ Operating temperature -10 to +50 °C
▪ UL / cUL, CE, FCC and KCC certifications

VICPAS supply Beijer iX T5F-2 Touch Panel and Front Overlay with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the 630005101 Beijer iX T5F-2 HMI Parts.

Brand: Beijer
Part number: 630005101
Size: 5 INCH
Warranty: 365 Days Warranty
Power voltage: +24 VDC
Size diagonal: 800x480 pixel
Display type: TFT-LCD
Touch type: Resistive
Backlight: LED
Brightness: 300 cd/m2


Beijer iX T5F-2 Touch Panel HMI Manuals PDF Download:

  • Beijer iX TxX Series Maintenance Manuals
  • Beijer iX T5F-2 HMI manual pdf

  • FAQ:

    Question: How to ground the iX TxX Series Operator Panel?

    Answer:1. Connect a 2.5mm2 wire between the operator panel’s quick-connect plinth and the panel’s chassis, see 2 in drawing above.
    2. Connect a 6mm2 or 4mm2 wire or grounding braid between the operator panel’s chassis and the closest grounding point on the door, see 3 in drawing above.
    3. Connect a strong but short grounding braid between the door and the devicecabinet, see 4 in drawing above.
    4. Twist the cables onto the 24VDCfeed, see 5 in drawing above. Minimumcross-section of the cable is 2.5mm2.2 turns around the ferrite core provide 4 times the suppression of 1 turn.3 turns around the ferrite core provide 9 times the suppression of 1 turn.


    Question: Why the Beijer iX T5F-2 HMI have the chemical resistance?

    Answer: T5F-2 covers the overlay surrounding the screen.


    Question: What is Beijer iX T5F-2 Touchscreen and Overlay HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    63000511
    360005101
    6300051o1
    6300051011
