2713P-T6CD1-B PanelView 5310 Panel Glass Front Film
| Categories | PanelView 5310 |
|---|---|
| Brand | VICPAS |
| Model | 2713P-T6CD1-B |
| Brand | Allen Bradley |
| Product Line | Allen-Bradley PanelView 5310 Repair Kit |
| Supply | Touch Digitizer Glass, Front Overlay |
| Shipping | 2-3 workdays |
| Size | 5.7 inches |
| Warranty | 365 Days |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |
| Update Time | Apr 18,2024 |

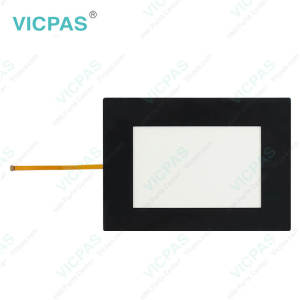

Allen-Bradley PanelView 5310 HMI 2713P-T6CD1-B Resistive Touch Panel Front Overlay Repair Replacement
Order each part separately is available
The PanelView™ 5310 terminals are operator interface devices that monitor and control devices attached to ControlLogix® 5570 and 5580 controllers, and CompactLogix™ 5370, 5380, and 5480 controllers over an EtherNet/IP™ network. Animated graphic and text displays provide operators with a view into the operating state of a machine or process. Operators interact with the control system by using the touch screen.
This environment includes these major components:
• Studio 5000 View Designer – you can create and design a project for a specific PanelView 5310 2713P-T6CD1-B Touch Screen Monitor Front Overlay terminal and download the project to the 2713P-T6CD1-B Touch Digitizer Glass Protective Film terminal. You can create an application for any PanelView 5310 2713P-T6CD1-B HMI Touch Screen Protective Film terminal and reuse that same application across the entire platform.
• Studio 5000 Logix Designer – you can develop control logic for a CompactLogix or ControlLogix controller and download the logic to the controller.
VICPAS supply Allen Bradley PanelView 5310 HMI 2713P-T6CD1-B Resistive Touch Screen and Front Overlay with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 2713P-T6CD1-B PanelView 5310 Parts.
| Part Number: | 2713P-T6CD1-B |
| Storage Temperature: | - 25°C - 70°C |
| Operating Temperature: | 0°C - 55°C |
| Relative Humidity: | 5…95% without condensation |
| Status Indicators: | STS (green), ERR (red) |
| Product Line: | PanelView 5310 |
| Display Type: | Color TFT LCD |
| Color Depth: | 24-bit color graphics |
| Brightness: | 300 cd/m2 (Nits) |
| Backlight: | LED, non-replaceable |
Related Allen Bradley PanelView 5310 Terminals Part No. :
| PanelView 5310 | Description | Inventory status |
| 2713P-T6CD1 | PanelView 5310 2713P-T6CD1 Touchpanel Digitizer Overlay | In Stock |
| 2713P-T6CD1-B | 2713P-T6CD1-B PanelView 5310 Panel Glass Front Film | In Stock |
| 2713P-T6CD1-K | PanelView 5310 2713P-T6CD1-K Overlay HMI Glass Monitor | In Stock |
| 2713P-T7WD1 | 2713P-T7WD1 PanelView 5310 Protective Film Panel Repair | Available Now |
| 2713P-T7WD1-B | 2713P-T7WD1-B PanelView 5310 7'' HMI Touch Panel Film | Available Now |
| 2713P-T7WD1-K | PanelView 5310 2713P-T7WD1-K Panel Glass Overlay Repair | In Stock |
| 2713P-T9WD1 | PanelView 5310 2713P-T9WD1 9'' Touch Panel Front Film | In Stock |
| 2713P-T9WD1-B | 2713P-T9WD1-B PanelView 5310 9'' Touchscreen Front Film | Available Now |
| 2713P-T9WD1-K | PanelView 5310 2713P-T9WD1-K 9'' Glass Panel Overlay | Available Now |
| 2713P-T10CD1 | 2713P-T10CD1 PanelView 5310 Touchscreen Film Display | In Stock |
| 2713P-T10CD1-B | 2713P-T10CD1-B PanelView 5310 Overlay Glass LCD Display | Available Now |
| 2713P-T10CD1-K | PanelView 5310 2713P-T10CD1-K Panel Glass Film Display | In Stock |
| 2713P-T12WD1 | PanelView 5310 2713P-T12WD1 12.1'' Front Overlay Touch | Available Now |
| 2713P-T12WD1-B | 2713P-T12WD1-B PanelView 5310 12.1'' Touchpanel Overlay | Available Now |
| 2713P-T12WD1-K | PanelView 5310 2713P-T12WD1-K Panel Glass Film Repair | In Stock |
| PanelView 5310 HMI | Description | Inventory status |
PanelView 5310 HMI Manuals PDF Download:
FAQ:
Question: What you need to pay attention to when you handle this PanelView 5310 2713P-T6CD1-B Touch Digitizer Glass Front Overlay terminal?
Answer:
• Touch a grounded object to discharge potential static.
• Use an anti-static wriststrap connected to the work surface.
• Use properly grounded tools and equipment.
• Avoid touching pins, leads, or circuitry.
• Always hold components with a printed circuit board (PCB) by its edges and place it with the assembly side down.
Question: How to clean the 2713P-T6CD1-B display?
Answer:
1. Disconnect power from the terminal at the power source.
2. To clean the display and help prevent scratches, use a clean sponge or soft cloth with mild soap or detergent.
3. Dry the display with a chamois or moist cellulose sponge to avoid water spots.
Question: How to remove paint or grease from the bezel that is properly mounted in a NEMA, UL Type, or IP rated enclosure?
Answer:
1. Rub lightly with isopropyl alcohol (70% concentration).
2. To remove residue, use a mild soap or detergent solution.
3. Rinse with clean water.
