PP846 3BSE042238R1 Operator Panel Keypad Repair

PP846 3BSE042238R1 Operator Panel Keypad Repair

PP846 3BSE042238R1 Operator Panel Keypad Repair
PP846 3BSE042238R1 Operator Panel Keypad RepairPP846 3BSE042238R1 Operator Panel Keypad Repair
CategoriesABB Panel 800
BrandVICPAS
ModelPP846 3BSE042238R1
Warranty365 Days
Product LineABB Panel 800
TypesKeypad Membrane
Shipping2-3 workdays
Size10.4 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeApr 22,2024
Detail Information

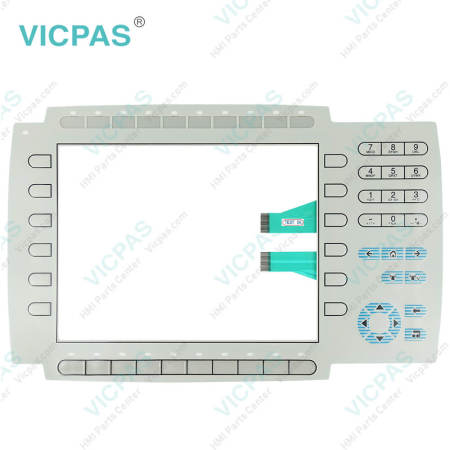

ABB ABB Panel 800 PP846 3BSE042238R1 Membrane Keypad Switch Repair

ABB PP846 3BSE042238R1 Membrane Switch Replacement

The description of the PP846 3BSE042238R1 operator terminal:

Keyboard material: Membrane switch keyboard with metal domes. Overlay film of Autotex F157 * with print on reverse side. 1 million operations.

Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.

Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.

Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2

Real time clock battery: CR2450 (UL and cUL: Sanyo or Panasonic) Minimum lifetime: 3 years

Display: TFT-LCD. 800 x 600 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >50,000 h.


VICPAS supply ABB ABB Panel 800 PP846 3BSE042238R1 Membrane Keyboard with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the PP846 3BSE042238R1 ABB Panel 800.

Part Number: PP846 3BSE042238R1
Active Area Of Display: 211.2 x 158.4 mm
Part Type: New
Display Type: TFT-LCD
Backlight: CCFL
Display Resolution: 800 × 600 pixels
Operating Temperature: 0 … +50 °C
Storage Temperature: -20 … +70 °C
Relative Humidity: 5 - 85 % non-condensed
Warranty: 365 Days


Related ABB ABB Panel 800 Terminals Part No. :

ABB Panel 800 Description Inventory status
PP815A 3BSE042239R1 ABB Panel 800 PP815A Front Overlay Touch Membrane In Stock
PP815A 3BSE042239R2 ABB Panel 800 Series PP815A Touch Glass Front Overlay Repair In Stock
PP820A 3BSE042243R1 ABB Panel 800 Series PP820A Membrane Keyboard Keypad Repair Available Now
PP820A 3BSE042243R2 ABB Panel 800 PP820A HMI Panel Glass Protective Film Available Now
PP825A 3BSE042240R1 ABB Panel 800 Series PP825A Touch Screen Monitor Front Overlay In Stock
PP826 3BSE042244R1 ABB Panel 800 Series PP826 Membrane Keypad Switch Replacement In Stock
PP826A 3BSE042244R3 ABB Panel 800 Series PP826A HMI Operator Panel Keypad Available Now
PP835 3BSE042234R1 ABB Panel 800 Series PP835 Protective Film Touchscreen Repair In Stock
PP835A 3BSE042234R2 ABB Panel 800 Series PP835A HMI Protective Film Touch Screen Glass Available Now
PP836 3BSE042237R1 ABB Panel 800 Series PP836 Operator Keyboard Replacement Repair In Stock
PP836A 3BSE042237R2 ABB Panel 800 Series PP836A Switch Membrane Repair Replacement In Stock
Panel 800 Repair Description Inventory status

ABB Panel 800 HMI Manuals PDF Download:

  • Panel 800 PP846 3BSE043450R501 en 5.1 Hardware and Installation

  • FAQ:

    Question: How to ground the PP846 3BSE042238R1 operator panel?

    Answer:

    1. The operator panel’s mounting clamps do not provide a secure grounding connection between the panel and the device cabinet.

    2. Connect a 2.5 mm² wire between the operator panel’s quick-connect plinth and the panel chassis.

    3. Connect a 6 or 4 mm² wire or grounding braid between the panel’s chassis and the closest grounding point on the door.

    4. Connect a strong but short grounding braid between the door and the device cabinet.

    5. Twist the cables onto the 24 V DC feed.

    6. A ferrite core suppresses disturbances to the 24 V feed. 2 turns around the ferrite core provide 4 times the suppression of 1 turn. 3 turns around the ferrite core provide 9 times the suppression of 1 turn.


    Question: What is the price of PP846 3BSE042238R1 Membrane Keypad?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: What is the size of the PP846 3BSE042238R1 Operator Keyboard?

    Answer: The PP846 3BSE042238R1 Switch Membrane is 10.4-inch.
