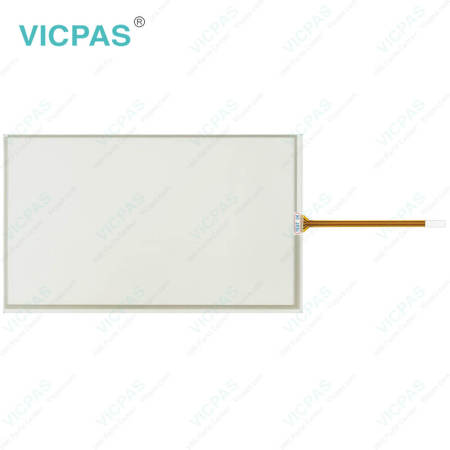

HMI 8136-500 CPU 5.1 033A1-0939A HMI Panel Glass Replacement

HMI 8136-500 CPU 5.1 033A1-0939A HMI Panel Glass Replacement

HMI 8136-500 CPU 5.1 033A1-0939A HMI Panel Glass Replacement
CategoriesAB Other Series
BrandVICPAS
Model8136-500 CPU 5.1 033A1-0939A
Warranty365 Days
Product LineBusch-Comfort Panel
SupplyTouch Screen Monitor
Shipping2-3 workdays
Part Number8136-500 CPU 5.1 033A1-0939A
Touch Size9 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeDec 8,2024
Detail Information

BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A Touch Screen Panel Replacement


BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A Touch Membrane Repair

BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A HMI Touch Glass BuschComfort PanelTouch Feature:


Robust and reliable technology
BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A Touch Digitizer Glass BuschComfort PanelTouch is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30℃ to 70℃ with maximum 95% humidity.


Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.


Easy to use
A fully deployable BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A HMI Panel Glass HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.


State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.





Specifications:

The table below describes the parameters of the BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A Touch Screen Monitor HMI.

Display Type: TFT LCD
Part Number: 8136-500 CPU 5.1 033A1-0939A
Product Line: Busch-Comfort Panel
Storage Temperature: -20 °C to +70 °C
Warranty: 365 Days
Backlight Colors: 64 k colors
Backlight Lifetime: 20,000 hours
Brand: VICPAS
Operating Temperature: -10 °C to +60 °C
Screen Brightness: 450 cd/m2


Related Automation Panel Terminals Part No. :

HMI Repair Description Inventory status
3HAC034169-001 3HAC034169-001 CABLE HARNESS CD27 BOX2 Repair In Stock
8136-500 CPU 5.1 033A1-0939A HMI Panel Glass Repair Replacement In Stock
ACS100-PAN Operator Panel Keypad HMI Replacement Repair Available Now
D674A906U01 Proces/Hygienic Master 300 Cartridge Membrane Keypad Switch Available Now
EL3010 EL3010-IPA EL3020 EL3040 Membrane Keyboard Keypad Replacement In Stock
FOG-VS090VXN01V0 GVS VS090VXN01V0 160705E-YZ HMI Touch Digitizer Glass Replacement In Stock
GOP 2 B395976 / B395059 / B390868 Graphic Operator Panel Terminal Keypad Replacement Available Now
GOP 2 G2010 A B394073 GOP2 B396858 G2010A10.4ST Graphic Operator Panel Series Keyboard Membrane Repair In Stock
GOP GENERA G2010 A 10.4st Graphic Operator Panel Keypad Membrane Replacement Available Now
GOP GENERA OY G2000 A 5.7HT Touch Digitizer Switch Membrane Repair In Stock
Millmate Operator Unit 410 Protective Film Touch Screen HMI Replacement In Stock
STT04 STT04EPS01J3 Smart Transmitter Terminal Switch Membrane Replacement In Stock
SYNPOL D 3DDE 300 400 CMA 120 SYNPOL D Membrane Keypad MMI Repair Available Now
SYNPOL D CMA130 SYNPOL D Operator Keyboard Replacement In Stock
MMI Replacement Description Inventory status


FAQ:

Question: Grounding the BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A MMI Touch Screen operator panel

Solution: BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0939A HMI Touch Screen Repair
The mounting clamps of the operator panel do not provide a secure grounding connection between the panel and the device cabinet, see 1 in drawing above.
1. Connect a wire, that is sized correctly according to local electrical codes, between the quick-connect terminal connector on the operator panel and the chassis of the panel, see 2 in drawing above.
2. Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the operator panel and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the device cabinet, see 4 in drawing above.
4. Twist the cables onto the 24 V DC feed, see 5 in drawing above.
2 turns around the ferrite core provide 4 times the suppression of 1 turn.
3 turns around the ferrite core provide 9 times the suppression of 1 turn.
A ferrite core suppresses disturbances to the 24 V feed, see 6 in drawing above.
The grounding wires should be short and the conductor should have a large area.
A long, thin grounding wire has a very high impedance (resistance) at high frequencies and does not guide disturbances to the ground.
Multi-wire conductors are better than single wire conductors with the same area.
A braided conductor wire with the same area is even better. The best is a short, thick grounding braid.


Common misspellings:

BuschComfort PanelTouch 8136-500 CPU 5.1 033A-0939A
BuschComfort PanelTouch 836-500 CPU 5.1 033A1-0939A
BuschComfort PanelTouch 8136-500 CUP 5.1 033A1-0939A
BuschComfort PanelTouch 8136-500 CPU 5.1 033A1-0Q39A
BuschComfort PanelTouch 81136-500 CPU 5.1 033A1-0939A
