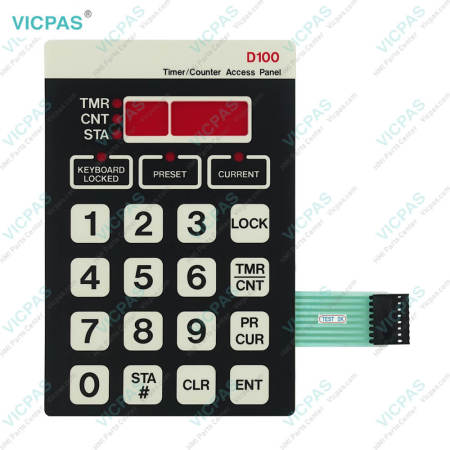

EATON Cutler Hammer - D100 TCM20-R Operator Panel Keypad Replacement
| Share | |
|---|---|
| Categories | Cutler-Hammer Panelmate |
| Brand | VICPAS |
| Model | EATON Cutler Hammer - D100 TCM20-R |
| Product Line | Cutler-Hammer Panelmate |
| Warranty | 1 Year |
| Shipping Time | 3-5 Days |
| Supply Parts | Membrane Keyboard |
| Environment | Free From Corrosive Gases |
| LCD Size | Vicpas |
| FOB port | Guangzhou, Shenzhen, Hongkong |
| Terms of Payment | Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card |

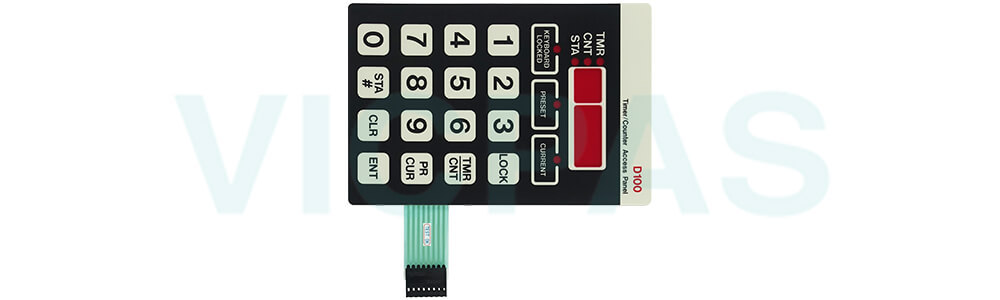

EATON Cutler Hammer - D100 TCM20-R Switch Membrane Replacement
Cutler Hammer Panels EATON Cutler Hammer - D100 TCM20-R Membrane Keyboard are designed for simple, reliable, and efficient operation in demanding environments. Unlike traditional mechanical switches, EATON Cutler Hammer - D100 TCM20-R Operator Panel Keypad responds to finger or gloved operation without requiring strong actuation force. A light touch delivers the same response as a heavy press, helping reduce operator fatigue while improving control accuracy and operating efficiency. With a smooth and responsive interface, Eaton Panelmate EATON Cutler Hammer - D100 TCM20-R Keypad Membrane provides convenient machine interaction for industrial automation systems, operator panels, and HMI equipment. Proper touchscreen operation and regular maintenance can help extend service life and ensure stable performance in daily use. Vicpas supplies high-quality Cutler-Hammer EATON Cutler Hammer - D100 TCM20-R Membrane Switch for a wide range of industrial HMI and operator interface panels. Our replacement touchscreens are designed to provide reliable touch response, durable performance, and easy integration, helping customers restore equipment operation quickly and reduce downtime.
Specifications:
The table below describes the parameters of EATON Cutler Hammer - D100 TCM20-R Operator Panel Keypad.
| Relative Humidity: | 95% |
| Cooling Method: | Natural Air Cooling |
| Warranty: | 365 Days |
| Storage Temperature: | -20 °C ... +60 °C |
| Operating Temperature: | 0 °C ... +50 °C |
| Brand: | Vicpas |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Shipping Time: | 3-5 Days |
| Protection: | IP65 |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: How can I adjust the display contrast on the PanelMate unit?
Answer: Units with grayscale or dual-scan color displays support software-controlled contrast adjustment. To adjust the contrast, place the unit in Run Mode, then go to Get Page → More → Setup Page → Adjust Contrast. Use the Lighter and Darker control buttons to achieve the desired display effect. After adjustment, press Save Setting to keep the new contrast level, or press Cancel to return to the previous setting. The unit will restore the last saved contrast setting after power cycling.
Question: What should I do if EATON Cutler Hammer - D100 TCM20-R Keyboard Membrane does not work at all, or if one or several membrane keys are not responding?
Answer: First, check the integrity of the cable and connectors to ensure all connections are secure and undamaged. Loose or damaged cables may cause the membrane keyboard to stop responding properly. You can also use the Membrane Keyboard Test function to verify whether the keys are sending signals correctly to the PanelMate unit. This diagnostic test helps identify whether the issue is related to the keypad itself or the system connection. If the membrane keyboard still does not function properly after troubleshooting, replacing the damaged membrane keypad may be necessary.
Common misspellings:
EATON Cutler Hammer - D1100 TCM20-REATON Cutler Hammer - D100 TCM2-R
EATON Cutler Hammer - D100 TMC20-R
EATON Cutler Hammer - 100 TCM20-R
EATON Cutler Hammer - D100 TCM20R
