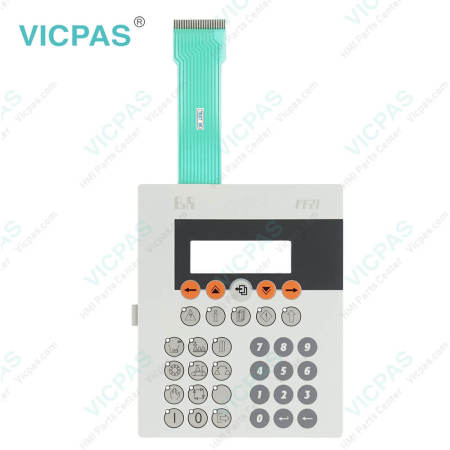

Membrane keypad for 4P0420.00-490 membrane keyboard switch

Membrane keypad for 4P0420.00-490 membrane keyboard switch

Membrane keypad for 4P0420.00-490 membrane keyboard switch
Membrane keypad for 4P0420.00-490 membrane keyboard switchMembrane keypad for 4P0420.00-490 membrane keyboard switchMembrane keypad for 4P0420.00-490 membrane keyboard switchMembrane keypad for 4P0420.00-490 membrane keyboard switchMembrane keypad for 4P0420.00-490 membrane keyboard switch
CategoriesPower Panel 15/21/35/41/45
BrandVICPAS
Model4P0420.00-490
BrandB&R
Size5.7 inch
Warranty1 Year VICPAS Warranty
ModelB&R Power Panel 21 4P0420.00-490
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Download DOC
Update Time2022/7/7
Detail Information

B&R Power Panel 21 4P0420.00-490 Membrane Keypad Keyboard Repair Replacement

Order each part separately is available

Power Panel 21 4P0420.00-490 Keyboard Membrane

B&R offers the B&R Power Panel 15, 21, 35, and 41 for automation of small to midsize machines and systems. These Power Panels are a combination of operator panel and controller in one device. A 4 x 20 character text display, a 3-inch display with 160 x 80 pixels, or a ¼ VGA graphic display can be selected. Each Power Panel is equipped with a powerful PLC CPU including integrated digital or analog I/O. The series PP21 and PP41 panels have an additional six slots for B&R SYSTEM 2003 screw-in modules. An expansion module is offered for the Power Panel 41 which allows the operation of B&R SYSTEM 2005 interface module inserts. The visualization application is created using B&R Automation Studio™. B&R Automation Studio™ is used to program the CPU.


B&R Automation Device Interface (ADI) 4P0420.00-490 Development Kit Features:
• One Microsoft Visual Basic module with ADI function declarations
• Header files and import libraries for Microsoft Visual C++
• Help files for Visual Basic and Visual C++
• Sample projects for Visual Basic and Visual C++
• ADI DLL (for application testing if no ADI driver is installed)


VICPAS supply B and R Power Panel 21 4P0420.00-490 Keyboard membrane for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.



  Contact Best Price


Specifications:

The table below describes the parameters of the 4P0420.00-490 Power Panel 21 Membrane Keypad Switch.

Part Number : 4P0420.00-490
Product Line:Power Panel 21
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Keypad
Serial interface Type:RS232
Storage -20 to 70°C


Related Power Panel 21 Series Part No. :

Power Panel 21 Description Inventory status
4P0420.00-490 B&R Power Panel 21 Membrane Keyboard Keypad In Stock
4P0420.00-K08 PP21 B and R Operator Panel Keypad Repair Available Now
4P0420.00-K11 B&R Power Panel 21 Membrane Keypad Switch Repair In Stock
B and R PP21 Description Inventory status

B&R Power Panel 21 Manuals PDF Download:

  • B&R Power Panel User's Manual
  • B&R 4P0420.00-490 Power Panel PP21 Manual
  • B&R Power Panel 15/21/35/41 User's Manual

  • FAQ:

    Question: What is the B&R Power Panel 21 4P0420.00-490 terminal keypad price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question:How to change the B&R Power Panel 21 4P0420.00-490 battery?

    Answer: The product design allows the battery to be changed with the Power Panel switched on or off. In some countries, safety regulations do not allow batteries to be changed while the module is switched on.
    How to change the B&R Power Panel 21 4P0420.00-490 battery?
    The battery is changed as follows:
    • Touch the mounting rail or ground connection (not the power supply!) in order to discharge any electrostatic charge from your body.
    • Remove the cover from the lithium battery holder using a screwdriver.
    • Remove the battery from the holder by pulling the removal strip (don't use uninsulated tools -> risk of short circuiting).
    How to change the B&R Power Panel 21 4P0420.00-490 battery?
    • The battery should not be held by its edges. Insulated tweezers may also be used for removing the battery.
    How to change the B&R Power Panel 21 4P0420.00-490 battery?
    • Insert the new battery with correct polarity. The removal strip should be protruding from the battery holder and the "+" side of the battery should be facing downward. In order to be able to remove the battery again in future, the removal strip must protrude from the upper side of the battery.
    • Now wrap the end of the removal strip over the top of the battery and insert it underneath the battery so that it does not protrude from the battery holder.
    How to change the B&R Power Panel 21 4P0420.00-490 battery?


    Question:How can the Power Panel 21 4P0420.00-490 lifespan of backlights be extended?

    Answer:
    • Set the display brightness to the lowest value that is still comfortable for the eyes
    • Use dark images
    • Reducing the brightness by 50% can result in an approximate 50% increase of the halfbrightness time.

    Common misspellings:

    40420.00-490

    4P0420.0-490

    4Po420.00-490

    4P0420.00-4Q0

    4PO420.00-490
