Membrane keypad for XBTGK2330 membrane keyboard switch

Membrane keypad for XBTGK2330 membrane keyboard switch

Membrane keypad for XBTGK2330 membrane keyboard switch
Membrane keypad for XBTGK2330 membrane keyboard switchMembrane keypad for XBTGK2330 membrane keyboard switchMembrane keypad for XBTGK2330 membrane keyboard switchMembrane keypad for XBTGK2330 membrane keyboard switch
CategoriesMagelis XBT GT/GTW/GK
BrandVICPAS
ModelSchneider XBTGK2330
Warranty180 days VICPAS Warranty
Membrane MaterialPlastic
ApplicationIndustry Equipment
Part No.Schneider XBTGK2330 keypad touchscreen
Terms of PaymentWestern Union, T/T, PayPal, T/T ,Credit Card, Western Union
Download DOC
Update Time2022/10/7
Detail Information

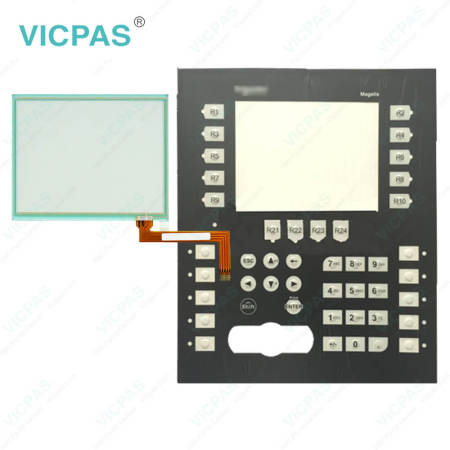

Schneider Magelis XBTGK2330 Membrane Keypad with Touchscreen for replacement

Order each part separately is available

Magelis XBTGK2330 Membrane Keypad with Touchscreen for replcementMagelis XBTGK2330 Membrane Keypad with Touchscreen for replcement

The XBTGK2330 membrane keypad is Schneider Tesys T series Small panel with keypad. It is very simple and easy to use, ambient air temperature for operation rang between 0~55 °C. The XBTGK2330 keyboard is an operator terminal that enables the user to interface with their machine. And also, the display offers a variety of graphics on the monochrome display.


This Schneider HMI allows the user to connect using Vijeo Designer Lite, which runs on a personal computer. This ntegrated control panel connection type and Power supply: removable screw terminal block.
Serial link: female SUB-D 25, asynchronous transmission mode (RS232C/RS485), multidrop topology. This gasket, when used correctly, is able to form a compression type seal. You should not use any sealing compounds on this unit.



Specifications:

The table below describes the parameters of the XBTGK2330 keypad switch touchscreen.

Part Number : XBTGK2330
Product Line: Magelis XBT GK Series
Touchscreen Size: 5.7 in.
Warranty: 180 days Warranty
Touch Technology: Keyboard
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times

PDF Download:

  • Schneider Magelis XBTGK2330 User Manual Product datasheet PDF

  • Magelis XBTGK Series Part No.

    Magelis XBT GK Description Inventory status
    XBTGK2120 advanced touchscreen panel with keyboard- 5.7'' In Stock
    XBTGK2330 advanced touchscreen panel with keypad-5.7'' In Stock
    XBTGK5330 advanced touchpanel with keyboard- 10.4'' In Stock
    Schneider XBT GK Description Inventory status

    FAQ:

    Question: Is the internal backlight replaceable?

    Answer: No, the internal backlight of XBTGK2330 is not replaceable.


    Question: Is the battery replaceable?

    Answer: No, the battery of XBTGK2330 is not replaceable.


    Question: What is the price of XBTGK2330 HMI Parts?

    Answer: Submit a quote request, send us an email for our best price.
