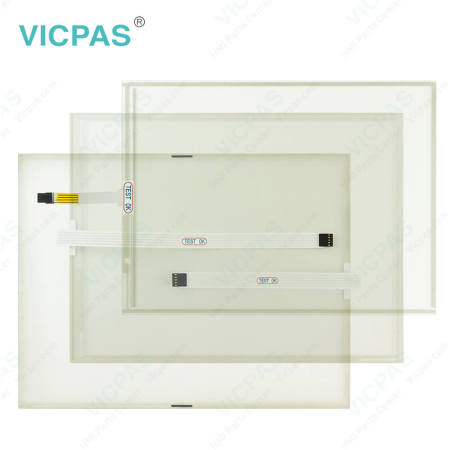

5PC725.1505-K15 Touch Screen 5PC725.1505-K15 Membrane Keyboard VPS T12
|B&R Touch Screen Repair
|Resistance Touch Screen
|touch screen repair
|touch screen monitor
|touch panel repair
|5PC725.1505-K15 Touch Screen 5PC725.1505-K15 Membr
|Guangzhou, Shenzhen, Hongkong
|Terms of Payment
|Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
5PP520.0702-B00 Touch Screen Panel Repair
5PP520.0702-B00 touch screen size: 7 inch and other general size is 3.0'' to 22'' . 5PP520.0702-B00 touchscreen adopt to panel display device. 5PP520.0702-B00 touch panel touch times are more than 1 million touches. 5PP520.0702-B00 touch screen monitor Current: 5mA~25mA. 5PP520.0702-B00 HMI touch screen temperature operating range: -10° C ~ 60° C. 5PP520.0702-B00 MMI touch screen Operation Voltage : Typical +DC 5V. 5PP520.0702-B00 touch membrane operation system including: Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.
* Size 15 inch
General Size 3.0'' to 22''
Custom Size 1.0''to 22''
Fit in with Panel display device
Linearity Error <1.5%
Response Speed <10ms
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g
Surface Durability Meets pencil hardness 3H (per ASTM D3363)
Light Transmission 80%(Meet ASTM D1003)
Temperature Operating Range: -10° C ~ 60° C
Storage Range: -20° C ~ 70° C
Relative Humidity Operating Range: 0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Altitude Up to 3, 000m
Operation Voltage Typical +DC 5V
Power Supply USB or RS232
Interface Full Duplex USB 2.0 (Full Speed) Plug and play compatible
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS
All product are new, working in perfect condition,Meet bad environment,No need change any
shell and add any auxiliary to the HMI machine.
More Products number:
Guangzhou Vicpas Touch Technology is a manufacturer of touch screen, touch panel, membrane keypad with well-equipped testing facilities and strong technical force.
With a wide range, good quality, short delivery, reasonable prices and stylish designs, our products are extensively used in Industrial, Medical, Pos terminal, GPS, CNC repair and other industries.
Our products are widely recognized and trusted by users from more then 60 countries, we can also design and produce by the Customer's sample.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
- 1. Low cost
- 2. Finger, gloved hand and stylus activation
- 3. High accuracy and sensitivity
- 4. High durability and reliability
- 5. Contaminant proof and liquid resistance
- 6. OEM is available.
Outer packing is strong carton with Five corrugating medium, inner packing is foam which would protect theproduct in well condition.
We are shipping the goods to every country of the world!
Usually the goods will be sent at the next working day after payment, the shipping time depends on your country of residence, depending on your country's customs!
Our shipping method is Hong Kong DHL ,other shipping methods, such as Fedex is OK!
VICPAS has employed a variety of methods to improve the performance of the entire work force with a superior customer service strategy , aiming to provide excellent service and high quality products to meet or even exceed our customer`s expectations.
The key features of VICPAS customer service are as below:
1.Systematic management system to delivery right products to our customers.
2.Strictly quality control management system to maintain quality at sustainable level.
3.Honesty Culture makes sure to be your long term strategic partner in China
4.Unique and creative products and competitive price keep you in a competitive market position in harsh marketing environment.
5. VICPAS provide a 1 year warranty for all the touch screens and 6 months warranty for all the membrane keyboard.
Thank you very much for your interest in VICPAS products and VICPAS Company,below are few questions you may want answers.
1. What is the structure of a resistive single touch screen?
4wire and 5wire resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
2. How to clean a touch screen?
Cleaning with a Microfiber Cloth
- 1. Choose a microfiber cloth. This is ideal for cleaning a touchscreen. Some devices will have such a cloth included or perhaps you can borrow one you use on your sunglasses.
- 2. Turn off the device before commencing to clean it. It is usually much easier to see where to clean when the device is switched off.
- 3. Give the screen a once over by brushing it with the microfiber in small circles.This will remove the majority of simple imperfections.
- 4. Only if truly needed, moisten a cotton cloth, even the corner of your cotton shirt, and repeat the small circular motions. It may actually be enough to just breathe over the screen and use that moisture to clean with.
- 5. Brush again with the microfiber cloth to finish off. Don't over-rub though! And if there is any dampness left, just leave it to air dry.Do not put too much pressure on the screen when cleaning it.
- 6. Wash the microfiber cloth.
3. Can I use a resistive single touch screen with mitten?
Of course, a resistive single touch screen can be used with mitten.
4. How long is the operation life of a resistive single touch screen from VICPAS?
12 million touches are guaranteed for a 4 wire touch screen.
37 million touches are guaranteed for a 5 wire touch screen.
5. If I need a resistive single touch screen whose specifications are tailored to my needs.
VICPAS can provide a resistive single touch screen customized to your requested specifications.Please contact us for more details.
6. How is your production management and quality control system?
VICPAS develops process - oriented QMS to identify and meet needs of customer requirement and expectation in an effective and efficient manner to achieve competitive advantage.
All our product process follows up ISO9001: income quality checking, in process quality checking, final product quality checking. The strict implementation of ISO9001 assures to provide error – free products to our customers.
We will show you these in our workshop during your visiting.
If you are interested in our products,please contact us for further information without hesitate.We will reply you as soon as we receive your inquiry.
VICPAS Looking forword to your cooperation. To VICPAS homepage
