2711-K14C15 PanelView 1400 Membrane Keyboard Repair

2711-K14C15 PanelView 1400 Membrane Keyboard Repair

2711-K14C15 PanelView 1400 Membrane Keyboard Repair
CategoriesPanelView 1400
BrandVICPAS
Model2711-K14C15
BrandAllen Bradley
Warranty365 Days
Product LinePanelView 1400
Size14 Inch
SupplyPanelView 1400 Membrane Keypad Swtich
Parts2711-K14C15 Membrane Keypad Switch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022/7/7
Detail Information

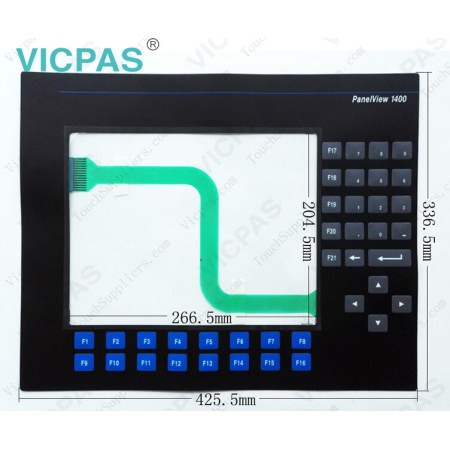

2711-K14C15 PanelView 1400 Membrane Keyboard Keypad Switch Repair Replacement


2711-K14C15 PanelView 1400 Membrane Keyboard Keypad Switch Repair Replacement

The Allen-Bradley 2711-K14C15 is an AC-powered PanelView 1400 terminal. It consists of a color screen and a keypad, but it does not have any touchscreen abilities. The function keys can have customized labels. The 2711-K14C15’s screen measures 14 inches and has an 800 x 600-pixel resolution. The screen has 384 touch cells, each of which measures 33 x 37 pixels. The 2711-K14C15 Series B terminal uses a stud mount and it is housed in a NEMA Type 4x enclosure, which is only for indoor use. Ports available with this terminal are a ControlNet Release 1.5 communication port and an RS-232 printer port. Remote I/O is also available with this terminal. The entire terminal measures 13.97 x 19 x 15.53 inches and weighs 44.75 pounds.


The maximum power consumption of this terminal is 200 VA. It has a supply voltage limit of 85 to 264 Volts AC and 43 to 63 Hertz and its operating temperature is between 0 and 55 degrees Celsius, while its storage temperature is between -40 and 85 degrees Celsius. It has a heat dissipation of 78 W or 264 BTU/hour and a non-condensing relative humidity of 5 to 95% at 0 to 55 degrees Celsius. The 2711-K14C15 also has an operating vibration of 1g at up to 2000 Hertz, with an operating shock of 15g and a non-operating shock of 30g.


VICPAS supply Panelview Standard 1400 2711-K14C15 membrane keypad switch for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.




  Contact Best Price


Specifications:

The table below describes the parameters of the 2711-K14C15 PanelView 1400 membrane keyboard keypad switch.

Part Number : 2711-K14C15
Product Line:PanelView 1000
Screen diagonal14 in
Warranty: 365 Days Warranty
Input Power24 VDC
Software:Panelbuilder 32
Operating Temperature: 32-131 F (0-55 C)
Input Type: Keypad
Communication:Remote I/O and RS-232 Printer Port
Display Dimensions 10.0 x 7.5 in (255 x 191 mm)


Related PanelView 1400 Series Part No. :

Siemens KP300 Series Description Inventory status
6AV6647-0AH11-3AX0 SIMATIC HMI KP300 BASIC MONO PN In Stock
SIMATIC HMI KP300 Series Description Inventory status

FAQ:

Question:What are the status indicators for 2711-K14C15?

Answer:2711-K14C15 has two indicators: a green COMM indicator and a red fault indicator.


Question: What is the voltage rating of the 2711-K14C15 Allen Bradley ?

Answer:The 2711-K14C15 has a voltage rating of 85 to 264 Volts AC.


Question:Does the 2711-K14C15 Panelview 1400 have a replacement backlight?

Answer:Yes, the 2711-K14C15 has a replacement backlight, although different series have different replacement parts. 2711-K14C15 has the following replacement part number: 2711-NL4, Series B: 2711-NL6, Series C: 2711-NL7, Series D, and Series E: 2711NL9, and for Series F: 2711-NL10.


Question:How many touch cells does 2711-K14C15 have?

Answer:2711-K14C15 has 384 touch cells in 24 columns by 16 rows. The touch cell size is 33 x 37 pixels.


Question: What is the 2711-K14C15 PanelView 1400 touch screen panel price?

Answer: Submit a fast quote, send VICPAS an email for best price.


Common misspellings:

27l1-K14C15

271l-K14C15

2711-Kl4C15

2711-K1AC15

2711-K14Cl5
