6AV3617-1JC20-0AX2 Siemens OP17 Membrane Switch Replacement

6AV3617-1JC20-0AX2 Siemens OP17 Membrane Switch Replacement

6AV3617-1JC20-0AX2 Siemens OP17 Membrane Switch Replacement
CategoriesOparator Panel
AlbumView larger image
BrandVICPAS
Model6AV3617-1JC20-0AX2
BrandSiemens
Warranty6 Months
Product LineSiemens OP17 Operator Panel
SupplySIMATIC HMI OP17 Membrane Keyboard and Shell
width233mm
height161mm
model6AV3617-1JC20-0AX2
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, T/T ,Credit Card, Western Union
Update Time2019-10-21
Detail Information

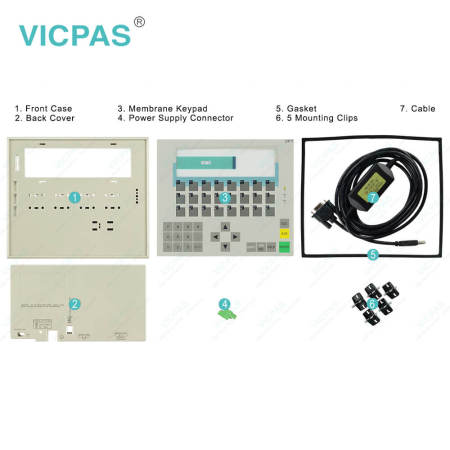

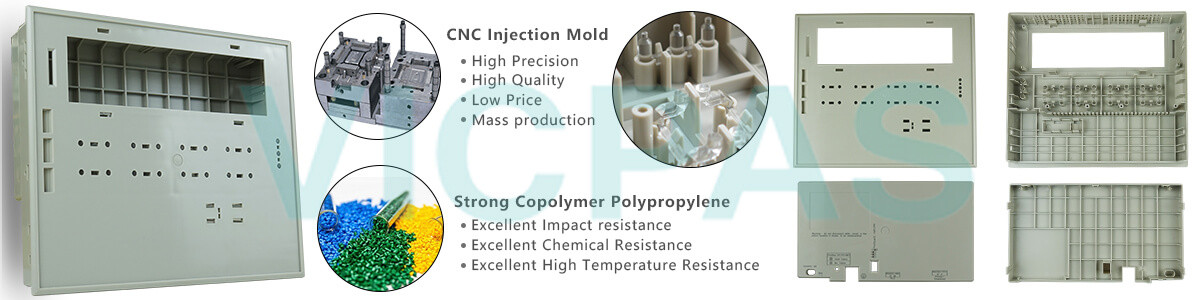

6AV3617-1JC20-0AX2 Siemens SIMATIC HMI OP17 OP 17 OPERATOR PANEL Membrane Keyboard and Plastic Case Shell Repair Replacement


6AV3617-1JC20-0AX2 Siemens SIMATIC HMI OP17 OP 17 OPERATOR PANEL Membrane Keyboard and Plastic Case Shell Repair Replacement

6AV3617-1JC20-0AX2 Operator Panel OP 17/DP LC display, LED backlit 4x 20/8x 40 lines x characters SIMATIC S7, M7, PROFIBUS DP 1.5 Mbaud with UL/CSA approval


The 6AV3617-1JC20-0AX2 OP17 has a plastic housing with a touch-sensitive front and is thereforesuitable for ungrounded installation. The coloring of the front foil conformswith machinery directive EN 60204.

The OP17 is available in the following versions:
• OP17/PP,
• OP17/DP and
• OP17/DP-12.
The versions differ only in their communication options. figure 1-3 shows thedesign of Operator Panel OP17.


VICPAS supply 6AV3617-1JC20-0AX2 Siemens OP17 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.




  Contact Best Price


Specifications:

The table below describes the parameters of the 6AV3617-1JC20-0AX2 Siemens OP17 HMI Parts.

Number of system keys : 22
Numerical keypad: YES
Character size:5 mm
Warranty: 6-Months Warranty
Product Line:Siemens OP17
Number of function keys:24
Part Number: 6AV3515-1EB30-1AA0
System keys:YES
Design as touch screen:No
Design of display: LC display


Related Siemens OP17 Part No. :

SINUMERIK Operator panel OP17 Description Inventory status
6AV3617-4EB12-0AA0 PP32/OP17 BUILT-IN UNIT In Stock
6AV3617-4EB42-0AA0 PP32/OP17 In Stock
6AV3617-1JC00-0AX2 OP17/PP OPERATOR PANEL In Stock
6AV3617-1JC20-0AX2 OP17/DP OPERATOR PANEL In Stock
6AV3617-1JC30-0AX2 OP17/DP12 OPERATOR PANEL In Stock
6AV3617-1JC30-0AX1 OP17/DP12 OPERATOR PANEL In Stock
6AV3617-1JC00-0AX1 OP17/PP OPERATOR PANEL In Stock
6AV3617-1JC20-0AX1 OP17/DP OPERATOR PANEL In Stock
6AV3617-1JC30-0AX0 Operator Panel OP17/DP12 In Stock
6AV3617-4EB42-0AL0 OP17 PP32 In Stock
6AV3617-4EB42-1AA0 OP17 PP32 In Stock
6AV3617-4FB42-0AL0 OP17 PP32 In Stock
6AV3617-5BA00-0BC0 OP17 DP In Stock
6AV3617-5BB00-0AB0 OP17 DP In Stock
6AV3617-5BB00-0AB1 OP17 DP In Stock
6AV3617-5BB00-0AJ0 OP17 DP In Stock
6AV3617-5BB00-0BD0 OP17 DP In Stock
6AV3617-5BB00-OBEO OP17 DP In Stock
6AV3617-5CA00-0AD0 OP17 DP12 In Stock
6AV3617-5BB00-0AE0 OP17\DP In Stock
Siemens Operator panel OP17 Description Inventory status


Siemens OP17 series HMI Manuals PDF Download:

  • 6AV3617-1JC20-0AX2 SIMATIC HMI OP17 datasheet pdf
  • Siemens Simatic OP17 HMI operator panel keypad manual


  • FAQ:

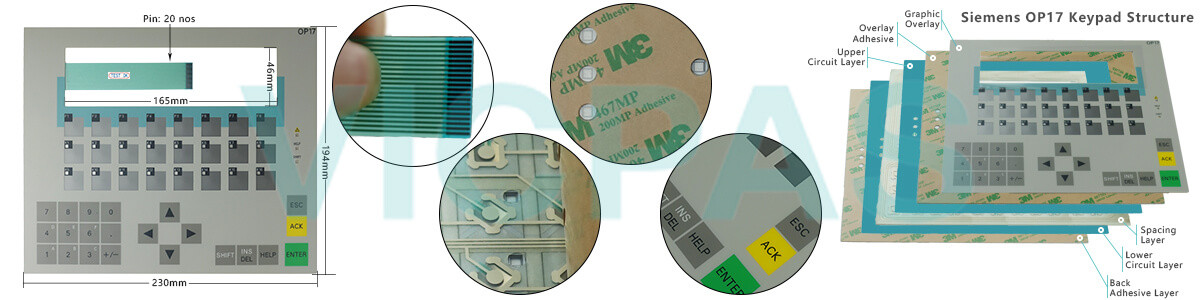

    Question: What is the dimension of 6AV3617-1JC20-0AX2 Siemens OP17 membrane switch??

    Answer:It is 230 millimeter long and 194 millimeters wide.


    Question: How to Backup the battery Siemens OP17 Operator Panel?

    Answer:You can upgrade the OP17 with an optional backup battery. When the powersupply is interrupted, the backup battery ensures that• the operating data in the OP17 message buffer are retained and• the hardware clock continues to run on its internal reserve power.


    Question: What is the 6AV3617-1JC20-0AX2 Siemens OP17 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
