Quick Service for Full HMI Parts Replacement
Home / all / Allen Bradley / Display Modules /

2711P-RDK7CK Allen Bradley Dispaly Module Membrane Keypad

2711P-RDK7CK Allen Bradley Dispaly Module Membrane Keypad

2711P-RDK7CK Allen Bradley Dispaly Module Membrane Keypad
2711P-RDK7CK Allen Bradley Dispaly Module Membrane Keypad2711P-RDK7CK Allen Bradley Dispaly Module Membrane Keypad
CategoriesDisplay Modules
BrandVICPAS
Model2711P-RDK7CK
BrandAllen Bradley
Warranty365 Days
Product LineDispaly Module
Size7 Inch
SupplyPanelView Plus Membrane Keypad Switch
Parts2711P-RDK7CK Membrane Keypad Switch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time2022/8/9
Detail Information

2711P-RDK7CK PanelView Plus Membrane Keyboard Keypad Switch Repair Replacement


2711P-RDK7CK PanelView Plus Membrane Keyboard Keypad Switch Repair Replacement

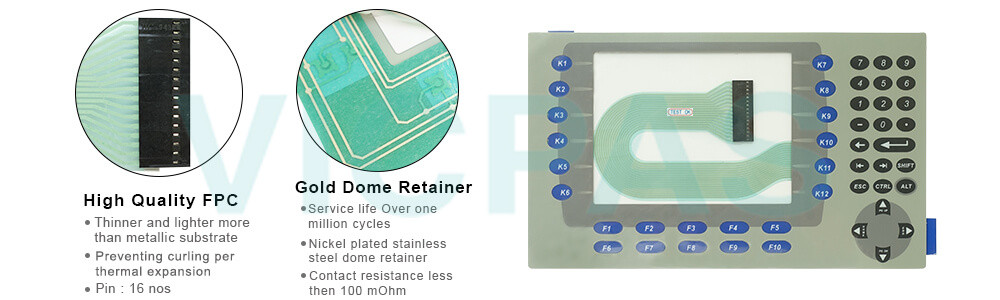

VICPAS supply Panelview Plus 2711P-RDK7CK membrane keypad switch touchscreen for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.


The discontinued Allen Bradley Panelview Plus 2711P-RDK7CK is an operator terminal that enables the user to interface with their machine. This Panelview allows the user to connect using FactoryTalk View Machine Edition software and a Ethernet and RS-232 communication port with a 1761-NET-ENI communication cable(s). The user is able to control the HMI using the Keypad to input information and data. This unit is powered using 85-264 VAC power. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. The 2711P-RN20 Ethernet communication module is available for the 700 to 1500 terminals if another Ethernet port is required. The module has its own unique IP address. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.




  Contact Best Price


Specifications:

The table below describes the parameters of the 2711P-RDK7CK PanelView Plus membrane keyboard keypad switch.

Part Number :2711P-RDK7CK
Product Line:Dispaly Module
Screen diagonal7 in
Warranty: 180 Days Warranty
Input Power24 VDC
Display ColorColor
Input Power AC
Input Type: Keypad
Communication:Remote I/O and RS-232 Printer Port
Software FactoryTalk View Machine Edition


Related PanelView Plus Series Part No. :

PanelView Plus HMI Description Inventory status
2711P-RDK7C Display Module Membrane Keypad Keyboard Color Display Replacement In Stock
2711P-RDK7CK Allen Bradley Panel Plus Rockwell Membrane Keypad Replacement Available Now
2711P-RDT7C Allen Bradley Panel View Plus Touch Screen Panel Front Overlay Display Available Now
2711P-RDT7CK Allen Bradley Rockwell PanelView Plus Protective Film Touchscreen In Stock
2711P-RDT7CM Allen Bradley PanelView Plus Touch Panel Overlay Repair Kit In Stock
2711P-RDB7C PanelView Plus Rockwell Membrane Keyboard HMI Touch Screen Panel Available Now
2711P-RDB7CK Allen Bradley Display Module Membrane Keypad Touch Screen Replacement In Stock
2711P-RDB7CM PanelView Plus Touchscreen Membrane Operator Panel Keypad Repair Available Now
2711P-RDK10C Allen Bradley Panel View Plus Rockwell HMI Terminal Keypad Platic Case In Stock
2711P-RDT10C AB Display Module Touch Screen Panel Glass Front Overlay Plastic Shell Available Now
AB Display Module Description Inventory status

AB Panelview Plus Manuals PDF Download:

  • Allen Bradley Panelview Plus Terminals User Manual
  • PanelView Rockwell Display Modules Installation Instructions


  • Common misspellings:

    2711PRDK7CK

    27l1P-RDK7CK

    271lP-RDK7CK

    2711P-RDK7CKK
