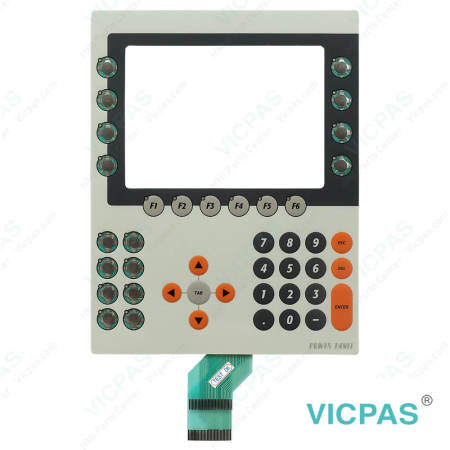

Power Panel 400 4PP450.0571-K28 Touch Digitizer Glass

Power Panel 400 4PP450.0571-K28 Touch Digitizer Glass

Power Panel 400 4PP450.0571-K28 Touch Digitizer Glass
Power Panel 400 4PP450.0571-K28 Touch Digitizer GlassPower Panel 400 4PP450.0571-K28 Touch Digitizer GlassPower Panel 400 4PP450.0571-K28 Touch Digitizer GlassPower Panel 400 4PP450.0571-K28 Touch Digitizer Glass
CategoriesPower Panel 400
BrandVICPAS
Model4PP450.0571-K28
BrandB&R
Size5.7 inch
Warranty1 Year VICPAS Warranty
ModelB&R Power Panel 400 4PP450.0571-K28
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information

B&R Power Panel 400 4PP450.0571-K28 Front Overlay Touch Screen Glass Repair Replacement

Order each part separately is available

Power Panel 400 4PP450.0571-K28 Touch Screen Panel Protective Film
Power Panel 400 4PP450.0571-K28 Touch Screen Panel Protective Film
Power Panel 400 4PP450.0571-K28 Touch Screen Panel Protective Film

For the Power Panel 300 and the Power Panel 400, B&R also implements the proven product lines of BIOS devices (Power Panel 300) and embedded devices (Power Panel 300 and Power Panel 400). Power Panel 400 4PP450.0571-K28 devieces can be delivered with the Windows XP embedded and Windows CE operating systems. They cover the entire range of PC systems, from simple thin clients and web terminals to full SCADA systems. Power Panel 300 and Power Panel 400 devices handle the automation of complete systems. This provides integrated control functionality and drive technology together with modular interfaces for connecting peripheral devices for the process. Models ranging from 5.7" QVGA to 15" XGA meet all requirements for series machine manufacturing. There is now a new variant that combines a 5.7" diagonal with a VGA TFT display. It allows a great deal of information to be displayed in a small amount of space and images can be shown is detail. Entries are made using either the touch screen or the function keys.


The visualization project runs on the Power Panel 400. Serial RS232 or Ethernet TCP/IP provides the communication to the controller system. Flexible programming with frame drivers or Ethernet socket services allows a connection to be made to any control system. I/O peripherals and drives are connected to the controller.



  Contact Best Price


Specifications:

The table below describes the parameters of the 4PP450.0571-K28 Power Panel 400 Touchscreen Panel Front Overlay.

Part Number : 4PP450.0571-K28
Product Line:Power Panel 400
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 70°C


Related Power Panel 400 Series Part No. :

B&R Power Panel 400 Description Inventory status
4PP420-0571-85 B&R Power Panel 400 Touch Screen Panel Glass Repair In Stock
4PP420-0571-K02 Power Panel 400 B&R Touch Panel Glass HMI Available Now
4PP420-0571-K06 B and R Power Panel 400 Touch Digitizer Replacement In Stock
4PP420-0571-K14 Power Panel 400 B and R HMI Touch Screen Organizer In Stock
4PP420-0571-K22 Power Panel 400 HMI Touch Panel Glass Repair In Stock
4PP420-0571-K30 Power Panel 400 B&R HMI Touch Screen Panel Available Now
4PP420-0571-K40 Power Panel 400 B&R Overlay Touch Screen Monitor In Stock
4PP450-0571-K28 Power Panel 400 B&R HMI Touch Screen Panel Glass Available Now
B and R PP400 Description Inventory status

B&R Power Panel 400 Manuals PDF Download:

  • B&R Power Panel 400 User's Manual

  • FAQ:

    Question:How to upgrade B&R Power Panel 400 4PP450.0571-K28 MTCX Firmware (MTCX FPGA, MTCX PX32)?

    Answer: A current MTCX Firmware (MTCX FPGA and MTCX PX32) upgrade can be downloaded directly from the service portal on the B&R homepage (www.br-automation.com).
    To carry out a firmware upgrade, the following steps should be taken:
    • Create bootable media.
    • Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
    • Connect the bootable media to the Power Panel and reboot the device.
    • A boot menu with the following options is displayed after booting:
    How to upgrade B&R Power Panel 400 4PP450.0571-K28 MTCX Firmware (MTCX FPGA, MTCX PX32)?
    Concerning item 1:
    The MTCX Firmware FPGA and PX32 is automatically updated (default after 5 sec).
    How to upgrade B&R Power Panel 400 4PP450.0571-K28 MTCX Firmware (MTCX FPGA, MTCX PX32)?
    Concerning item 2:
    Returns to the shell (MS-DOS).
    • Select the desired action.
    • Remove the bootable media and reboot the device (only after a successful update!).


    Question:How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?

    Answer:
    • Place an empty 1.44 MB HD diskette in the disk drive.
    • Open Windows Explorer.
    • Right-click on the 3?" floppy icon and select "Format...".
    How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?
    • Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".
    How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?
    How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?
    After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders.
    How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?
    How to creating a B&R Power Panel DOS boot diskette in 4PP450.0571-K28 Windows XP?
    Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.


    Common misspellings:

    4P420.0571-K14

    4PP20.0571-K14

    4PP42o.0571-K14

    4PP420.O571-K14

    4PP420.0571-Kl4
