B&R 5AP920.1043-K04 Touch Screen Monitor

B&R 5AP920.1043-K04 Touch Screen Monitor

B&R 5AP920.1043-K04 Touch Screen Monitor
B&R 5AP920.1043-K04 Touch Screen MonitorB&R 5AP920.1043-K04 Touch Screen MonitorB&R 5AP920.1043-K04 Touch Screen MonitorB&R 5AP920.1043-K04 Touch Screen MonitorB&R 5AP920.1043-K04 Touch Screen Monitor
CategoriesAutomation Panel 900
BrandVICPAS
Model5AP920.1043-K04
Touch screen panel typeResistance touch screen
Size10.4 inch
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Automation Panel 900 5AP920.1043-K04
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Download DOCpdf icon
Update TimeMar 29,2024
Detail Information

B&R Automation Panel 900 5AP920.1043-K04 Touch Screen Glass Repair Replacement

Order each part separately is available

Automation Panel 900 5AP920.1043-K04 Touch Screen Panel HMI Touch Glass

An Automation Panel 900 with max. SXGA resolution is connected to the integrated DVI interface (onboard). As an alternative, an office TFT with a DVI interface or analog monitor (using adapter 5AC900.1000-00) can also be used. A separate cable is used for both the touch screen and USB data. If USB devices are to be operated on the Automation Panel 900, the maximum distance is 5 meters. USB devices can only be connected directly to the Automation Panel (i.e. without a hub).


The following device families can be connected to the B&R Automation Panel 900 5AP920.1043-K04:
• Automation PC 510
• Automation PC 511
• Automation PC 620
• Automation PC 810
• Automation PC 820
• Automation PC 910
• Panel PC 700
• Panel PC 800
• Power Panel 500



  Contact Best Price


Specifications:

The table below describes the parameters of the 5AP920.1043-K04 Automation Panel 900 Touchscreen Panel.

Part Number : 5AP920.1043-K04
Product Line:Automation Panel 900
Screen diagonal10.4 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 70°C


Related Automation Panel 900 Series Part No. :

Automation Panel 900 Description Inventory status
5AP920.1043-01 B&R Automation Panel 900 Touch Screen Panel Glass Protective Film In Stock
5AP920.1043-K01 Automation Panel 900 B and R Touch Panel Glass Front Overlay Repair Available Now
5AP920.1043-K02 B&R Automation Panel 900 Touch Screen Panel Repair In Stock
5AP920.1043-K04 B and R Automation Panel 900 Touch Digitizer Replacement In Stock

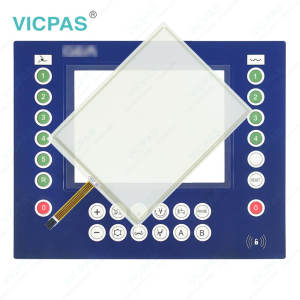

5AP920.1043-K09 Automation Panel 900 B&R HMI Touch Screen Organizer In Stock
5AP951.1043-01 B and R Automation Panel 900 Touch Panel Glass Repair In Stock
5AP952.1043-01 Automation Panel 900 B&R HMI Touch Screen Organizer Available Now
5AP980.1043-01 Automation Panel 900 B&R Touch Screen Monitor Replacement In Stock
5AP981.1043-01 B and R Automation Panel 900 Touch Screen Hmi Monitor Available Now
5AP982.1043-01 B&R Automation Panel 900 Touch Panel Glass Organizer Replacemnet In Stock
B and R AP900 Description Inventory status

B&R Automation Panel 900 Manuals PDF Download:

  • B&R Automation Panel 900 User's Manual

  • FAQ:

    Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?

    Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
    To carry out a firmware upgrade, the following steps should be taken:
    • Changing display-specific parameters
    • Reading device-specific keys
    • Updating the key configuration
    • Enabling device-specific LEDs on a membrane keypad or keys
    •Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
    • Reading temperatures, fan speeds, statistical data and switch settings
    • Reading operating hours (power-on hours)
    • Reading user and factory settings
    • Reading software versions
    • Updating and backing up BIOS and firmware
    • Creating reports about the current system (support assistance)
    • Setting the SDL equalizer value when adjusting SDL cables
    • Changing the user serial ID


    Question:How can Automation Panel 900 5AP920.1043-K04 screen burn-in be avoided?

    Answer:
    • By constantly changing between static and dynamic images
    • By avoiding excessive brightness differences between foreground and background elements
    • By using colors with similar brightness
    • By using complementary colors in follow-up images
    • By using a screensaver


    Common misspellings:

    5AP920.143-K04

    5AP290.1043-K04

    5AP920.1043-Ko4

    5AP920.l043-K04

    5AP920.1043-K041
