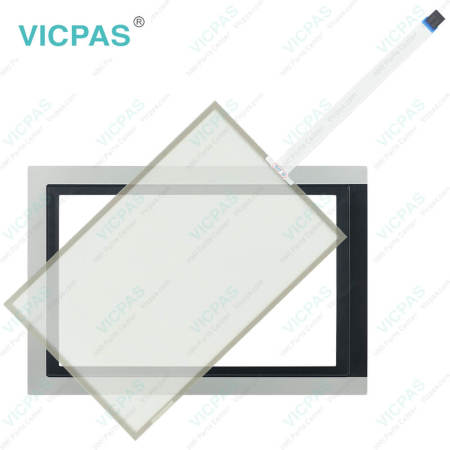

B&R 5AP1120.121E-000 Touch Screen Monitor

B&R 5AP1120.121E-000 Touch Screen Monitor

B&R 5AP1120.121E-000 Touch Screen Monitor
CategoriesAutomation Panel
BrandVICPAS
Model5AP1120.121E-000
Touch screen panel typeResistance touch screen
Size12.1 inch
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Automation Panel 1000 5AP1120.121E-000
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeMar 29,2024
Detail Information

B&R Automation Panel 1000 5AP1120.121E-000 Touch Screen Glass Repair Replacement


Automation Panel 1000 5AP1120.121E-000 Touch Screen Panel HMI Touch Glass

Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200 and Panel PC 3100 systems can be assembled to meet individual requirements and operating conditions. Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200 and Panel PC 3100 systems are flexible so that an Automation Panel can be converted to a Panel PC or vice versa. The following individual components are mandatory for operation as an Automation Panel 1000 5AP1120.121E-000:
• Panel
• Link module


Each Automation Panel 1000 5AP1120.121E-000 key and LED can be individually configured and adapted to the application. Various B&R tools are available for this purpose:
• B&R Key Editor for Windows operating systems
• B&R KCF Editor for Windows operating systems
• Visual Components for Automation Runtime
AP1000 5AP1120.121E-000 Keys and LEDs from each device are processed by the matrix controller in a bit string of 128 bits each. The positions of the Automation Panel 1000 5AP1120.121E-000 keys and LEDs in the matrix are represented as hardware numbers. The Automation Panel 1000 5AP1120.121E-000 hardware numbers can be read directly from the target system using the B&R Key Editor and B&R Control Center, for example.




Specifications:

The table below describes the parameters of the 5AP1120.121E-000 Automation Panel 1000 Touchscreen Panel.

Part Number : 5AP1120.121E-000
Product Line: Automation Panel 1000
Screen diagonal 12.1 in
Warranty: 365 Days Warranty
Input Power 24 VDC
Display Type: TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type: RS232
Storage -20 to 50°C


Related Automation Panel 1000 Series Part No. :

Automation Panel 1000 Description Inventory status
5AP1181.1043-000 B&R Automation Panel 1000 Touch Screen In Stock
5AP1182.1043-000 B&R Automation Panel 1000 Touch Panel Repair In Stock
5AP1120.1214-000 B and R Automation Panel 1000 Touchscreen Available Now
5AP1120.1215-C02 B&R Automation Panel 1000 Touch Screen Glass Available Now
5AP1120.121E-000 Automation Panel 1000 HMI Touch Screen Panel In Stock
5AP1120.1505-000 B&R AP1000 Front overlay Touch Screen Monitor In Stock
5AP1120.1505-C01 B&R Automation Panel 1000 Touch Digitizer Glass In Stock
5AP1120.156B-000 AP1000 B and R HMI Panel Glass Replacement Available Now
5AP1125.1505-I00 B&R AP1000 Protective Film Touch Screen Monitor In Stock
5AP1180.1505-000 Automation Panel 1000 B and R HMI Touch Screen Available Now
5AP1120.1906-000 B&R Automation Panel 1000 Touch Screen Panel In Stock
B and R AP 1000 Description Inventory status

B&R Automation Panel 1000 Manuals PDF Download:

  • B&R Automation Panel 1000 User's Manual
  • B&R Automation PC 2100 User's Manual
  • B&R Panel PC 2100 Built-in Devices User's Manual
  • B&R Panel PC 2200 Built-in Devices User's Manual
  • B&R Panel PC 3100 Built-in Devices User's Manual

  • FAQ:

    Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?

    Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
    To carry out a firmware upgrade, the following steps should be taken:
    • Changing display-specific parameters
    • Reading device-specific keys
    • Updating the key configuration
    • Enabling device-specific LEDs on a membrane keypad or keys
    •Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
    • Reading temperatures, fan speeds, statistical data and switch settings
    • Reading operating hours (power-on hours)
    • Reading user and factory settings
    • Reading software versions
    • Updating and backing up BIOS and firmware
    • Creating reports about the current system (support assistance)
    • Setting the SDL equalizer value when adjusting SDL cables
    • Changing the user serial ID


    Question:How can Automation Panel 1000 5AP1120.121E-000 screen burn-in be avoided?

    Answer:
    • By constantly changing between static and dynamic images
    • By avoiding excessive brightness differences between foreground and background elements
    • By using colors with similar brightness
    • By using complementary colors in follow-up images
    • By using a screensaver


    Common misspellings:

    5AP1120.12E-000

    5AP110.121E-000

    5AP112o.121E-000

    5AP1120.12lE-000

    5AP1120..121E-000
