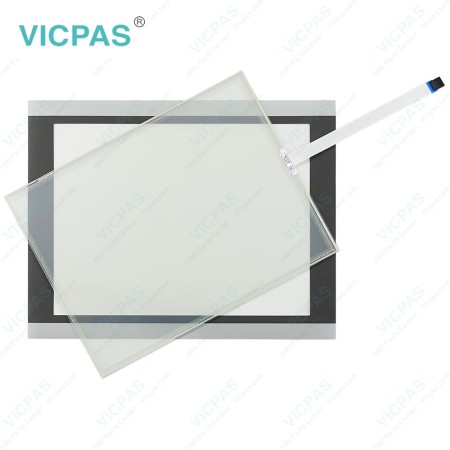

B&R 5AP923.1505-00 Touch Screen Monitor

B&R 5AP923.1505-00 Touch Screen Monitor

B&R 5AP923.1505-00 Touch Screen Monitor
B&R 5AP923.1505-00 Touch Screen MonitorB&R 5AP923.1505-00 Touch Screen MonitorB&R 5AP923.1505-00 Touch Screen MonitorB&R 5AP923.1505-00 Touch Screen Monitor
CategoriesAutomation Panel
BrandVICPAS
Model5AP923.1505-00
Touch screen panel typeResistance touch screen
Size15 inch
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Automation Panel 5AP923.1505-00
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeMar 29,2024
Detail Information

B&R Automation Panel 5AP923.1505-00 Touch Screen Glass Repair Replacement

Automation Panel 5AP923.1505-00 Touch Screen Panel HMI Touch Glass

An Automation Panel 5AP923.1505-00 with max. SXGA resolution is connected to the integrated DVI interface (onboard). As an alternative, an office TFT with a DVI interface or analog monitor (using adapter 5AC900.1000-00) can also be used. A separate cable is used for both the touch screen and USB data. If USB devices are to be operated on the Automation Panel 900, the maximum distance is 5 meters. USB devices can only be connected directly to the Automation Panel (i.e. without a hub).


The following device families can be connected to the B&R Automation Panel 5AP923.1505-00:
• Automation PC 510
• Automation PC 511
• Automation PC 620
• Automation PC 810
• Automation PC 820
• Automation PC 910
• Panel PC 700
• Panel PC 800
• Power Panel 500



  Contact Best Price


Specifications:

The table below describes the parameters of the 5AP923.1505-00 Automation Panel Touchscreen Panel.

Part Number : 5AP923.1505-00
Product Line:Automation Panel
Screen diagonal15 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 70°C


Related Automation Panel Series Part No. :

Automation Panel B&R Description Inventory status
5AP923.1215-00 B&R Automation Panel Touch Screen In Stock
5AP923.1505-00 B&R Automation Panel Touch Panel Repair In Stock
5AP923.1505-I00 B and R Automation Panel HMI Touchscreen Available Now
5AP923.1505-I01 B&R Automation Panel Touch Screen Glass Available Now
5AP923.1906-00 Automation Panel HMI Touch Screen Panel In Stock
5PP920.1505-K15 B&R Automation Panel Touch Digitizer Glass In Stock
5PP920.1505-K16 B and R HMI Panel Glass Replacement Available Now
5PP920.1505-K40 Automation Panel B and R HMI Touch Screen Available Now
5PP920.1505-K42 B&R Automation Panel Touch Screen Panel In Stock
B and R Automation Panel Description Inventory status

B&R Automation Panel Manuals PDF Download:

  • B&R Automation PC 2100 User's Manual
  • B&R Panel PC 2100 Built-in Devices User's Manual
  • B&R Panel PC 2200 Built-in Devices User's Manual
  • B&R Panel PC 3100 Built-in Devices User's Manual

  • FAQ:

    Question:What are the functions of B&R Automation Device Interface (ADI) - Control Center?

    Answer: The functions provided by the Automation Device Interface (ADI) - Control Center vary according to the device series.
    To carry out a firmware upgrade, the following steps should be taken:
    • Changing display-specific parameters
    • Reading device-specific keys
    • Updating the key configuration
    • Enabling device-specific LEDs on a membrane keypad or keys
    •Reading and calibrating control devices (e.g. key switches, handwheels, joysticks, potentiometers)
    • Reading temperatures, fan speeds, statistical data and switch settings
    • Reading operating hours (power-on hours)
    • Reading user and factory settings
    • Reading software versions
    • Updating and backing up BIOS and firmware
    • Creating reports about the current system (support assistance)
    • Setting the SDL equalizer value when adjusting SDL cables
    • Changing the user serial ID


    Question:How can Automation Panel 5AP923.1505-00 screen burn-in be avoided?

    Answer:
    • By constantly changing between static and dynamic images
    • By avoiding excessive brightness differences between foreground and background elements
    • By using colors with similar brightness
    • By using complementary colors in follow-up images
    • By using a screensaver


    Common misspellings:

    AP923.1505-00

    5AP23.1505-00

    5AP932.1505-00

    5AP923.15o5-00

    5AP923.l505-00
