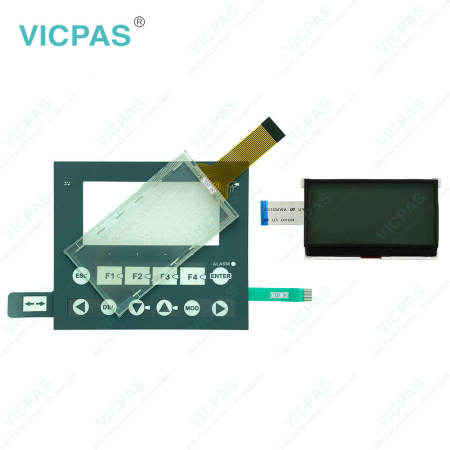

XBTRT511 Schneider Magelis Membrane Keypad Switch

XBTRT511 Schneider Magelis Membrane Keypad Switch

XBTRT511 Schneider Magelis Membrane Keypad Switch
XBTRT511 Schneider Magelis Membrane Keypad SwitchXBTRT511 Schneider Magelis Membrane Keypad Switch
CategoriesFor Schneider Membrane Keyboard Repair
BrandVICPAS
ModelXBTRT511
BrandSchneider
Warranty365 Days
Product LineSchneider Magelis XBT RT series
SupplyXBTRT511 Operator Panel Keypad
ModelXBTRT511
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeJun 13,2024
Detail Information

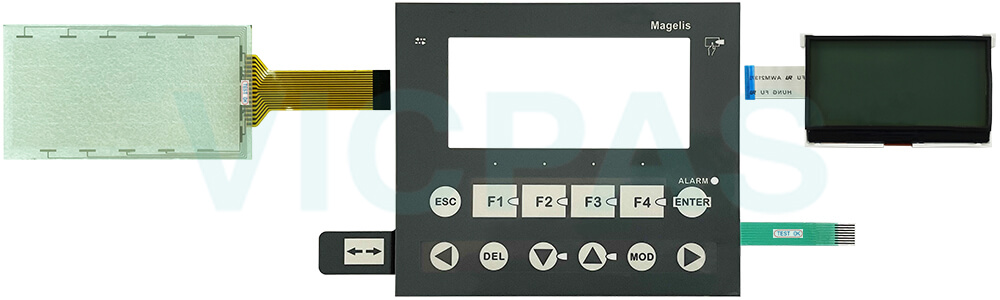

Schneider Magelis HMI XBTRT511 Membrane Keyboard Keypad Repair Part

Order each part separately is available

Schneider Magelis HMI XBTRT511 Membrane Keyboard Keypad Repair Kit

The XBTRT511 Mmebrane Keypad Keyboard terminal polls the missing equipment (usually a PLC) every 5 seconds. All the configured PLCs in an application should be connected. A missing equipment is therefore considered to be a temporary problem, i.e., the PLC or XBTRT511 Terminal keypad HMI is temporarily disconnected, and communication will resume as soon as the connection is re-established. In this arrangement, degraded communication performance is considered acceptable.


XBTRT511 Keypad Membrane terminals are delivered with 2 insert label sheets providing the following label types to assign different texts or symbols to the keys:
 service key labels
 function key labels
 touch key labels
 blank labels


VICPAS supply XBTRT511 Magelis Schneider Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the XBTRT511 Magelis Schneider Membrane Keyboard Keypad.

Part Number: XBTRT511
Display device: Green backlit LCD
Data Entry: Via keypad
Warranty: 365 Days Warranty
Material: Polyester or Polycarbonate
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
Conductive Trace: Silver or Copper
Life Cycle: 5 Million Cycles(up to)


Related Magelis Schneider XBT N/R/RT Series Part No. :

Schneider XBT N/R/RT Description Inventory status
XBTN200 Schneider Mgelis XBT N Operator Keyboard Repair In Stock
XBTN400 Schneider Mgelis XBT N Membrane Keypad Keyboard In Stock
XBTN401 Magelis HMI XBT N Schneider Keyboard Membrane Replacement Available Now
XBTN410 Magelis Schneider XBT N Switch Membrane Repair In Stock
XBTNREQ3841G3 XBT N Schneider Magelis HMI Terminal Keypad Available Now
XBTNU400 Schneider Magelis XBT N Keyboard Membrane Repair In Stock
XBTPREQ3675G1 Schneider Terminals Membrane Keypad Keyboard In Stock
XBTR400 Schneider Magelis XBT R Switch Membrane Repair In Stock
XBTR410 Schneider XBT R Membrane Keypad Replacement Available Now
XBTR411 Magelis Schneider XBT R HMI Switch Membrane Repair Available Now
XBTRT500 Magelis XBT RT Keyboard Membrane Replacement In Stock
XBTRT511 Schneider Magelis XBT RT HMI Switch Membrane Repair Available Now
Magelis XBT N/R/RT Description Inventory status


Schneider XBT HMI Manuals PDF Download:

  • Schneider MAGELiS® Operator Terminals Guide
  • Schneider MAGELiSä XBT Operator Interface Brochure
  • Magelis™ XBTN and XBTR Small Panels PDF
  • Schneider Magelis_XBTN_XBTNU400 Product Datasheet
  • Magelis Schneider XBT N_R_RT Compact Display Units User Manual

  • FAQ:

    Question: What is the display resolution of XBTRT511 Keyboard Membrane?

    Answer: The Schneider Terminal XBTRT511 Keyboard Membrane Terminal display is 122 x 32 pixels


    Question: How to connect Schneider Magelis XBT RT500 to a PC?

    Answer: XBTRT500 terminals can be connected to a PC in 2 different ways:
     via the serial port of the PC using the Schneider cable XBT Z945 and the adaptor XBTZRT999
     via the USB port of the PC using the Schneider cables XBT Z925 and TSXCUSB485
    Connecting XBT RT500 to a serial port of a PC using the Schneider cable XBT Z945 and the adaptor XBT ZRT999
    How to connect Magelis Schneider Terminal XBT RT500 to a PC?
    How to connect Schneider Magelis XBT RT500 to a PC?
