SIGMATEK TTAE534 Touchscreen Panel Repair Replacement

SIGMATEK TTAE534 Touchscreen Panel Repair Replacement

SIGMATEK TTAE534 Touchscreen Panel Repair Replacement
SIGMATEK TTAE534 Touchscreen Panel Repair ReplacementSIGMATEK TTAE534 Touchscreen Panel Repair Replacement
CategoriesSigmatek HMI
BrandVICPAS
ModelSIGMATEK TTAE534
Touch screen tapesResistance touch screen
BrandSIGMATEK
Warranty365 days
Model01-240-534-F Touch Anzeigeeinheit TTAE534
Size8.4 inch
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icondoc iconxls iconrar icon
Update TimeApr 24,2024
Detail Information

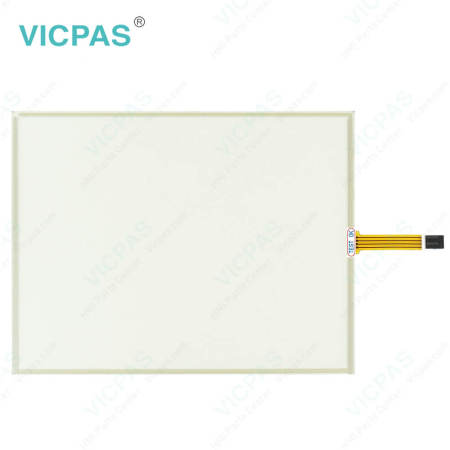

SIGMATEK 01-240-534-F Touch Anzeigeeinheit TTAE534 Front Overlay Touch Screen Glass


SIGMATEK 01-240-534-F Touch Anzeigeeinheit TTAE534 Front Overlay Touch Screen Glass Repair Replacement

The exchangeable buffer battery ensures that the clock time (RTC) is preserved in the absence of a supply voltage. A lithium battery is installed at the manufacturer. The TTAE534 Touch screen pane glass protective film Terminal battery has enough capacity to preserve data in the absence of a supply voltage for up to 7 years. VICPAS supply SIGMATEK Touch Anzeigeeinheit TTAE 534 touchscreen panel with protective film overlay, all of them are brand new with 365 days VICPAS warranty.

With the 01-240-534-F Touch Anzeigeeinheit TTAE534, the communication for a real-time Ethernet Touch Anzeigeeinheit bus network can be analyzed. The connection is made over a free Touch Anzeigeeinheit port. If no port is available, an existing Touch Anzeigeeinheitbus connection can simply be removed and the Touch Anzeigeeinheit inserted. The Touch Anzeigeeinheit TTAE 534 is operated through menus over the touch screen. On the 8.4" VGA TFT color display, diagnostic data are clearly shown. An internal Compact Flash serves as the storage medium for the operating system, application and analysis data. The Touch Anzeigeeinheit has a USB socket for connecting external storage devices. The analysis data can also be loaded under windows with the Touch Anzeigeeinheit software. The software is installed with the CD provided.


Specifications:

The table below describes the parameters of the Sigmatek TTAE534 Touchscreen Panel Protective Film.

Part Number : TTAE534
Product Line: Sigmatek
Screen diagonal 8.4 in
Warranty: 365 Days Warranty
Input Power 24 VDC
Display Type: TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type: RS232
Storage -20 to 70°C


Related Sigmatek Panel Part No. :

Touch Anzeigeeinheit Description Inventory status
TAE 0811 Sigmatek Touch Anzeigeeinheit Touch Screen Repair In Stock
TAE 121 Sigmatek Touch Anzeigeeinheit Touchscreen Repair In Stock
TAE 151 Touch Anzeigeeinheit Sigmatek Touch Panel Replacement Available Now
TAE 1921 Touch Anzeigeeinheit Sigmatek HMI Touch Screen Glass Available Now
TAE 1921-K Sigmatek Touch Anzeigeeinheit Touch Screen Panel Repair In Stock
TAE 1922-K Sigmatek Touch Anzeigeeinheit Touch Membrane Repair In Stock
TAE 1931 SIGMATEK Touch Anzeigeeinheit HMI Touch Glass Repair In Stock
TAE 1941 Sigmatek Anzeigeeinheit Touch Digitizer Glass Repair Available Now
TTAE534 Sigmatek Touch Anzeigeeinheit HMI Panel Glass Replacement Available Now
SIGMATEK HMI Description Inventory status

SIGMATEK TAE1921 Control Panel Manuals PDF Download:

  • Sigmatek TAE1921 Controller User Manual
  • Sigmatek TAE 1921 HMI Datasheet

  • FAQ:

    Question:What are the functions of Sigmatek TTAE534 Touch Protective Foil?

    Answer: To extend the lifespan of the touch screen as must as possible, a protective foil is places of the touch field.
    The foil adds the following properties.
    • High chemical stability
    • Hard surface
    • Splitter protection
    • Easy to clean
    • Matt anti-reflective surface


    Question:What is the price of SIGMATEK TTAE 534 Front Overlay and Touch Screen Panel?

    Answer: Submit a quote request, send us an email for our best price.


    Question:How to Cleaning 01-240-534-F SIGMATEK TTAE 534 Touch Screen Panel Glass?

    Answer:

    CAUTION!
    Before cleaning the touch screen, the terminal must first be turned off to avoid unin-tentionally triggering functions or commands!

    The SIGMATEK TTAE 534 terminal's touch screen can only be cleaned with a soft, damp cloth. To dampen the cloth, a screen-cleaning solution such as an antistatic foam, water with detergent or alcohol should be used. First spray the cleaning fluid on the cloth and not directly on the terminal. The cleaning solution should not be allowed to reach the terminal electronics, for example, through the ventilation slots.


    No erosive cleaning solutions, chemicals, abrasive cleansers or hard objects that can scratch or damage the touch screen may be used.


    If the terminal is soiled with toxic or acidic chemicals, quickly and carefully clean the termi-nal to prevent corrosion.


    To ensure the optimal function of the terminal, the touch screen should be cleaned at regular intervals!

    To extend the lifespan of the touch screen as much as possible, using the fingers to operate the terminal is recommended.

    Common misspellings: :

    TTAE34
    TTE534
    TTEA534
    TTAE354
    77AE534
    TTAE5534
    TTAE5344
