Delta DOP-112WX Protective Film Touch Panel Repair

Delta DOP-112WX Protective Film Touch Panel Repair

Delta DOP-112WX Protective Film Touch Panel Repair
Delta DOP-112WX Protective Film Touch Panel RepairDelta DOP-112WX Protective Film Touch Panel RepairDelta DOP-112WX Protective Film Touch Panel RepairDelta DOP-112WX Protective Film Touch Panel RepairDelta DOP-112WX Protective Film Touch Panel Repair
CategoriesOther Delta HMI Replacement
BrandVICPAS
ModelDOP-112WX
BrandDelta
Size12 inch
Warranty365 Days
Product LineDelta DOP-100 Series
SupplyDOP-100 Touch Screen Protective Film
Part NumberDOP-112WX
Shipping2-4 workdays
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update TimeJun 13,2024
Detail Information

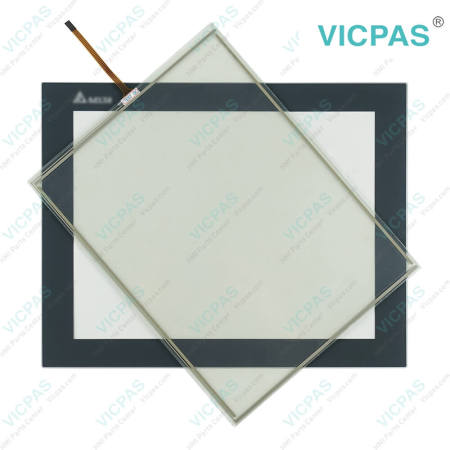

Delta DOP-100 Series DOP-112WX Protective Film Touch Digitizer Replacement

Order each part separately is available

Delta DOP-100 DOP-112WX Front Overlay Touch Screen Repair Replacement

With advanced communication capabilities and enhanced functions, the DOP-100 Series DOP-112WX elevates machine efficiency to bring more value to our customers, and to achieve "Automation for a Changing World"! VICPAS supply Delta DOP-100 Series DOP-112WX Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.


The DOP-100 Series DOP-112WX Protective Film Touch Panel Human Machine Interfaces include a Basic DOP-112WX Front Overlay Touchscreen HMI, Standard HMI and Advanced HMI for different applications. The DOP-112WX Touch Panel Glass Protective Film HMIs adopt the latest Cortex-A8 / Dual Core high-speed processor and 65,536 color LCD screen with high brightness and contrast. In addition, they are equipped with the DOP-112WX Touch Screen Monitor Front Overlay HMI programming software DOPSoft 4.0 and built-in Lua editor for easy programming as well as alarm / history log / user authority functions for highly efficient management.




Specifications:

The table below describes the parameters of the Delta DOP-100 DOP-112WX Front Overlay Touch Screen Monitor HMI Parts.

Backlight: LED Back Light
Display Resolution: 1024 x 768 pixels
Cooling Method: Natural air circulation
Product Line: Delta DOP-100
Touch Size: 12"
Brand: Delta
Display Type: TFT LCD
Operation Temperature: 0 °C ~ 50 °C
Storage Temperature: -20 °C ~ +60 °C
Warranty: 365 Days


Related Delta DOP-100 Series HMI Part No. :

Delta DOP-100 HMI Description Inventory status
DOP-108IG Delta DOP-100 Series Touch Screen Protective Film Replacement In Stock
DOP-110CG Delta DOP-100 Series Protective Film Touch Panel Repair Available Now
DOP-110CS Delta DOP-100 Series Touchscreen Protective Film Repair In Stock
DOP-110IG Delta DOP-100 Series Protective Film HMI Panel Glass Available Now
DOP-110IS Delta DOP-100 Series Front Overlay Touch Screen Monitor In Stock
DOP-110WS Delta DOP-100 Series HMI Touch Screen Glass Protective Film Available Now
DOP-112MX Delta DOP-100 Series Touch Screen Panel Front Overlay Repair In Stock
DOP-112WX Delta DOP-100 Series Front Overlay Touch Membrane In Stock
DOP-115MX Delta DOP-100 Series Touch Glass Front Overlay Repair In Stock
DOP-115WX Delta DOP-100 Series Touch Digitizer Glass Overlay Repair Available Now
Delta DOP-100 Series Description Inventory status


Delta DOP-100 Series HMI Manuals PDF Download:

  • Delta DOP-100 New Functions Operating Instruction Manual
  • DELTA HMI DOP-103WQ-107WV-110WS Instruction Sheet
  • Delta Human Machine Interface DOP-100 Series
  • DOP-100 Series Transition Manual
  • DOP-100 User Manual
  • DOP-103BQ Instruction Sheet

  • FAQ:

    Question: How do I fix the problem if the Delta DOP-112WX Front Overlay Touch Screen Human Machine Interface (HMI) is unable to connect to the computer through the connection cable?

    Answer:
    Generally, the connection between the DOP-112WX Touch Panel Protective Film HMI and computer is established through a USB type B connection wire for uploading and downloading. The user has to configure the HMI in accordance with different computer operating systems. Go to Options > Configuration > Others > USB Download
    1. For Windows XP, the upload/download mode should be set to 0 (normal mode).
    2. For Windows 7, 8, or 10, the upload/download mode should be set to 1 (disk mode)
    3. If the USB permission is restricted by the IT department, please set to mode 2 (CDC mode). If the connection between the DOP-112WX Touch Digitizer Front Overlay HMI and computer is not established before the beginning of the project, new settings won't be uploaded or downloaded. In this case, the user has to set up the system by pressing the system menu from the back of the DOP-112WX Protective Film Touchscreen Panel HMI.
    Please follow the steps below.
    1. Press the system menu button on the back of the DOP-112WX Touch Screen Monitor Front Overlay HMI for 2 to 3 seconds. When the button is pressed, the buzzer will respond with a "beep" as notification (this is normal, not a warning).
    2. Upon entering the DOP-112WX Protective Film Touch Screen Panel Glass HMI system menu, press the screen to enter System Setting > Misc. > USBCommMode and set the mode as 0 or 1 or 2.
    3. After setting up, press the top right corner to go back to the DOP-112WX Touch Panel Overlay HMI project screen.

    Common misspellings:

    DOP-12WX
    OP-112WX
    DOP1-12WX
    DOP-11ZWX
    DOP--112WX
