DOP11A-20 SEW EURODRIVE Membrane Switch Repair

DOP11A-20 SEW EURODRIVE Membrane Switch Repair

DOP11A-20 SEW EURODRIVE Membrane Switch Repair
CategoriesSEW EURODRIVE
BrandVICPAS
ModelDOP11A-20
Warranty365 Days
SupplySEW EURODRIVE Repair Kit
Shipping2-3 workdays
KeywordOperator Panel Keypad
BrandVICPAS
Model8248028
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeJune 5,2023
Detail Information

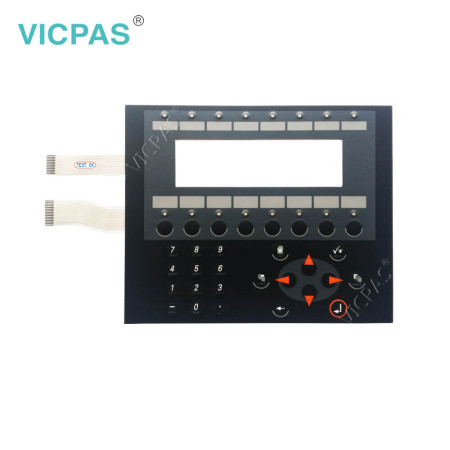

SEW EURODRIVE HMI DOP11A-20 8248028 Membrane Keyboard Repair Replacement


SEW EURODRIVE HMI DOP11A-20 Membrane Keyboard Keypad Replacement

The Functions of DOP11A-20 8248028 Membrane Keyboard Keypad :
• 240 x 64 pixel LCD graphic display (monochrome) with background illumination
• Voltage supply: DC 24 V, 450 mA
• Two serial interfaces (RS-232 and RS-422); two can be used simultaneously
• IP65 membrane keypad with navigation keys, numeric keypad and 8 function keys
• 16 LEDs (two colors red / green)
• 1 expansion slot
• 400 Kbytes Flash EEPROM
• Outer dimensions 214 x 194 x 75 mm


The functions of the DOP11A Series DOP11A-20 8248028 operator Panel Keypad terminals allow for a graphical or text-based display of the process. There are also functions for:
• Alarm handling
• Print
• Trends
• Recipe handling
• Time control


VICPAS supply SEW EURODRIVE HMI DOP11A-20 Membrane Keypad Switch with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the DOP11A-20 SEW EURODRIVE Parts.

Part Number: DOP11A-20 8248028
Brand: SEW EURODRIVE
Series Interfaces: RS232 & RS422
Warranty: 365 Days
Flash EEPROM: 400 Kbytes
Display Resdution: 240 x 64 pixels
Operating Temperature: -10 ° to +60 °C
Storage Temperature: -20 ° to +70 °C
Display Resdution: 240 x 64
Function keys: 8 input


Related SEW EURODRIVE Part No. :

SEW EURODRIVE Description Inventory status
DOP11A-10 DOP11A-10 SEW EURODRIVE Membrane Keyboard Repair In Stock
DOP11A-20 DOP11A-20 SEW EURODRIVE Membrane Switch Repair Available Now
DOP11A-30 DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair part In Stock
DOP11A-40 DOP11A-40 SEW EURODRIVE Operator Panel Keypad Repair Available Now
DOP11A-50 DOP11A-50 SEW EURODRIVE HMI Touch Screen Repair In Stock
OPT71C-120 OPT71C-120 SEW EURODRIVE Panel Glass Protective Film Replacement In Stock
OPT71C-150 SEW EURODRIVE OPT71C-150 Protective Film Touch Screen Repair In Stock
SEW EURODRIVE HMI Description Inventory status


SEW EURODRIVE HMI Manuals PDF Download:

  • DOP11A Operator Terminals System Manuals 2006-05
  • DOP11A Operator Terminals Operating Instructions 2006-05
  • DOP11A Operator Terminals Operating Instructions
  • Operator Panels DOP11A Series Brochures 2004-04


  • FAQ:

    Question:How to set the contrast of DOP11A-20?

    Answer:Contrast is set in operating mode by jumping to system block 997.You can increase the brightness of the monitor by pressing the <+> function key.You can reduce the brightness by pressing the <-> function key.Press to return to the previous level.

    The contrast is affected by the ambient temperature. If the terminal is programmed at a room temperature far below the one at the installation site, you will have to adjust the contrast in the actual ambient temperature after 15 - 30 minutes.


    Question:What is the display data of DOP11A-20?

    Answer:1.Graphics resolution (pixels):240 x 64
    2.Line x characters text: Graphic
    3.Active screen size, WxH: 127.2 x 33.9 mm
    4.Background lighting:50,000 h at an ambient temperature of +25 °C. LED.
    5.Contrast setting:Via system block
    6.Screen:LCD screen (liquid cristal), 240 x 64 pixels, monochrome, 4 lines with 20 characters each or 8 lines with 40 characters each.
