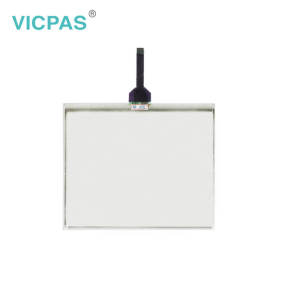

DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair kit

DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair kit

DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair kit
DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair kitDOP11A-30 SEW EURODRIVE Touch Screen Panel Repair kit
CategoriesSEW EURODRIVE
BrandVICPAS
ModelDOP11A-30
Warranty365 Days
SupplySEW EURODRIVE Repair Kit
Shipping2-3 workdays
KeywordTouch Screen Digitizer
BrandVICPAS
Model8248036
Size5.7 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeMay 30,2024
Detail Information

SEW EURODRIVE HMI DOP11A-30 8248036 Touch Screen Digitizer Repair Replacement


SEW EURODRIVE HMI DOP11A-30 Touch Screen Panel Replacement

The Functions of SEW EURODRIVE DOP11A-30 8248036 HMI Touch Panel:
• 320 x 240 pixels, ¼ VGA touch screen (256 colors, STN, 5.7") with backgroun illumination
• Voltage supply: DC 24 V, 450 mA
• Three serial interfaces (RS-232, RS-422 and RS-485); two can be used simultaneously
• IP65
• Horizontal or vertical installation
• 1 expansion slot
• 400Kbyte Flash EEPROM
• Outer dimensions 200 x 150 x 74 mm


The SEW EURODRIVE DOP11A Series DOP11A-30 8248036 touchscreen operator panels of the DOP series come equipped with two serial interfaces as standard. Both interfaces can operate at the same time and can be configured to different functions:
– Communication with drive electronics
– Programming interface
– Modem interface
– Communication with selected PLCs
The SEW EURODRIVE DOP11A-30 8248036 touch panel operator panels can be integrated into a fieldbus or network topology via PROFIBUS or ETHERNET interface.


VICPAS supply SEW EURODRIVE HMI DOP11A-30 Touch Panel Glass with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the DOP11A-30 SEW EURODRIVE Parts.

Part Number: DOP11A-30 8248036
Brand: SEW EURODRIVE
Warranty: 365 Days
Size: 5.7 inches
Flash EEPROM: 400 Kbytes
Display Resdution: 320 x 240 pixels
Operating Temperature: -10 ° to +60 °C
Storage Temperature: -20 ° to +70 °C
Display Type: STN Color LCD
Series Interfaces: RS-232, RS-422 or RS-485


Related SEW EURODRIVE Part No. :

SEW EURODRIVE Description Inventory status
DOP11A-10 DOP11A-10 SEW EURODRIVE Membrane Keyboard Repair In Stock
DOP11A-20 DOP11A-20 SEW EURODRIVE Membrane Switch Repair Available Now
DOP11A-30 DOP11A-30 SEW EURODRIVE Touch Screen Panel Repair part In Stock
DOP11A-40 DOP11A-40 SEW EURODRIVE Operator Panel Keypad Repair Available Now
DOP11A-50 DOP11A-50 SEW EURODRIVE HMI Touch Screen Repair In Stock
OPT71C-120 OPT71C-120 SEW EURODRIVE Panel Glass Protective Film Replacement In Stock
OPT71C-150 SEW EURODRIVE OPT71C-150 Protective Film Touch Screen Repair In Stock
SEW EURODRIVE HMI Description Inventory status


SEW EURODRIVE HMI Manuals PDF Download:

  • DOP11A Operator Terminals Operating Instructions
  • DOP11A Operator Terminals System Manuals 2005-01
  • DOP11A Operator Terminals System Manuals 2006-05
  • Operator Panels DOP11A Series Brochures 2004-04


  • FAQ:

    Question: Which models can be connected to RS-485?

    Answer: Connecting RS-485 (only for DOP11A-10, DOP11A-20 from HW1.10 and DOP11A-30),You can connect up to 31 MOVIDRIVE® units to one operator terminal with the RS-485 interface. Connecting the DOP11A unit to a MOVIDRIVE® frequency inverter directly via RS-485:

    • DOP11A-10 via 25-pin Sub-D connector
    • DOP11A-20 via 25-pin Sub-D connector (from HW 1.10)
    • DOP11A-30 via Phoenix plug-in terminal strip


    Question: What is the size of DOP11A-30 Touch Screen monitor?

    Answer: The DOP11A-30 touchscreen glass is 5.7-inch.


    Question: What is the DOP11A Series DOP11A-30 Touchscreen HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    DOP11A30
    DPO11A-30
    DOP11-A30
    DOP111A-30
    DOP11A-300
