2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film

2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film

2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film
2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film
CategoriesPanelView 5500
BrandVICPAS
Model2715-T12WA
Warranty365 Days
Product LineAllen-Bradley PanelView 5500 Replacement
TypesResistive Touch Panel Front Overlay LCD Display
Shipping2-3 workdays
Size12.1 inches
FPC10 wires
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeJul 22,2024
Detail Information

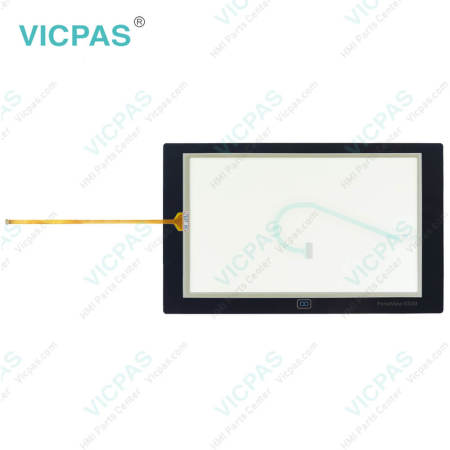

Allen Bradley PanelView 5500 HMI 2715-T12WA Touch Screen Monitor Protective Film Replacement

Order each part separately is available

Allen-Bradley PanelView 5500 HMI 2715-T7CD-B Touchscreen Protective Film Replacement


The 2715-T12WA Screen HMI Touch Screen Protective Film LCD Display terminals include these features and capabilities:

• Supports a maximum of 50 user-defined screens (the screens will increase in future firmware).

• Supports a maximum of 500 Logix-based alarms (the alarms will increase in future firmware).

• Ethernet communication supporting Device Level Ring (DLR), linear, or star network topologies.

• High-speed human machine interface (HMI) button control and easily configured navigation menu.


The Studio 5000 environment includes these applications:

• View Designer – you can create and design a project for a specific the 2715-T12WA Touch Panel Glass Front Overlay LCD Display terminal and download the project to the terminal. You can create an application for any PanelView 5500 terminal and reuse that same application across the entire platform.

• Logix Designer – you can develop control logic for a CompactLogix or ControlLogix controller and download the logic to the controller.


VICPAS supply Allen Bradley PanelView 5500 HMI 2715-T12WA Resistive Touch Panel, Front Overlay and LCD Screen Display with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 2715-T12WA PanelView 5500 Parts.

Part Number: 2715-T12WA
Display Resolution: 1280 x 800 WXGA, 16:10
Backlight: LED, non-replaceable
Brightness: 300 cd/m2 (Nits)
Input Voltage: 100…240V AC
USB Host Ports: 0.5A at 5V DC
Warranty: 365 Days
Status Indicators: STS (green), ERR (red)
Color Depth: 18-bit color graphics
View Area(W x H): 261 x 163 mm


Related Allen Bradley PanelView 5500 Terminals Part No. :

PanelView 5500 Description Inventory status
2715-B10CA 2715-B10CA PanelView 5500 Keyboard Touch Display Repair In Stock
2715-B10CA-B 2715-B10CA-B Keyboard Touch LCD Display Replacement Available Now
2715-B10CD PanelView 5500 2715-B10CD Touch Keypad Display Repair In Stock
2715-B10CD-B 2715-B10CD-B Display Keyboard Glass Repair Replacement Available Now
2715-T10CA PanelView 5500 2715-T10CA Panel Glass Protective Film In Stock
2715-T10CA-B 2715-T10CA-B PanelView 5500 Film Display Touch Reapir In Stock
2715-T10CD 2715-T10CD PanelView 5500 Overlay Panel Glass Repair In Stock
2715-T10CD-B PanelView 5500 2715-T10CD-B Front Overlay Touch Repair Available Now
2715-T12WA 2715-T12WA 12.1'' PanelView 5500 HMI Touch Panel Film Available Now
2715-T12WA-B PanelView 5500 2715-T12WA-B Panel Glass Film Repair kit In Stock
2715-T12WD PanelView 5500 2715-T12WD Touch Overlay Display Repair In Stock
2715-T12WD-B 2715-T12WD-B PanelView 5500 Panel Glass Overlay Display In Stock
PanelView 5500 HMI Description Inventory status

PanelView 5500 HMI Manuals PDF Download:

  • Allen-Bradley PanelView 5500 Terminals User Manual
  • Allen-Bradley PanelView Standard Terminal Specifications
  • PanelView 5500 Specifications Technical Data

  • FAQ:

    Question: What do the two indicators on the back of the terminal do?

    Answer: The back of the 2715-T12WA LCD Display Screen Protective Film Touch Screen Hmi terminal has two indicators to identify system status:

    • STS indicator (green) indicates that the 2715-T12WA Touch Digitizer Monitor Front Overlay LCD Display terminal is on and in use.

    • ERR indicator (red) indicates hardware and firmware faults. At startup, the STS and ERR indicators blink on and off, then the STS indicator blinks to signal progress during startup. If the indicators remain off, check the power cable. After a successful startup, the STS indicator remains on.

    What do the two indicators on the back of the terminal do?


    Question: How to connect the 2715-T12WA Touch Digitizer Monitor Protective Film LCD Display Screen operator terminal to a DC power source?

    Answer:

  • 1. Verify that the wiring is not connected to a power source.
  • 2. Strip 7 mm (0.28 in.) of insulation from the ends of the wires.
  • How to connect the operator terminal to a DC power source?
  • 3.Secure the DC power wires to the marked terminals (+ and –) on the terminal block.
  • Allen-Bradley PanelView 5500 HMI 2715-T12WA LCD Display Protective Film Touchscreen Replacement
  • 4. Secure the earth ground wire to the GND terminal on the terminal block. The GND terminal must be connected to a low-impedance earth ground.
  • 5. Apply power to the PanelView 5500 HMI 2715-T12WA LCD Display Front Overlay Touch Screen Glass operator terminal.

  • Common misspellings:

    275-T12WA
    2715-T2WA
    7215-T12WA
    2715-T12AW
    27715-T12WA
