PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair

PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair

PP865S 3BSE042242R1 15'' Overlay Panel Glass Repair
PP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass RepairPP865S 3BSE042242R1 15'' Overlay Panel Glass Repair
CategoriesPanel 800
BrandVICPAS
ModelPP865S 3BSE042242R1
Warranty365 Days
Product LinePanel 800
TypesProtective Film and Touch Digitizer Monitor
Shipping2-3 workdays
Size15 inches
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download
Update TimeJul 14,2024
Detail Information

Panel 800 PP865S 3BSE042242R1 Touch Screen Panel Front Overlay Repair Replacement

Order each part separately is available

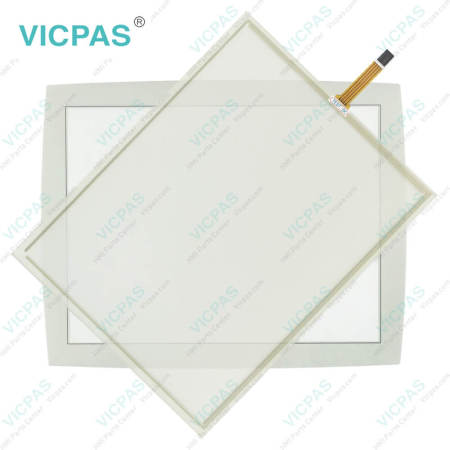

PP865S 3BSE042242R1 Touch Panel Glass Front Overlay Replacement

The description of the PP865S 3BSE042242R1 operator terminal:

Reverse side material: Powder-coated aluminum.

Serial port RS232C: 9-pin D-sub contact, male with standard locking screws 4-40 UNC.

CE approvals: Noise tested according to EN61000-6-4 emission and EN61000-6-2 immunity.

Keyboard material/Front panel: Touch screen: Polyester on glass, 1 million finger touch operations. Overlay: Autotex F157/F207 *.

Serial port RS422/RS485: 25-pin D-sub contact, chassis-mounted female with standard locking screws 4-40 UNC.

Display: TFT-LCD. 1024 x 768 pixels, 64K color. CCFL backlight lifetime at the ambient temperature of +25 °C: >35,000 h.

Real time clock: ±20 PPM + error because of ambient temperature and supply voltage. Total maximum error: 1 min/month at 25 °C Temperature coefficient: -0.034±0.006 ppm/°C2


VICPAS supply Panel 800 PP865S 3BSE042242R1 Touch Digitizer Glass and Protective Film with 365 Days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the PP865S 3BSE042242R1 Panel 800.

Part Number: PP865S 3BSE042242R1
Touch Material: Polyester on glass
Active Area Of Display: 304.1 x 228.1 mm
Backlight: CCFL
Display Type: TFT-LCD
Backlight: CCFL
Overlay Material: Autotex F157/F207 *
Display Resolution: 1024 × 768 pixels
Part Type: New
Warranty: 365 Days


Related Panel 800 Terminals Part No. :

Panel 800 Description Inventory status
PP825A 3BSE042240R3 Panel 800 Series PP825A Touch Screen Protective Film Replacement In Stock
PP845 3BSE042235R1 Panel 800 PP845 Front Overlay Touch Membrane Repair In Stock
PP845A 3BSE042235R2 Panel 800 Series PP845A Touch Glass Front Overlay Repair In Stock
PP846 3BSE042238R1 Panel 800 Series PP846 Terminal Keypad Replacement Repair Available Now
PP846A 3BSE042238R2 Panel 800 PP846A HMI Membrane Keyboard Replacement Available Now
PP865 3BSE042236R1 Panel 800 Series PP865 Touch Screen Monitor Front Overlay In Stock
PP865A 3BSE042236R2 Panel 800 Series PP865A Front Overlay MMI Touch Screen Replacement In Stock
PP865S 3BSE042242R1 Panel 800 Series PP865S HMI Touch Screen Protective Film Available Now
PP871 3BSE069270R1 Panel 800 Series PP871 Protective Film Touchscreen Repair In Stock
PP871 3BSE069270R2 Panel 800 Series PP871 HMI Protective Film Touch Screen Glass Available Now
PP874 3BSE069271R1 Panel 800 Series PP874 Front Overlay Touch Screen Panel Repair In Stock
Panel 800 Repair Description Inventory status

Panel 800 HMI Manuals PDF Download:

  • Compact Product Suite Pane 800 5.1 Data sheet
  • 3BSE043448R501 en Panel 800 PP865 5.1 Hardware and Installation

  • FAQ:

    Question: How to install the PP865S 3BSE042242R1 operator terminal?

    Answer:

    1. Unpack and check the delivery. If damage is found, notify the supplier.

    PP865S 3BSE042242R1 Touch Panel Front Overlay Repair

    2. Place the panel cut out where the PP865S 3BSE042242R1 operator panel is to be situated, draw along the outer sides of the holes and cut according to the markings.

    PP865S 3BSE042242R1 Touch Panel Front Overlay Repair

    3. Secure the PP865S 3BSE042242R1 operator panel in position, using all the fastening holes and the provided brackets and screws:

    PP865S 3BSE042242R1 Front Overlay Touch Panel Glass Replacement

    4. Connect the cables in the specified order.

    PP865S 3BSE042242R1 Touch Panel Front Overlay Repair

    5. Carefully remove the laminated film over the operator panel display, to avoid static electricity that could damage the panel.


    Question: How to install the PP865S 3BSE042242R1 operator terminal?

    Answer:


    1. Unpack and check the delivery. If damage is found, notify the supplier.

    PP865S 3BSE042242R1 Touch Panel Front Overlay Repair

    2. Disconnect the PP865S 3BSE042242R1 operator panel from the power supply.

    3. Remove the plastic cover from the expansion port.

    PP865S 3BSE042242R1 Touch Panel Front Overlay Repair

    4. Secure the expansion module in position, using the provided screws.

    5. Connect the PP865S 3BSE042242R1 operator panel to the power supply.


    Common misspellings:

    PP85S 3BSE042242R1
    PP865S 3BSE04242R1
    PP865S B3SE042242R1
    PP865S 3BSE042422R1
    PP865S 3BSE0442242R1
