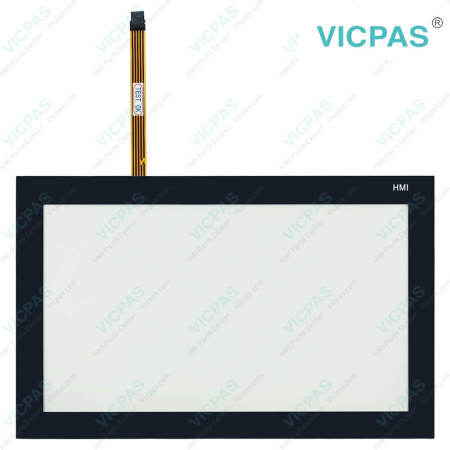

IFP1500 Basic Flat Panel 15" 6AV7862-2BD00-0AA0 Overlay Touchscreen
IFP1500 Basic Flat Panel 15" 6AV7862-2BD00-0AA0 Overlay Touchscreen
| Categories | SIMATIC IPC 377E |
|---|---|
| Brand | VICPAS |
| Model | 6AV7862-2BD00-0AA0 |
| Brand | Siemens |
| Warranty | 365 Days |
| Product Line | IFP1500 Basic Flat Panel 15" display |
| Supply | IFP1500 Touch Screen monitor Overlay |
| Size | 15 inch |
| Name | 6AV78622BD000AA0 |
| Terms of Payment | Western Union, T/T, PayPal, Credit Card |
| Update Time | Apr 30,2024 |
6AV7862-2BD00-0AA0 Siemens SIMATIC HMI IFP1500 Basic Flat Panel 15" display Front Overlay Touch Screen monitor Repair Replacement
Order each part separately is available
Open the 6AV7 862-2BD00-0AA0 Siemens SIMATIC HMI IFP1500 Basic Flat Panel 15" display Touch Screen Digitizer Protective Film Requirement
● The Siemens SIMATIC 6AV72300CA202BA0 HMI IFP1500 Basic Flat Panel 15" display Touch Screen Glass Front Overlay is disconnected from the power supply.
● All cables have been disconnected from the 6AV7 862-2BD00-0AA0 Siemens SIMATIC HMI IFP1500 Basic Flat Panel 15" display HMI Touch Screen Protective Film.
● The Siemens SIMATIC 6AV7862-2BD00-0AA0 HMI IFP1500 Basic Flat Panel 15" display Touch Screen Panel Protective Film has been removed from the control cabinet.
● A T10 screwdriver and a T20 screwdriver.
Based on Intel Celeron process technology, the 6AV72300CA202BA0 Touch Screen Digitizer Protective Film Siemens SIMATIC HMI IFP1500 Basic Flat Panel 15" display Box PC represents a new IPC platform which has been specifically developed for cost-optimized, PC-based applications in industrial and industry-oriented environments.
The 6AV7 862-2BD00-0AA0 Touch Panel Front Overlay Siemens SIMATIC HMI Flat Panel is characterized by industrial touch displays in the sizes 12″, 15″ and 19″ as well as a variety of interfaces. Fast availability from stock as well as the fanless industrial design complete the concept.
Specifications:
The table below describes the parameters of the 6AV7862-2BD00-0AA0 Siemens IFP1500 Basic Flat Panel 15" display Spare Parts.
| Mains Buffering: | 10ms |
| Operation Temperature: | 0℃－40℃ |
| Part Number: | 6AV7862-2BD00-0AA0 |
| Product Line: | IFP1500 Basic Flat Panel |
| Processor Type: | Intel Celeron N3160 |
| Size: | 15 inch |
| Storage Temperature: | -20℃－60℃ |
| Type of Supply Voltage: | 24 V DC |
| Type of Memory: | DDR3L |
| Warranty: | 365 days Warranty |
Related Siemens Simatic Flat Panel No. :
| Simatic IFP HMI | Description | Inventory status |
| 6AV7862-2BC00-0AA0 | SIMATIC IFP1200 Basic Flat Panel 12" Display Touch Screen Protective Film Repair | In Stock |
| 6AV7862-2BC10-0AA0 | SIMATIC IFP1200 Basic Flat Panel 12" Display Front Overlay Touch Panel Repair | Available Now |
| 6AV7862-2BD00-0AA0 | SIMATIC IFP1500 Basic Flat Panel 15" Display Touchscreen Protective Film Repair | In Stock |
| 6AV7862-2BE00-0AA0 | SIMATIC IFP1900 Basic Flat Panel 19" Display Protective Film Touch Screen Glass | Available Now |
| 6AV7862-2BF00-0AA0 | SIMATIC IFP2200 Basic Flat Panel 22" Display Touch Screen Panel Front Overlay | In Stock |
| Basic Flat Panel | Description | Inventory status |
Siemens IFP HMI Manuals PDF Download:
FAQ:
Question: How to prevent damage to the Siemens SIMATIC 6AV7862-2BD00-0AA0 HMI Touch Screen Front Overlay HMI IFP1500 Basic Flat Panel 15" display?
Answer:
• Store the Siemens SIMATIC HMI IFP1500 Basic Flat Panel 15" display 6AV7862-2BD00-0AA0 Touch Screen monitor Overlay in a dry place.
• Bring the 6AV78622BD000AA0 Siemens SIMATIC HMI SIMATIC IFP1500 Basic Flat Panel 15" display Touch Screen Panel Protective Foil to room temperature before starting it up.
• Do not expose the Siemens SIMATIC 6AV7 862-2BD00-0AA0 Touch Screen Glass Front Overlay HMI SIMATIC IFP1500 Basic Flat Panel 15" display to direct heat radiation from a heating device.
• If condensation develops, wait approximately 12 hours or until the 6AV78622BD000AA0 Touchscreen Protective Film Siemens SIMATIC HMI SIMATIC IFP1500 Basic Flat Panel 15" display is completely dry before switching it on.
Question: How to install the Siemens SIMATIC 6AV7862-2BD00-0AA0 Touch Screen monitor Protective Foil HMI SIMATIC IFP1500 Basic Flat Panel 15 display?
Answer:
1. Insert the Siemens SIMATIC 6AV7862-2BD00-0AA0 Touch Screen Glass Front Overlay panel device into the mounting cutout from the front.
2. Insert a mounting clip into the cutout provided on the Siemens SIMATIC 6AV7 230-0CA20-2BA0 Touchscreen Protective Film HMI SIMATIC IFP1500 Basic Flat Panel 15.
3. Tighten the threaded pin to secure the mounting clip. The threaded pins have a maximum tightening torque of 0.5 Nm.
4. Repeat steps 2 and 3 for all mounting clips.
5. Check the fit of the mounting seal.
Common misspellings:
6AV7862-2BD00-0A0AV7862-2BD00-0AA0
6AV7862-2B0D0-0AA0
6AV7862-28D00-0AA0
6AAV7862-2BD00-0AA0
