6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement

6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement

6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement
6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement6AV6642-0BA01-1AX0 Siemens TP177B Touchscreen Replacement
CategoriesTouch Panel
BrandVICPAS
Model6AV6 642-0BA01-1AX0
Warranty365 Days
BrandSiemens
Product LineTP177B PN/DP-6 COLOR
SupplySiemens TP177 HMI Touch Panel and Protecitve film
Size5.7 inch
model6AV6 642-0BA01-1AX0
Partstouchscreen, protective film, lcd display, plastic case housing
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeMar 28,2024
Detail Information

6AV6 642-0BA01-1AX0 Siemens SIMATIC HMI TP177B PN/DP-6 COLOR 6AV6642-0BA01-1AX0 Touch Screen Panel, Overlay, Mounting Clips, LCD Bracket, HMI Case, Power Supply Connector, LCD Gasket, Case Gasket, Screws and LCD Display Repair Replacement

Order each part separately is available

6AV6642-0BA01-1AX0 Siemens SIMATIC HMI TP177B PN/DP-6 COLOR Touch Screen Panel, Overlay, Power Supply Connector, Mounting Clips, Plastic Case, LCD Gasket, Case Gasket, LCD Bracket, Screws and LCD Display Repair Replacement


6AV6642-0BA01-1AX0 SIMATIC TOUCHPANEL TP177B PN/DP STN 265 COLOR-DISPLAY MPI-/PROFIBUS-DP - PROTOCOL RS485-/RS422-/USB - INTERFACE ETHERNET10/100 INTERFACE PRINTER - INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005


The 177 series of panels represents a further advance in the development of the well-known 170 HMI devices. The new TP 177A, TP 177B and OP 177B panels make for more efficient use of text or graphic-based projects for simple to medium-level HMI operating and monitoring tasks in machines and plants. Projects with Asian and Cyrillic character sets can be configured, as usual. The ability to vertically mount the TP 177A and the non-volatile alarm buffer of the TP 177B offer new application possibilities. In addition, the TP 177B and OP 177B – depending on the models – provide interfaces for connecting to PROFIBUS andPROFINET.


The TP 177A, TP 177B and OP 177B panels offer quick commissioning times, large user memory and high performance, and they are optimized for projects based on WinCC flexibility.

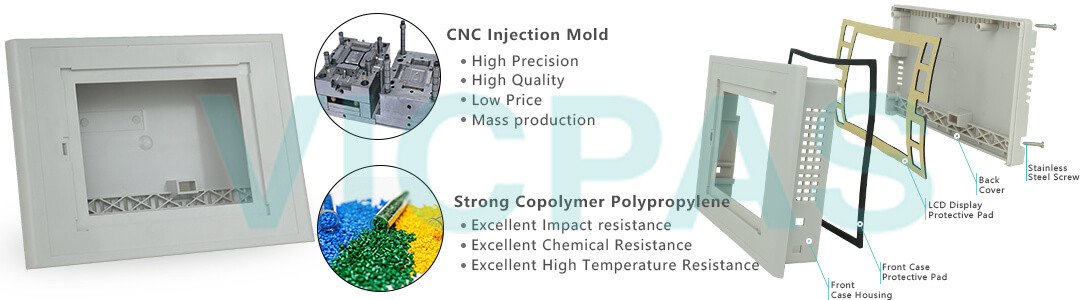

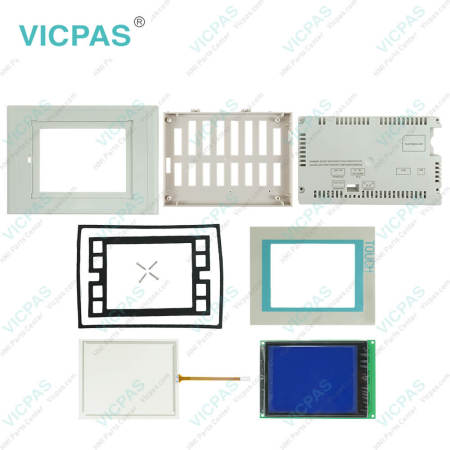

VICPAS supply 6AV6642-0BA01-1AX0 Siemens TP177 touch panel, Overlay, Case Gasket, LCD Gasket, LCD Bracket, Power Supply Connector, Plastic Cover Body, Mounting Clips, Screws and LCD display. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AV6642-0BA01-1AX0 Siemens TP177 HMI Parts.

Part Number : 6AV6 642-0BA01-1AX0
Size 5.7 inch;
Display STN
Warranty: 365 days Warranty
Product Line: Siemens TP177
Resolution: 320 x 240;
Number of colors: 256
Control elements: Touch screen
MTBF: 30 000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP177 Part No. :

Siemens TP177 Description Inventory status
6AV6640-0CA11-0AX1 TOUCH PANEL TP177 MICRO In Stock
6AV6640-0CA11-0AX0 TP177 MICRO In Stock
6AV6642-0AA11-0AX1 TOUCH PANEL TP177A 6" In Stock
6AV6642-5BA10-0DU0 SIPLUS HMI TP177B COLOR PN/DP In Stock
6AV6642-0BC01-1AX0 TP177B DP MONO In Stock
6AG1642-0BC01-4AX1 SIPLUS TP177B mono DP In Stock
6AV6642-0BA01-1AX1 TP177B 6" PN/DP COLOR In Stock
6AV6642-0BC01-1AX1 TP177B 6" DP BLUE MODE In Stock
6AG1642-0BA01-4AX0 SIPLUS HMI TP177B color PN/DP In Stock
6AV6642-0BA01-1AX0 TP177B PN/DP COLOR In Stock
6AG1642-0BA01-4AX1 SIPLUS HMI TP177B COLOR PN/DP In Stock
6AV6642-0AA11-0AX0 TOUCH PANEL TP177A 6" In Stock
6AV6642-8BA10-0AA0 TP177B PN/DP COLOR INOX In Stock
SIMATIC HMI TP177 Description Inventory status

Siemens TP177 HMI Manuals PDF Download:

  • 6AV6642-0BA01-1AX0 Siemens TP177 datasheet pdf
  • Siemens Simatic TP177 Panel manual


  • FAQ:

    Question:What is the use of Siemens TP177B PN/DP-6 COLOR Protective membrane?

    Answer:A protective membrane is available for the HMI device touch screens. The relevant orderinginformation is provided in the Siemens Catalog ST 80. The protective membrane is notincluded in the HMI device package.The self-adhesive membrane prevents the screen from being scratched and soiled. The matsurface of the membrane reduces reflections under unfavorable lighting conditions.The protective membrane can be removed without leaving any adhesive residue on thescreen.


    Question: What is the dimension of the Siemens TP177 Touchscrenn?

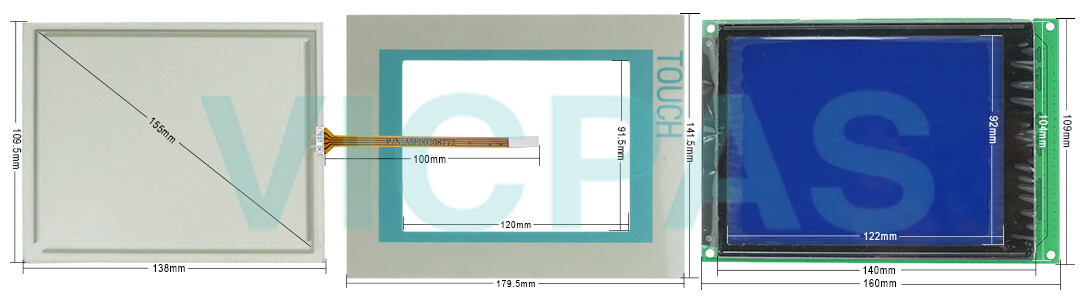

    Answer:The touchscreen of 6AV6642-0BA01-1AX0 SIMATIC TP177 is 5.7 inch,with 138 millimeter long and 109.5 millimeter wide


    Question: Which software options are available for the Siemens TP177B PN/DP-6 COLOR?

    Answer:"WinCC flexible 2004," for example, refers to the configuration software.The term "WinCC flexible" is used in a general context. The full name, for example"WinCC flexible 2004", is always used when it is necessary to differentiate betweendifferent versions of the configuration software.


    Question: What is the 6AV6 642-0BA01-1AX0 Siemens TP177 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Common misspellings:

    6V6642-0BA01-1AX0
    6A6642-0BA01-1AX0
    6AV642-0BA01-1AX0
    6AV642-0BA01-1AX0
    6AV662-0BA01-1AX0
