6AV6642-0AA11-0AX1 Siemens Touch Panel TP177A Replacement
6AV6 642-0AA11-0AX1 Siemens Touch Panel TP177A 6AV6642-0AA11-0AX1 Touch Screen Panel, Overlay, Front Cover and LCD Display Repair Replacement
6AV6 642-0AA11-0AX1 SIMATIC SIMATIC Touch Panel TP 177A 5.7" blue mode STN display, MPI/PROFIBUS DP interface, configurable from WinCC flexible 2004 Compact HSP Contains open source software which is provided free of charge. See enclosed CD
The TP177A series of panels represents a further advance in the development of the well-known170 HMI devices. The new TP 177A, TP 177B and OP 177B panels make for more efficientuse of text or graphic-based projects for simple to medium level HMI operating andmonitoring tasks in machines and plants. Projects with Asian and Cyrillic character sets canbe configured, as usual. The ability to vertically mount the TP 177A and the non-volatilealarm buffer of the TP 177B offer new application possibilities. In addition, the TP 177B andOP 177B – depending on the models – provide interfaces for connecting to PROFIBUS andPROFINET.
OP 177B offers an additional feature. It can now be operated using widely-available touchscreens in addition to the membrane keyboard. The function keys can be configured tosystem keys for specific screens.
The TP 177A, TP 177B and OP 177B panels offer quick commissioning times, large usermemory and high performance, and they are optimized for projects based on WinCC flexible.

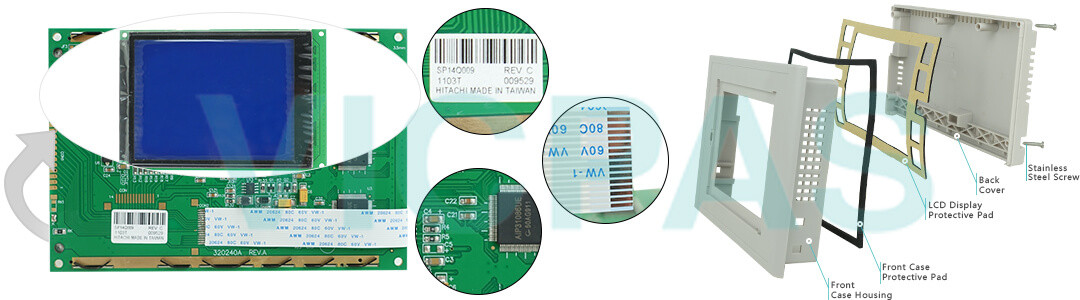

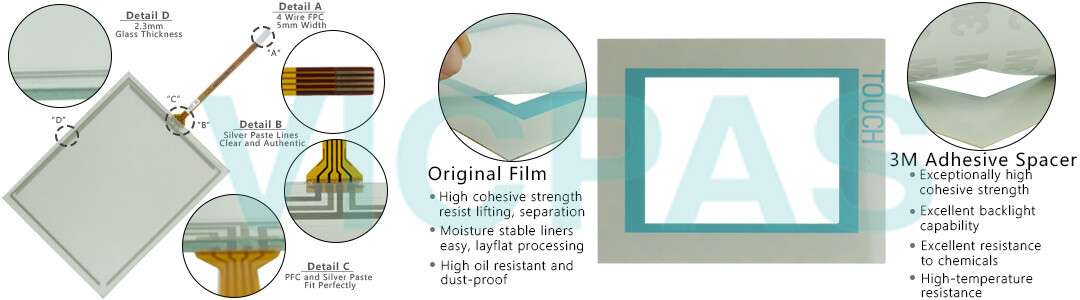

VICPAS supply 6AV6642-0AA11-0AX1 Siemens TP177 touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.
The table below describes the parameters of the 6AV6642-0AA11-0AX1 Siemens TP177A HMI Parts.
|Part Number :||6AV6 642-0AA11-0AX1|
|Warranty:||365 days Warranty|
|Product Line:||Siemens TP177|
|Resolution:||320 x 240;|
|Number of colors:||256|
|Control elements:||Touch screen|
|MTBF:||30 000 h|
|PLC Connection:||SIMATIC S7-200|
Related Simatic TP177 Part No. :
|Siemens TP177||Description||Inventory status|
|6AV6640-0CA11-0AX1||TOUCH PANEL TP177 MICRO||In Stock|
|6AV6640-0CA11-0AX0||TP177 MICRO||In Stock|
|6AV6642-0AA11-0AX1||TOUCH PANEL TP177A 6"||In Stock|
|6AV6642-5BA10-0DU0||SIPLUS HMI TP177B COLOR PN/DP||In Stock|
|6AV6642-0BC01-1AX0||TP177B DP MONO||In Stock|
|6AG1642-0BC01-4AX1||SIPLUS TP177B mono DP||In Stock|
|6AV6642-0BA01-1AX1||TP177B 6" PN/DP COLOR||In Stock|
|6AV6642-0BC01-1AX1||TP177B 6" DP BLUE MODE||In Stock|
|6AG1642-0BA01-4AX0||SIPLUS HMI TP177B color PN/DP||In Stock|
|6AV6642-0BA01-1AX0||TP177B PN/DP COLOR||In Stock|
|6AG1642-0BA01-4AX1||SIPLUS HMI TP177B COLOR PN/DP||In Stock|
|6AV6642-0AA11-0AX0||TOUCH PANEL TP177A 6"||In Stock|
|6AV6642-8BA10-0AA0||TP177B PN/DP COLOR INOX||In Stock|
|SIMATIC HMI TP177||Description||Inventory status|
Siemens TP177 HMI Manuals PDF Download:
Question:What is the use of Siemens TP177 Protective membrane?
Answer:A protective membrane is available for the HMI device touch screens. The relevant orderinginformation is provided in the Siemens Catalog ST 80. The protective membrane is notincluded in the HMI device package.The self-adhesive membrane prevents the screen from being scratched and soiled. The matsurface of the membrane reduces reflections under unfavorable lighting conditions.The protective membrane can be removed without leaving any adhesive residue on thescreen.
Question: What is the dimension of the Siemens TP177A Touchscrenn?
Answer:The touchscreen of 6AV6 642-0AA11-0AX1 SIMATIC TP177 is 5.7 inch,with 138 millimeter long and 109.5 millimeter wide
Question: Which software options are available for the Siemens TP177?
Answer:"WinCC flexible 2004," for example, refers to the configuration software.The term "WinCC flexible" is used in a general context. The full name, for example"WinCC flexible 2004", is always used when it is necessary to differentiate betweendifferent versions of the configuration software.
Question: What is the 6AV6 642-0AA11-0AX1 Siemens TP177 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:6V6 642-0AA11-0AX1
