XBTOT2110 XBTOT2210 Touch Screen Panel Protective Film

Categories

XBTOT2110 XBTOT2210 Touch Screen Panel Protective Film

XBTOT2110 XBTOT2210 Touch Screen Panel Protective Film
XBTOT2110 XBTOT2210 Touch Screen Panel Protective FilmXBTOT2110 XBTOT2210 Touch Screen Panel Protective FilmXBTOT2110 XBTOT2210 Touch Screen Panel Protective Film
CategoriesMagelis XBT G/GC/GH/OT
AlbumView larger image
BrandVICPAS HMI Parts
ModelMagelis XBTOT2110 XBTOT2210
Warranty1 Year VICPAS Warranty
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
ModelMagelis XBTOT2110 XBTOT2210 HMI Part
Size5.7 inch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2019-04-25
Detail Information

Magelis XBTOT2110 XBTOT2210 Touch Screen Panel Protective Film repair replacement

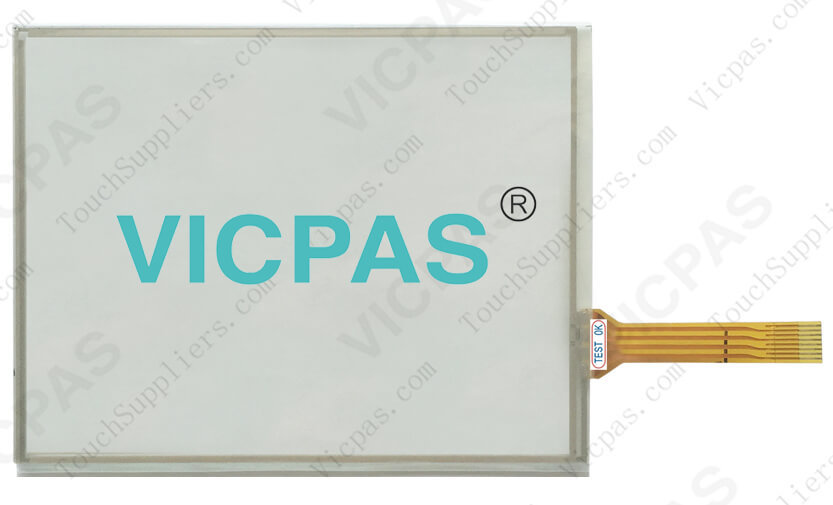

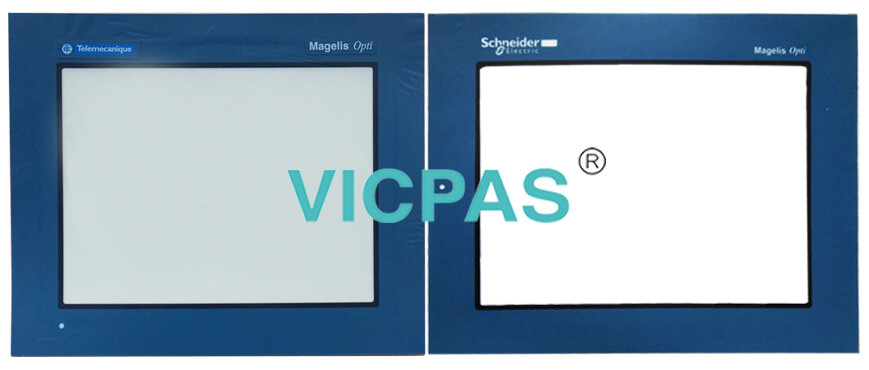

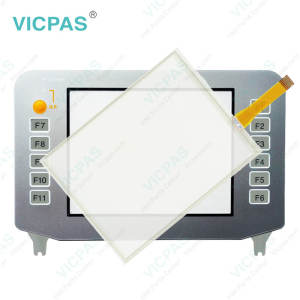

Schneider Electric XBTOT2210 XBTOT2110 Touch Screen PanelSchneider XBTOT2210 XBTOT2110 protective film

The Schneider XBTOT2210 and XBTOT2110 basis HMI touch panel are operator interface with the Windows CE 6.0 operating system. The OT unit’s serial port is not isolated. When the host (PLC) unit is also not isolated, be sure to connect the #5 SG (Signal Ground) terminal to reduce the risk of damaging the RS-232C/ RS-422 circuit. It displays all the operations on a 5.7 screen. The XBTOT2210 display type is STN Color LCD, but the XBTOT2110 display type is Monochrome blue mode LCD, screen resolution are W320 X H240 pixels of them.


The Schneider XBTOT2210 and XBTOT2110 touch panel have an analog resistive surface touch and a LED backlight with a standby time of up to 75,000 hours. It has a battery-backed real-time clock with a battery lifespan of 5 years when used at a temperature below 77 °F. It also has a factory-built internal cache memory of 256 MB for storing the user settings and application parameters.



 Contact VICPAS for More Information


Specifications:

The table below describes the parameters of the XBTOT2210 XBTOT2110 touch screen protective film.

Part Number : XBTOT2110 XBTOT2210
Product Line: Magelis XBTOT Series
Touchscreen Size: 5.7 in.
Warranty: 1-Year Warranty
Touch Technology: Resistive
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times

PDF Download:

  • Magelis XBTOT2210 User Manual PDF
  • Magelis XBTOT2110 User Manual PDF

  • Magelis XBTOT Series Part No.

    Magelis XBT OT Description Inventory status
    XBTOT2110 basis touch panel -5.7-inchIn Stock
    XBTOT2210 basis touch panel -5.7-inchIn Stock
    XBTOT4320 basis touch screen -7.5-inchAvailable Now
    XBTOT5220 basis touchscreen -10.4-inchIn Stock
    XBTOT5320 basis touchscreen -10.4-inchAvailable Now
    Schneider XBT OT Description Inventory status
