6AG1647-0AH11-2AX0 Siemens KP300 Basic Membrane Keyboard

6AG1647-0AH11-2AX0 Siemens KP300 Basic Membrane Keyboard

6AG1647-0AH11-2AX0 Siemens KP300 Basic Membrane Keyboard
CategoriesSimatic KP Series
Warranty6 Months
Product LineKP400 Series
Size3.6 Inch
SupplySiemens KP300 HMI membrane switch
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022-01-19
Detail Information

6AG1647-0AH11-2AX0 Siemens HMI KP300 Basic mono PN membrane keypad Repair Replacement

6AG1647-0AH11-2AX0 Siemens HMI KP300 Basic mono PN membrane keypad Repair Replacement

SIPLUS HMI KP300 Basic mono PN -25...+60°C with conformal coating based on 6AG1647-0AH11-2AX0.SIPLUS extreme represents the product range with refined components on the basis of Siemens Industry standard products.

SIMATIC HMI is expanding its product range of SIMATIC HMI Basic Panels with the KP300 Basic mono PN for basic operator control & monitoring tasks. With immediate effect, the KP300 Basic mono PN is released for delivery.The operator device series of low-cost SIMATIC HMI Basic Panels is ideally suited for the use in compact applications. Until now, it included devices from 4" to 15" with consistent HMI basic functionality across all display sizes. Newly available is the KP300 Basic mono PN with monochrome 3.6" display.The display with a resolution of 240 x 80 pixels offers optimal readability and comes with an LED backlight that can be set to show white, green, red or yellow color. This color adjustment is also possible for individual operating screens and the plant states associated with them (such as alarms) so that additional components for an optical signaling may not be necessary.The operation takes place via 10 system keys and 10 function keys, with the latter being configurable. Entries made using the keypad follow the principle of mobile phones and thus enable quick and intuitive inputs.

VICPAS supply 6AG1647-0AH11-2AX0 Siemens KP300 membrane switch with 6 months warranty and support Urgent Worldwide Shipping.

  Contact Best Price


The table below describes the parameters of the 6AG1647-0AH11-2AX0 Siemens KP300 series HMI Parts.

Part Number : 6AG1647-0AH11-2AX0
MTBF backlighting (at 25 °C): 50 000 h
Screen diagonal3.6 in
Warranty: 6 mouths Warranty
Product Line:Siemens KP300 series
Active power input, typ.:3 W
Mounting position: vertical
Design as touch screen: No
Keyboard fonts:US English
Rated value (DC) 24 V

Related Siemens KP300 Series Part No. :

Siemens KP300 Series Description Inventory status
6AG1647-0AH11-2AX0 SIPLUS HMI KP300 BASIC MONO PN 3,6" In Stock
6AG2647-0AH11-1AX0 SIPLUS HMI KP300 BASIC MONO 3,6" T1 RAIL In Stock
SIMATIC HMI KP300 Series Description Inventory status

Siemens KP300 series HMI Manuals PDF Download:

  • 6AG1647-0AH11-2AX0 SIMATIC HMI KP300 Basic datasheet pdf
  • Siemens Simatic KP300 series HMI operator panel keypad manual

  • FAQ:

    Question: What is the dimension of 6AV6647-0AH11-3AX0 Siemens KP300 touch panel??

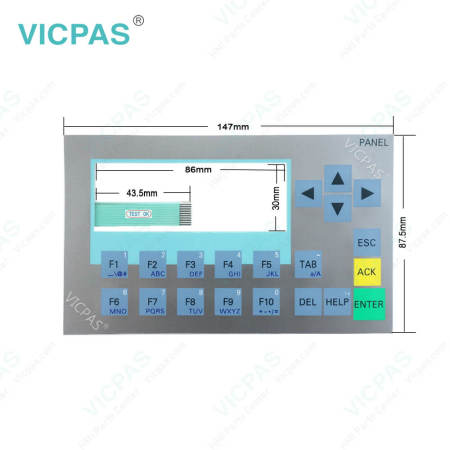

    Answer:The Siemens KP300 series membrane keyboard is 3.6-inch.It is 147 millimeter long and 87.5 millimeters wide.

    Question: Which software for Siemens Simatic KP300 series to program?

    Answer:WinCC (TIA Portal) is the software for all HMI applications – from simple operation solutions withBasic Panels, down to process visualizations onPC-based multi-user systems.independentconfiguration data on various targetsystems without conversion. The interface adjustsitself to the functional properties of the target device.Joint project data (alarm class, project texts, etc.) arecentrally managed in the TIA Portal and can be usedacross different devices. Furthermore, an assistant forHMI configurations is available independently of thedevice which supports the rapid and easy creation ofthe visualization’s basic structure.

    Question: What is the 6AV6647-0AH11-3AX0 Siemens KP300 series HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
