6AG2647-0AH11-1AX0 Siemens KP300 Basic Operator Panel Keypad
6AG2647-0AH11-1AX0 Siemens SIPLUS HMI KP300 BASIC MONO 3,6" T1 RAIL membrane keypad LCD Display HMI Case Power Connector Main Board Mounting Clips Repair Replacement
SIPLUS HMI KP300 Basic mono 3,6" T1 RAIL -25 ... +55°C T1 mit70°C fuer 10 min mit Conformal Coating BasedOn: 6AV6647-0AH11-3AX0 . Basic Panel, Tastenbedienung, 3" FSTN LCD Display,Schwarzweiss, PROFINET Schnittstelle, projektierbar ab WinCCBasic V11/ STEP 7 Basic V11, enthaelt Open Source Software, dieunentgeltlich ueberlassen wird siehe beiliegende CD-ROM
SIMATIC HMI is expanding its product range of SIMATIC HMI Basic Panels with the KP300 Basic mono PN for basic operator control & monitoring tasks. With immediate effect, the KP300 Basic mono PN is released for delivery.The operator device series of low-cost SIMATIC HMI Basic Panels is ideally suited for the use in compact applications. Until now, it included devices from 4" to 15" with consistent HMI basic functionality across all display sizes. Newly available is the KP300 Basic mono PN with monochrome 3.6" display.The display with a resolution of 240 x 80 pixels offers optimal readability and comes with an LED backlight that can be set to show white, green, red or yellow color. This color adjustment is also possible for individual operating screens and the plant states associated with them (such as alarms) so that additional components for an optical signaling may not be necessary.The operation takes place via 10 system keys and 10 function keys, with the latter being configurable. Entries made using the keypad follow the principle of mobile phones and thus enable quick and intuitive inputs.
VICPAS supply 6AG2647-0AH11-1AX0 Siemens KP300 membrane switch, LCD Screen Panel, Power Connector, Main Board, Mounting Clips and Plastic Shell with 6 months warranty and support Urgent Worldwide Shipping.
The table below describes the parameters of the 6AG2647-0AH11-1AX0 Siemens KP300 series HMI Parts.
|Part Number :||6AG2647-0AH11-1AX0|
|MTBF backlighting (at 25 °C):||50 000 h|
|Screen diagonal||3.6 in|
|Warranty:||6 mouths Warranty|
|Product Line:||Siemens KP300 series|
|Active power input, typ.:||3 W|
|Design as touch screen:||No|
|Keyboard fonts:||US English|
|Rated value (DC)||24 V|
Related Siemens KP300 Series Part No. :
|Siemens KP300 Series||Description||Inventory status|
|6AG1647-0AH11-2AX0||SIPLUS HMI KP300 BASIC MONO PN 3,6"||In Stock|
|6AG2647-0AH11-1AX0||SIPLUS HMI KP300 BASIC MONO 3,6" T1 RAIL||In Stock|
|6AV6647-0AH11-3AX0||SIMATIC HMI KP300 BASIC MONO PN||Available Now|
|6AG1647-0AH11-2AX1||SIPLUS HMI KP300 BASIC MONO PN 3,6"||In Stock|
|6AG2647-0AH11-1AX1||SIPLUS HMI KP300 BASIC MONO 3,6" T1 RAIL||Available Now|
|6AV6647-0AH11-3AX1||SIMATIC HMI KP300 BASIC MONO PN||Available Now|
|SIMATIC HMI KP300 Series||Description||Inventory status|
Siemens KP300 series HMI Manuals PDF Download:
Question: What is the dimension of 6AG2647-0AH11-1AX0 Siemens KP300 touch panel??

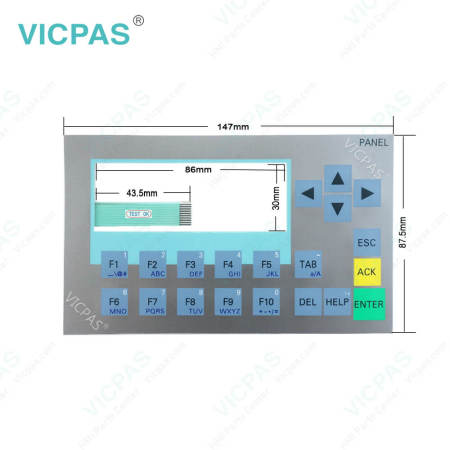

Answer:The Siemens KP300 series membrane keyboard is 3.6-inch.It is 147 millimeter long and 87.5 millimeters wide.
Question: Which software for Siemens Simatic KP300 series to program?
Answer:WinCC (TIA Portal) is the software for all HMI applications – from simple operation solutions withBasic Panels, down to process visualizations onPC-based multi-user systems.independentconfiguration data on various targetsystems without conversion. The interface adjustsitself to the functional properties of the target device.Joint project data (alarm class, project texts, etc.) arecentrally managed in the TIA Portal and can be usedacross different devices. Furthermore, an assistant forHMI configurations is available independently of thedevice which supports the rapid and easy creation ofthe visualization’s basic structure.
Question: What is the 6AG2647-0AH11-1AX0 Siemens KP300 series HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
