Quick Service for Full HMI Parts Replacement
Home / all / Allen Bradley / Panelview 300 /

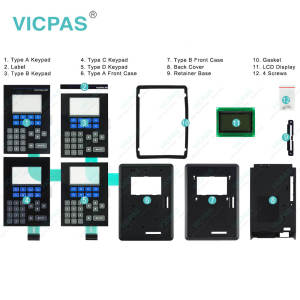

2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad

2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad

2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad
2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad
CategoriesPanelview 300
BrandAllen Bradley
Warranty6 Months
Product LinePanelView 300
Size3 Inch
SupplyPanelView 300 Membrane Keypad
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOC
Update Time2022/6/28
Detail Information

2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad Repair Replacement

 2711-K3A5L1K PanelView 300 Membrane Keyboard Keypad Repair Replacement

The 2711-K3A5L1K is an electronic operator interface that provides functionality through color, grayscale or monochrome displays and through pixel graphics. The PanelView Standard 300 is available in several varieties of sizes and configurations to meet specific application requirements.
VICPAS supply  2711-K3A5L1K Panelview 300 membrane keypad switch. All of them with VICPAS 180 days warranty and support Urgent Worldwide Shipping.
All these variations improve operator productivity and simplify the programming process. The 2711-K3A5L1K has an Operator keypad input with eight function keys and an LCD monochrome color display, with an LED backlight. It has a display dimension of 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64, and the LED backlight has a standby life of 100,000 hours. The 2711-K3A5L1K comes with an irreplaceable battery and a runtime application memory of 170 KB. It runs on a PanelBuilder32 software. It has a DH-485 (RS-232) communication port and supports an ATA Memory card. The input voltage of the 2711-K3A5L1K is between 18 to 32 Volts DC (24 Volts DC nominal), with a maximum power consumption of 10 Watts (0.42 amps at 24 Volts DC).
With a weight of 673 grams (1.48 pounds,) the 2711-K3A5L1K has a dimension of 197 x 140 x 82 millimeters (7.76 x 5.53 x 3.21 inches) (length, breadth, and height). The 2711-K3A5L1K’s operating temperature is between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), and its storage temperature is between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit), and a working relative humidity range from 5 to 95% noncondensing at 0-55 degrees Celsius (32-131 degrees Fahrenheit) working temperature. It has a Shock rating of 30g and operational vibration of 2g.

  Contact Best Price


The table below describes the parameters of the 2711-K3A10L1 PanelView 300 membrane keypad swtich.

Part Number : 2711-K3A10L1
Product Line:PanelView 300
Screen diagonal3 in
Warranty: 6 mouths Warranty
Input Power24 VDC
Software:Panelbuilder 32
Mounting position: vertical
Design as touch screen: No
Keyboard fonts:US English
Firmware 4.00-4.48

Related PanelView 300 Series Part No. :

PanelView 300 Description Inventory status
2711-K3A10L1 PanelView 300 Membrane Keypad Swtich In Stock
2711-K3A17L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-K3A2L1 Allen Bradley PanelView 300 Keypad Swtich In Stock
2711-K3A5L1 PanelView 300 Membrane Keypad Keyboard Available Now
2711-K3A5L1K Allen Bradley Panel View 300 HMI Parts Repair In Stock
2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-M3A19L1 Allen Bradley PanelView 300 Micro Operator Interface Parts Available Now
Panel View 300 Description Inventory status


Question:How many function keys are on the 2711-K3A5L1K membrane keypad?

Answer:The 2711-K3A5L1K PanelView 300 Terminal has 8 keypad function keys.

Question: WDoes the 2711-K3A5L1K PanelView 300 Terminal have a replacement backlight?

Answer:No, the 2711-K3A5L1K PanelView 300 Terminal's backlight is non-replaceable.

Question: What is the 2711-K3A5L1K PanelView 300 HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
