2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad

2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad

2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad
2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad
CategoriesPanelview 300
BrandVICPAS
Model2711-M3A18L1
BrandAllen Bradley
Warranty6 Months
Product LinePanelView 300
Size3 Inch
SupplyPanelView 300 Membrane Keypad
model2711-M3A18L1
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Download DOCpdf icon
Update TimeApr 22,2024
Detail Information

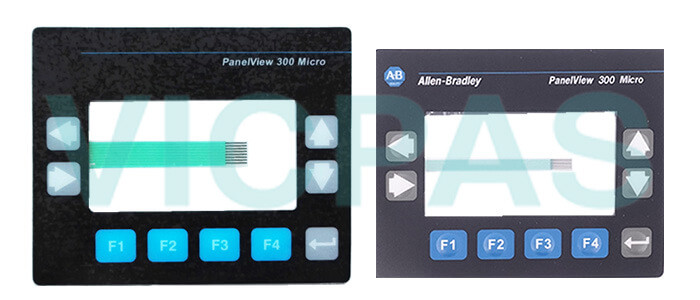

2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad, LCD Display Panel, Housing, Gasket Repair

Order each part separately is available

 2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad, Plastic Body Cover, LCD Display Panel, Gasket Repair Replacement

The 2711-M3A18L1 is a discontinued Allen-Bradley PanelView Standard 300 Micro Terminal. It is an electronic operator interface solution that provides functionality based on color, grayscale, or monochrome display and has pixel graphics capabilities. The PanelView Standard 300 is available in several sizes and configurations to meet application requirements. All these variations improve operator productivity and simplify programming.

The 2711-M3A18L1 PanelView Standard 300 Micro comes with an operator input keypad with four function keys and an LCD monochrome color display that has an LED backlight with a standby life of 100,000 hours. Its display dimension is 73 x 42 millimeters (2.87 x 1.67 inches), and a display resolution of 128 x 64.

VICPAS supply 2711-M3A18L1 Panelview 300 membrane keypad switch, Plastic Shell, LCD Display, Gasket. All of them with VICPAS 180 days warranty and support Urgent Worldwide Shipping.
The 2711-M3A18L1 PanelView Standard 300 Micro comes with an irreplaceable battery and a runtime application memory of 170 KB that runs on PanelBuilder32 software. It has an RS-232 (DF1) communication port. The 2711-M3A18L1 PanelView’s input voltage is between 11 to 30 Volts DC (24 Volts DC nominal), with a power consumption of 25 Watts max (0.105 amps at 24 Volts DC).

The approximate weight of the 2711-M3A18L1 PanelView Standard 300 Micro is 284 grams (10 ounces), and it has a dimension of 133 x 111 x 48 millimeters (5.23 x 4.38 x 1.87 inches) (length, breadth, and height). The 2711-M3A18L1 PanelView Standard 300 Micro has an operating temperature between 0 and 55 degrees Celsius (32 and 131 degrees Fahrenheit), a storage temperature between -20 and 85 degrees Celsius (-4 and 185 degrees Fahrenheit) and a working relative humidity range from 5-95% noncondensing at 0 to 55 degrees Celsius (32 to 131 °F) working temperature. It has a Shock rating of 30 g and operational vibration of 2 g.





Specifications:

The table below describes the parameters of the 2711-M3A18L1 PanelView 300 membrane keypad switch.

Part Number : 2711-M3A18L1
Product Line: PanelView 300
Screen diagonal 3 in
Warranty: 6 mouths Warranty
Input Power 24 VDC
Software: Panelbuilder 32
Mounting position: vertical
Design as touch screen: No
Keyboard fonts: US English
Firmware 4.00-4.48


Related PanelView 300 Series Part No. :

PanelView 300 Description Inventory status
2711-K3A10L1 PanelView 300 Membrane Keypad Switch In Stock
2711-K3A17L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-K3A2L1 Allen Bradley PanelView 300 Keypad Switch In Stock
2711-K3A5L1 PanelView 300 Membrane Keypad Keyboard Available Now
2711-K3A5L1K Allen Bradley Panel View 300 HMI Parts Repair In Stock
2711-M3A18L1 PanelView 300 Membrane Keyboard Keypad Available Now
2711-M3A19L1 Allen Bradley PanelView 300 Micro Operator Interface Parts Available Now
Panel View 300 Description Inventory status

FAQ:

Question:How many function keys are on the 2711-M3A18L1 membrane keypad?

Answer:The 2711-M3A18L1 PanelView 300 Terminal has 8 keypad function keys.


Question: WDoes the 2711-M3A18L1 PanelView 300 Terminal have a replacement backlight?

Answer:No, the 2711-M3A18L1 PanelView 300 Terminal's backlight is non-replaceable.


Question: What is the 2711-M3A18L1 PanelView 300 HMI parts price?

Answer: Submit a fast quote, send VICPAS an email for best price.
