2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film

2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film

2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film
2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film2711P-T7C6D7 PanelView Plus 700 Touch Screen Protective film
CategoriesPanelView Plus 700
BrandVICPAS
Model2711P-T7C6D7
BrandAllen Bradley
Warranty365 Days
Product LinePanelView Plus 700
Size7 Inch
SupplyPanelView Plus 700 Touch Overlay Case LCD Repair
Parts2711P-T7C6D7 LCD Housing Touch Film
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update TimeMar 29,2024
Detail Information

2711P-T7C6D7 PanelView Plus 700 Touchscreen Film Enclosure LCD Repair Replacement

Order each part separately is available

2711P-T7C6D7 PanelView Plus 700 Touch Screen Panel Protective film LCD Case Label Gasket Repair Replacement

VICPAS supply Panelview Plus 700 2711P-T7C6D7 protective film touchscreen Case LCD Display Label Gasket for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.


The discontinued Allen Bradley Panelview Plus 700 2711P-T7C6D7 is an operator terminal that enables the user to interface with their machine. This HMI has a 6.5 in. Color Display. This Panelview allows the user to connect using FactoryTalk View Machine Edition software and a DH+ and DH-485 communication port with a 1770-CD and 1761-CBL-ASO3 communication cable(s). The user is able to control the HMI using the Touchscreen to input information and data. This unit is powered using 18-32 VDC power. This unit has the following internal memory: 256 MB. If applicable this unit has an internal backlight replacement part number of 2711P-RL7C2. The approximate shipping weight and dimensions are 8 lbs. and 14 x 11 x 8 in. The most common Series are: Series A, B, C, D, E, F, G and the most common firmware is not applicable. The Data Highway Plus terminals are capable of point-to-point communication with a single controller, as well as network communication with multiple controllers over an Allen-Bradley DH+ network. Direct access to controller data files minimizes ladder logic. Application files are easily downloaded or uploaded using PanelBuilder32 over the DH+ network, or directly via the on-board RS-232 printer port, or with a PC memory card. Application files are easily downloaded or uploaded using PanelBuilder32 over the DH + network or directly via the on-board RS-232 printer port. The PC memory card interface can also be used.




Specifications:

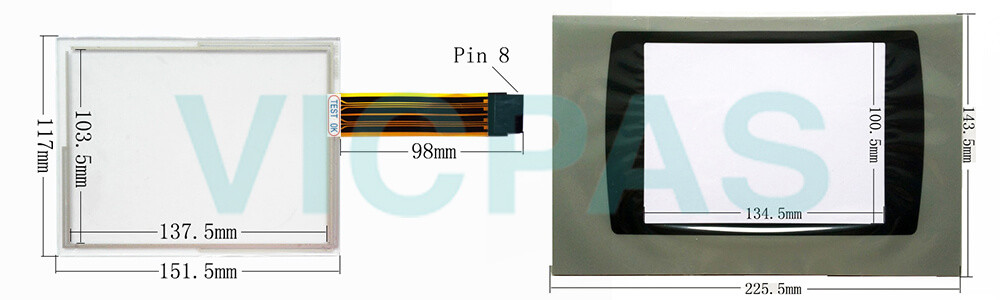

The table below describes the parameters of the 2711P-T7C6D7 PanelView Plus 700 Touchscreen Panel Glass Protective Film.

Part Number: 2711P-T7C6D7
Product Line: PanelView Plus 700
Screen Diagonal: 7 in
Warranty: 365 Days Warranty
Input Power: 24 VDC
Software: Panelbuilder 32
Mounting Position: vertical
Input Type: Touchscreen
Communication: Remote I/O and RS-232 Printer Port
Firmware: 4.00-4.48


Related PanelView Plus 700 Series Part No. :

PanelView Plus 700 HMI Description Inventory status
2711P-T7C6B1 PanelView Plus 700 Touch Screen Panel Glass Overlay LCD Display HMI Case In Stock
2711P-T7C6B2 PanelView Plus 700 Touch Panel Glass Front Overlay LCD Housing Available Now
2711P-T7C6D1 Allen Bradley Panel Plus 700 Touchscreen Protective Film LCD Screen Cover In Stock
2711P-T7C6D2 Allen Bradley Panel View Plus 700 Touch Screen Overlay LCD Plastic Case In Stock
2711P-T7C6D6 PanelView Plus 700 Touch Panel Front Overlay LCD Display Case Body In Stock
2711P-T7C6D7 PanelView Plus 700 Touch Panel Protective Film LCD Housing In Stock
2711P-T7C15A1 PanelView Plus 700 Touch Membrane Overlay LCD Panel Plastic Shell Available Now
2711P-T7C15A2 Allen Bradley PanelView Plus 700 HMI Touch Screen Film LCD Display Cover In Stock
2711P-T7C15A6 PanelView Plus 700 Touchscreen Membrane Switch Overlay LCD Screen Case Available Now
2711P-T7C15A7 Allen Bradley Panel View Plus 700 HMI Panel Glass Overlay LCD Screen Front Cover In Stock
2711P-T7C15B1 Allen Bradley Panel View Plus 700 Touchscreen Overlay LCD Plastic Shell In Stock
2711P-T7C15B2 PanelView Plus 700 Touch Glass Front Overlay LCD Display Cover In Stock
2711P-T7C15D1 PanelView Plus 700 Touchscreen Overlay LCD Display Cover Available Now
2711P-T7C15D2 Allen Bradley PanelView Plus 700 Panel Glass Front Overlay LCD Panel Housing In Stock
2711P-T7C15D6 PanelView Plus 700 Touchscreen Protective Film LCD Display Housing Available Now
2711P-T7C15D7 Allen Bradley PanelView Plus 700 HMI Touch LCD Screen Front Film Plastic Shell In Stock
AB PanelView Plus 700 Description Inventory status

FAQ:

Question: What is the voltage rating of the 2711P-T7C6D7 Allen Bradley ?

Answer: The 2711P-T7C6D7 has a voltage rating of 85 to 264 Volts AC.


Question: What is the 2711P-T7C6D7 PanelView Plus 700 touch screen panel price?

Answer: Submit a fast quote, send VICPAS an email for best price.


Question: What type of display does the Allen Bradley Panelview Plus 700 2711P-T7C6D7 have?

Answer: The 2711P-T7C6D7 touchscreen has a multicolor LCD as its display type.


Question: What is the input type of PanelView Plus 700 2711P-T7C6D7?

Answer: The input type of 2711P-T7C6D7 is a touchscreen. The touchscreen of PanelView Plus 700 is a color display that offers an analog resistive touch screen for touch input.


Question: Does Allen Bradley 2711P-T7C6D7 have extended features?

Answer: This PanelView Plus 700 2711P-T7C6D7 does not have extended features.
