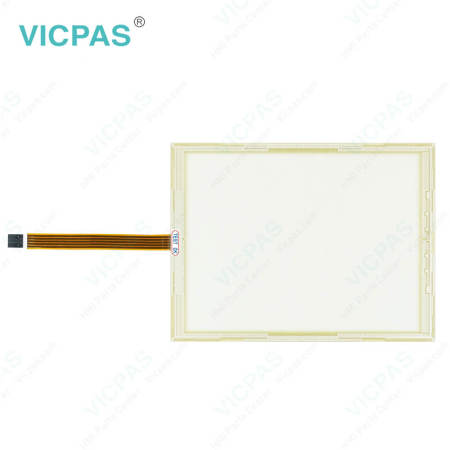

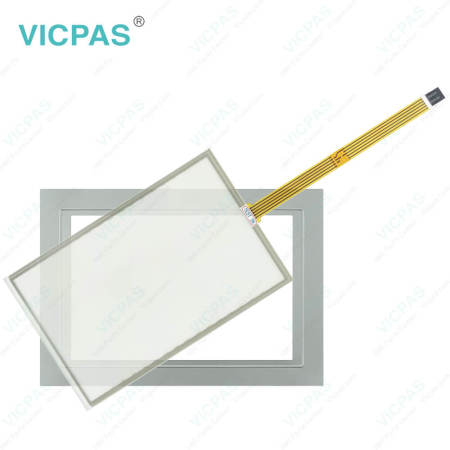

B&R 5AP1120.101E-000 Touch Digitizer Glass

B&R 5AP1120.101E-000 Touch Digitizer Glass

B&R 5AP1120.101E-000 Touch Digitizer Glass
CategoriesAutomation Panel
BrandVICPAS
Model5AP1120.101E-000
Touch screen panel typeResistance touch screen
Size10.1 inch
BrandB&R
Warranty1 Year VICPAS Warranty
ModelB&R Automation Panel 1000 5AP1120.101E-000
ShippingDHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
FOB portGuangzhou, Shenzhen, Hongkong
Terms of PaymentWestern Union, T/T, PayPal, Credit Card
Update Time2022/7/7
Detail Information

B&R Automation Panel 1000 5AP1120.101E-000 Touch Panel Repair Replacement

Order each part separately is available

Automation Panel 1000 5AP1120.101E-000 Touchscreen Glass

AP1000 5AP1120.101E-000 panels form the basis for the Automation Panel 1000, Panel PC 900, Panel PC 2100, Panel PC 2200 and Panel PC 3100 system families. Different display diagonals and touch screen technologies as well as panels with touch screen and keys are available. The 5AP1120.101E-000 panels are installed using retaining clips or clamping blocks. Panels 5AP1120.101E-000 can only be operated as a complete system in combination with a link module (Automation Panel 1000) or CPU board and system unit (Panel PC).


5AP1120.101E-000 Link modules have various graphics interfaces and connections. An Automation Panel 5AP1120.101E-000 is put together by installing a link module onto a panel. Automation Panel 1000 devices with 10.4", 12.1" (4:3 format only), 15" (4:3 format only) and 19" diagonals are equipped with a front USB 2.0 interface. The 5AP1120.101E-000 USB In interface is a USB 2.0 type B interface that is used to transfer USB data. It must be connected to a USB interface on the output device (e.g. B&R industrial PC) if DVI operation or SDL operation with a USB type A/B cable was chosen as the transfer method. If the Automation Panel 1000 5AP1120.101E-000 interface is connected to an output device (e.g. B&R industrial PC), then USB 2.0 transfer rates are possible on the USB1 and USB2 interfaces.



  Contact Best Price


Specifications:

The table below describes the parameters of the 5AP1120.101E-000 Automation Panel 1000 Touchscreen Panel.

Part Number : 5AP1120.101E-000
Product Line:Automation Panel 1000
Screen diagonal10.1 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 50°C


Related Automation Panel 1000 Series Part No. :

Automation Panel 1000 Description Inventory status
5AP1120.0573-000 B&R Automation Panel 1000 Touch Screen In Stock
5AP1151.0573-000 B&R AP1000 Membrane Switch Touch Panel Repair In Stock
5AP1120.0702-000 B and R Automation Panel 1000 Touchscreen Available Now
5AP1120.0702-I00 B&R Automation Panel 1000 Touch Screen Glass Available Now
5AP1120.101E-000 Automation Panel 1000 HMI Touch Screen Panel In Stock
5AP1120.1043-000 B&R Automation Panel 1000 Touch Digitizer Glass In Stock
5AP1120.1043-C01 B&R AP1000 Front overlay Touch Screen Monitor In Stock
5AP1120.1043-C04 AP1000 B and R HMI Panel Glass Replacement Available Now
5AP1120.1044-C02 B&R Automation Panel 1000 Touch Screen Monitor In Stock
5AP1125.1043-I00 Automation Panel 1000 B and R HMI Touch Screen Available Now
5AP1125.1044-I00 B&R Automation Panel 1000 Touch Screen Panel In Stock
5AP1180.1043-000 B&R Automation Panel 1000 Touch Digitizer Repair In Stock
B and R AP 1000 Description Inventory status

B&R Automation Panel 1000 Manuals PDF Download:

  • B&R Automation Panel 1000 User's Manual
  • B&R Automation PC 2100 User's Manual
  • B&R Panel PC 2100 Built-in Devices User's Manual
  • B&R Panel PC 2200 Built-in Devices User's Manual
  • B&R Panel PC 3100 Built-in Devices User's Manual

  • FAQ:

    Question: What causes Automation Panel 1000 B&R 5AP1120.101E-000 screen burn-in?

    Answer:
    • Static images
    • No screensaver
    • Sharp transitions in contrast (e.g. black/white)
    • High ambient temperatures
    • Operation outside of specifications


    Question:How can the B&R AP1000 5AP1120.101E-000 service life of the backlight be extended?

    Answer:
    • By setting the display brightness to the lowest value that is still comfortable for the eyes
    • By using dark images
    • By reducing the brightness by 50%, which can result in an approximately 50% increase in the half-brightness time

    Common misspellings:

    5AP110.101E-000

    AP1120.101E-000

    5APll20.101E-000

    5AP1120.1O1E-000

    5AP1120.1101E-000
